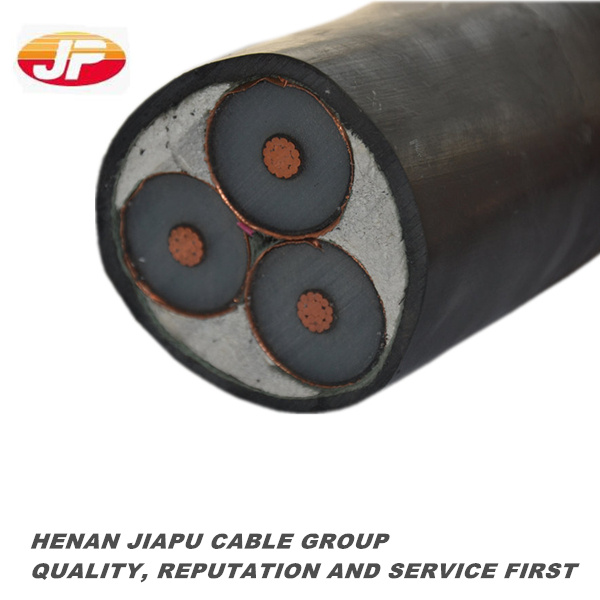

XLPE/Swa/PVC Power Cable
| Price: |
US $ 1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
1*50 1*70 |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Brand: |
Jiapu |
Product Description
1. Basis information:
U0/U: 12/20KVStandard applied: ISOMax. working temp.:70°CConductor: Class 1/2 plain annealed copper wires, solid or strandedInsulation: XLPECross section area: 0.75~630sqmmCore Color: All colorsPackage: 100 meters per roll or as per requirementCertification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.OEM can be availableCZ cable has very good international sales, enjoying good reputation based on top quality and competitive price and best service.Flame retardant or fire resistance or Low Smoking and Halogen free or other property can be available
2.LSZH Power cables' standard
GB/T12706.1-2008 " Rated and below voltage 35KV copper and aluminum plastic insulated power cable";
3. Using characteristics
a.The cable conductor's long term working temperature can't be more than 70 DEG c.
b.The cable conductor's temperature can't be more than 160 DEG c when it was short circut (the longest keeping time can't be more than 5 seconds).
c.The envionment can't below zero DEG c when the cable used.
4.Application
The cable is suitable for supply, distribution and underground rated voltage 0.6/1KV. For laying indoors, in tunnel, cable trench and a pipe, cable unable to bear external mechanical force, cable laid underground be able to bear external mechanical force, but can't under external pressure.
Specifications:
| YJV | Copper Conductor, XLPE Insulated, PVC Sheathed Power Cable | For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
| YJLV | Al. Conductor, XLPE Insulated, PVC Sheathed Power Cable |
| YJY | Copper Conductor, XLPE Insulated, PE Sheathed Power Cable | For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
| YJLY | Al. Conductor, XLPE Insulated, PE Sheathed Power Cable |
| YJV22 | XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable | Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
| YJLV22 | Al. Insulated,Steel Tape Armored,PVC Sheathed Power Cable |
| YJV32 | Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable | Apply to shafts,water and soil,able to bear the larger positive pressure. |
| YJLV32 | Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable |
| YJV42 | Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable | For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force. |
| YJLV42 | Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable |
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
