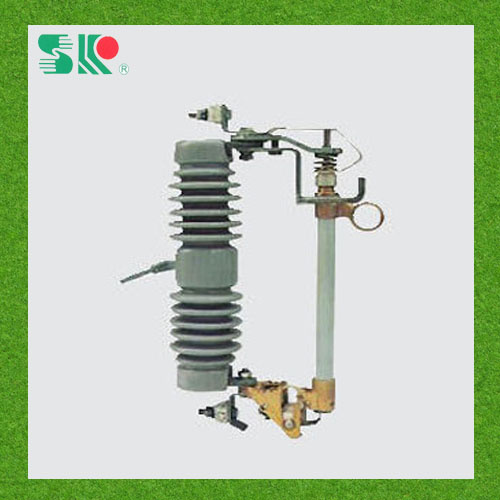

Xm - 4 Type Cascade Fuse 15kv - 27kv

Name: Xm - 4 Type Cascade Fuse 15kv - 27kv
Brand: all-electronics-online.com
SKU: 737630795
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Ceramics
Rated Voltage:	15kv-27kv
Delivery:	as Required
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	as Picture Show

Product Description

Product Description

Type: XM - 4

Rated Voltage ( kV ): 15

Rated Current ( A ): 100 200

Breaking Current ( A ): 6300 12500

Impulse Voltage ( BIL ): 125

Power - Frequency Withstand Voltage ( kV ): 45

Leakage Distance ( mm ): 330

Weight ( kg ): 9 9.5

Dimensions ( cm ): 49*31*12.5

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
