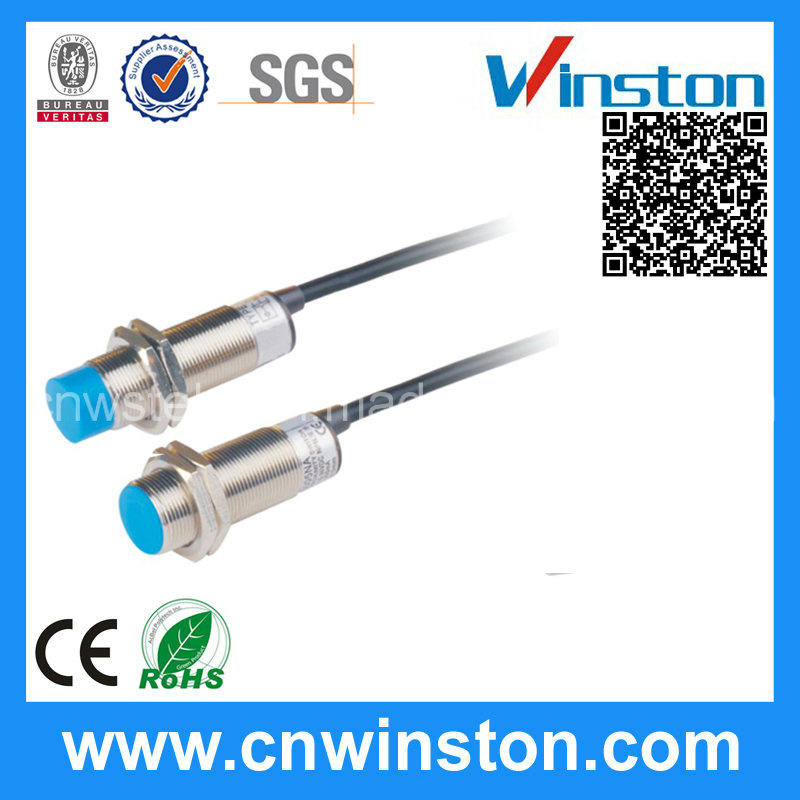

Xm18 Induction Displacement Volume Linear Sensor with CE
| Price: |
US $ 6.2-6.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
XM18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Antistop: |
Induction Linear Sensor |
| Workmanship: |
The Exquisite German Technology |
| Protection Grade: |
IP54 |
| Shell Material: |
Plastic,.Metal |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Linear |
| Principle: |
Inductive Linear |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description
Product Description:
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service lifeTechnique parameter: 1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;H: High temp resistance; R: Ring type)Work principle of inductive proximity switch with analog quantity
Installation and connection
Output characteristic diagram
| Detectable object | Metal |
| Detection distance | Flush type:5mm | Non-Flush:8mm |
| Model available | Current type | XM18-3005PMI | XM18-3008PMI |
| Voltage type | XM18-3005PMU | XM18-3008PMU |
| Voltage range | 15-30VDC |
| at the time of detection | ≤200mA^<4mA |
| Consumption | at the time of non-detection | ≤20mA |
| Loading resistance | Current type | 0~300Ω |
| Voltage type | ≥2.2KΩ |
| Output | Current type | 4~20mA |
| Voltage type | 0-5V/O-10V |
| Voltage fluctuation | ≤5% |
| Output signal | PNP Simulation |
| Linear deviation | ±5% |
| Ambient temperature | 25~+70ºC |
| Shell material | Plastic,Metal |
| Protection grade | lp54 |
Why choose us?
1.Professional manufacture
2.With complete varieties
3.Accept OEM
4.We have completely sales service system, ensure every detail is going smooth
5.We have new designed products each year by our R&D Department
6.Perfect testing system ensure each product is qualified
Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.
Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.
Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.
Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.
Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.
Our advantage:
1. Quality is our culture.
2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.
3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!
5. For every customer, we will choose the best fit material, and also innovative material for their products!
6. We can according to any customers' design to do sample of them!
7. We are manufacturer, factory, so we have the ability of mass production!
8.24*7 service, professional sales group.
Technical Support:
Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!
Besides, for some products material are all use imported parts.
So the quality and safety are guaranteed!
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!
Transportation service:
We can guarantee the fast and safe delivery to the customers' hand.
