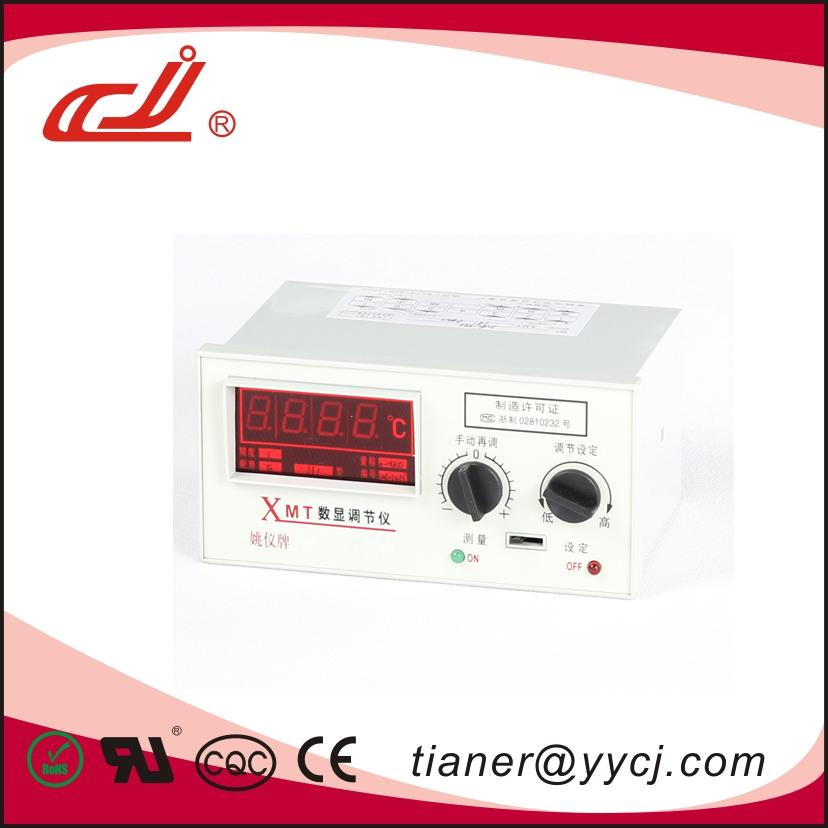

Xmt-121/2 Cj Digital Display Temperature Meter

Prod Model:	Xmt-121/2
Size:	160*80
Input Type:	Thermocople or Thermresistance
Working Environment:	0~50c, Relative Humidity Less Than 85%
Operational Power Supply:	85VAC-242VAC,50Hz/60Hz
Power Consumption:	Less Than 3W

Product Description

XMT* digital temperature meter
Display method: LED display
Basic error: Less than 1.0%FS
Output contact capacity: AC 220V 3A


XMT* digital temperature meter can be combined with diverse thermocouples to render an automatic measuring and control over the temperature. The adjusters therein serve for the entire measurement distance indication and full range regulating. The adjuster is the on-off regulating method. The adjusters have functions of the cold end automatic compensation and couple-breakage protection. The adjusters are nice-looking in style, easy for use cheap in price, providing a relatively high comparability between performance and price, widely used in the plastic machinery, packing machines, food-processing machinery as well as the light industrial, textile printing and dyeing industries which require the control on the temperature.

Features:

1,Display method: LED display directly
2,Basic error:≤1.0%FS±1B
3,Fixed point error:≤1.0%FS
4,Cold end compensating deviation:0~50ºC deviation< 2ºC
5,Time proportional adjustment:scope 1%~3%,period:30S±10S
6,Output contact capacity:AC 220V 3A(resistance load)
7,Operational Power Supply:85VAC-242VAC,50HZ/60HZ
8,Power consumption less than 3W
9,Work environment: temperature 0~50.0ºC, relative humidity< 85%RH, without corrode.

Model meaning

X M   ___    ___  -___    ___   ___   ___

               1          2             3           4          5          6

1:Display control method:"T" temperature controller;"Z" single display instrument

2:Size

Empty:160×80×50 Installation hole 152×76;        A:96×96×90   Installation hole 92×92

B:60×120×150 Installation hole 56×116;         D:72×72×110   Installation hole 68×68

E:48×96×90   Installation hole 44×92;           F:96×48×110   Installation hole 92×44

G:48×48×90 Installation hole 45×45 ;          H:80×160×150 Installation hole 76×156

3:operation display method

'1'potentiometer setting,entire measurement distance display;

'2'push-numerical code switch seeting ,entire measurement distance display.

4:master control method

'0'ON/OFF adjustment;  '1'ON/OFF differential control (dead space enlargement)

'2'2-ON/OFF adjustment;     '3'time proportional ON/OFF adjustment;   '5'Solid state relay adjustment'6mono-phase trigger adjustment ;   '7'mono-phase over zero trigger adjustment

'8'3-phase over zero trigger zdjustment ;     '9'continuous PID standard current signal output

5:an additional alarm

blank or '0':indicates no alarm             '1':upper limit touch alarm ;        '2':lower limit touch alarm ;

'3':upper,lower limit touch alarm;

6:input signal classification :

'1'thermocouple;'2'thermresistance;'3'mV signal ;  '4'resistance signal

'5'standard current signal;    '7'humidity sensor

suffix 'D'30A big power relay
