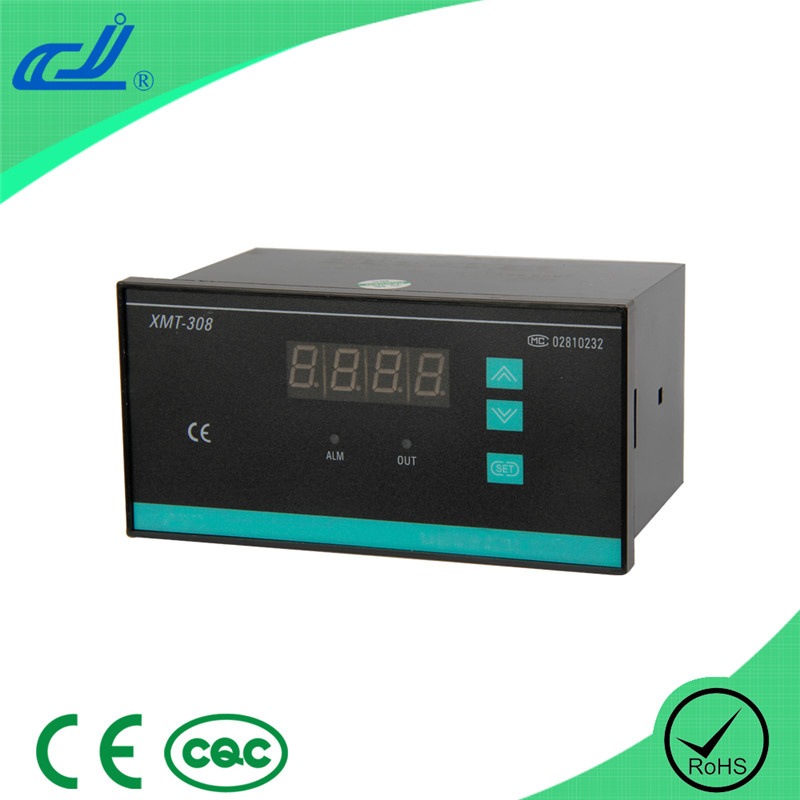

Xmt-308 Intelligent Single Row 4-LED Display Pid Temperature Controller

Prod Model:	XMT-308
Size:	160*80
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type
Usage:	Temperature Control

Product Description

Specifications

Temperature controller
Conrtol method: ON/OFF; PID
Input signal: CU50; PT; K; E; J; T
Power supply: 85-242V; 50/60HZ


XMT*308 series temperature controller are intelligence single row 4-LED display, and include on/off, PID
control, including with parameter of self-setting function and can input multi-signals.
This temperature meter are operated with 3-keys, allowing an easy inputting.



Main Technical Indexs
1) Measurement deviation: Class ± 0.5F. S± 1, additional cold end compensation Deviation± 1ºC
2) Input signal: CU50, PT100, K, E, J, T (one meter can be compatible)
3) Relay output contact capacity: 7A (resistance load)
4) Driving solid relay signal output: Driving electric current > 15mA, voltage >12V, period is 2s
5) Sampling period: 0.5s
6) Power: 85~242V, 50HZ
7) Work environment: Temperature 0~50.0oC, relative humidity≤ 85%, without corrode and strong electric radiation.
8) External dimension
160 x 80 x 85     Installation hole 156 x 76
96 x 96 x 90       Installation hole 92 x 92
72 x 72 x 90       Installation hole 68 x 68
48 x 96 x 90       Installation hole 44 x 92
96 x 48 x 90       Installation hole 92 x 44
48 x 48 x 90       Installation hole 44 x 44
80 x 160 x 850   Installation hole 76 x 156
80 x 120x 35      Installation hole 68 x 68

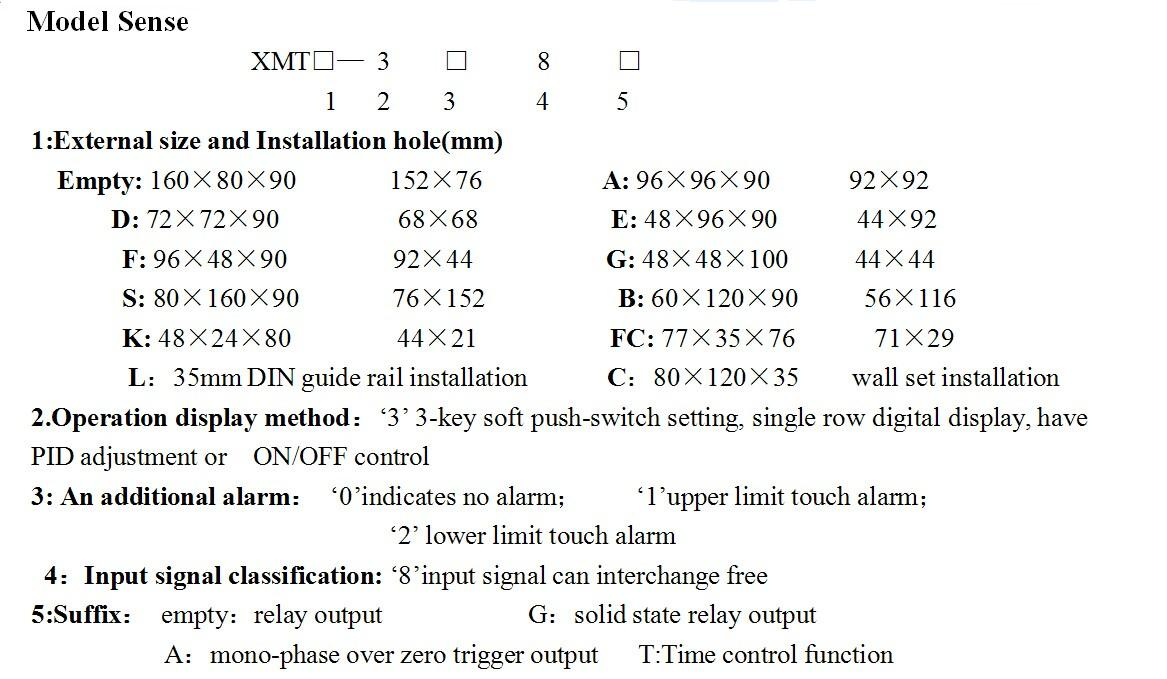

Sense of Model Code

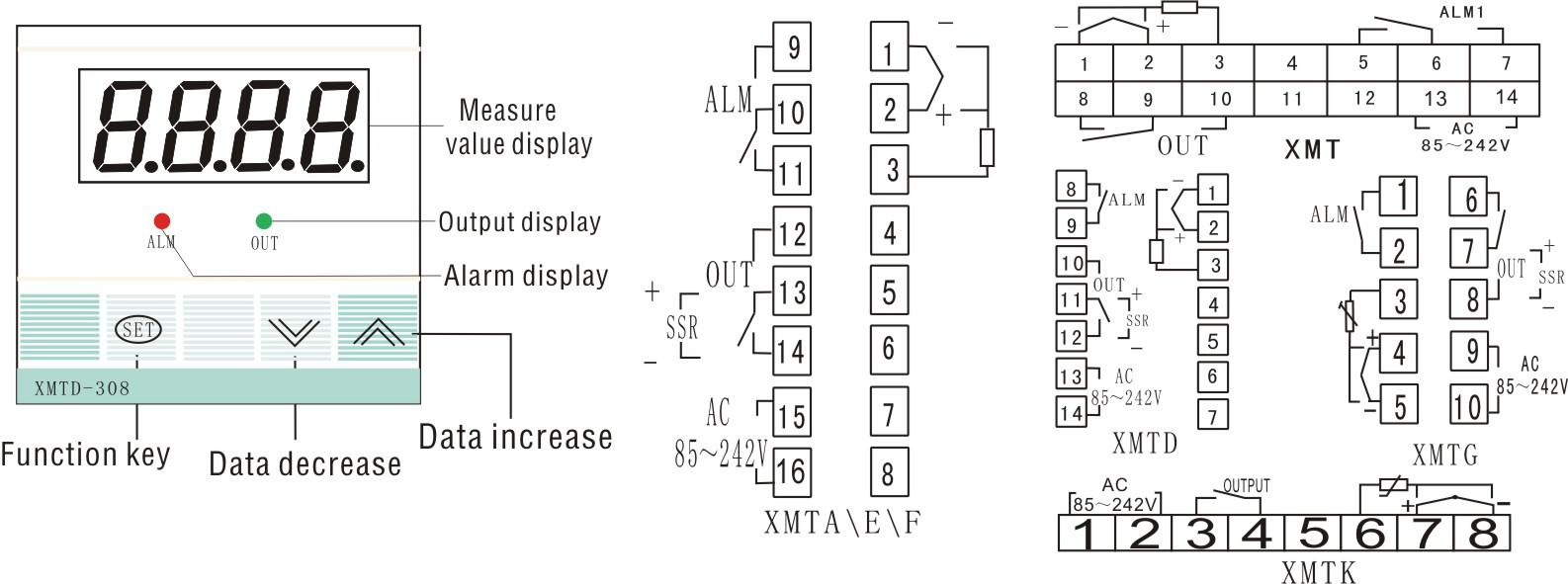

Instrument panel and connection scheme(consult)

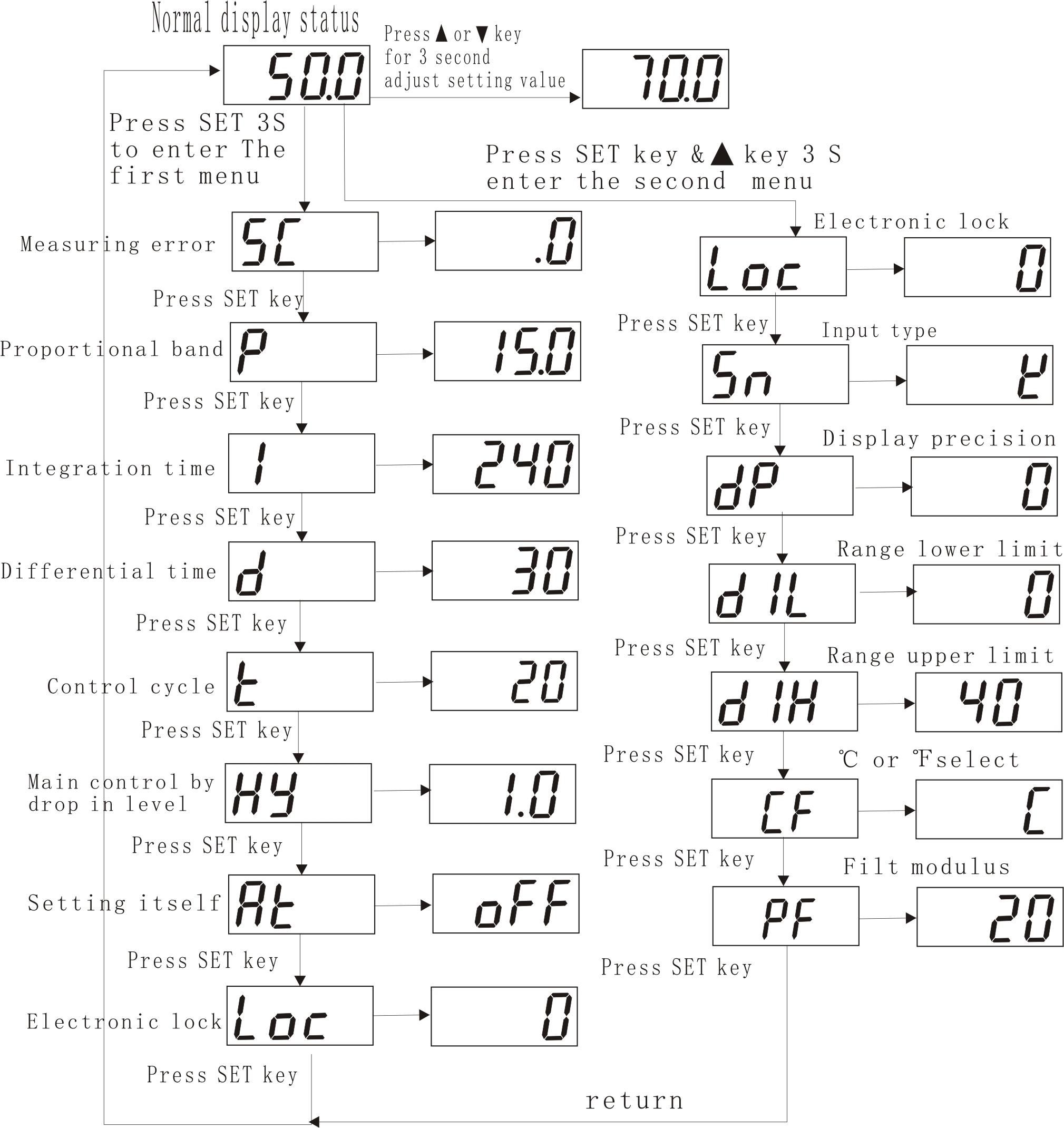

Flow chart
