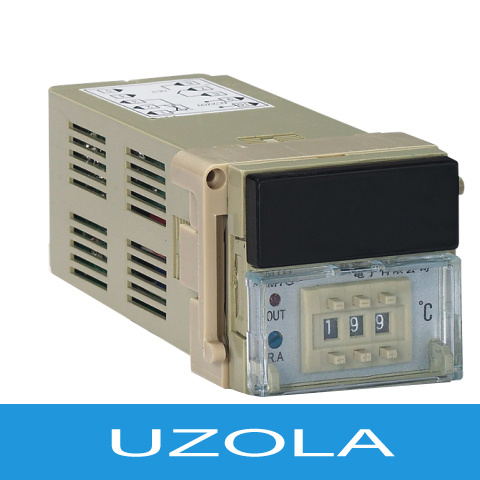

XMT Series Digital Temperature Controller

Name: XMT Series Digital Temperature Controller
Brand: all-electronics-online.com
SKU: 696897845
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	Negotiable
Trade Terms:	CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Temperature Controller

Product Description

XMT series Digital Temperature Controller compared to traditional XC series moving coil meter and TDW meter, owns merits of high precision, strong shock resistance ability, good reliability, simple installation, clear reading, no parallax and long distance observation support etc. It has two digits, three digits, time proportion type, silicon controlled concessive adjusting function, PID type etc and can be added overrun alarm function according requirement on adjusting mode and it's renewed product based on XC series product, widely used for -200ºC~1800ºC temperature measure and autocontrol of different industries such as metallurgy, textile, machinery\ oven\refrigeration chemical industry\medical treatment and so on, and also can be used forparameters measure, display and control when equipped to sensor.

Input Signal	Thermocouple (× × 1type) RTD(× × 2type)voltage (× × 3type) resistance (× × 4type)current (× × 5type)
Adjusting Mode	Two digits adjusting (× 0× type) three digits adjusting(× 2× type) time proportion adjusting (× 3× type) silicon controlled phase-shifting(× 6× type)Silicon controlled zero cross(× 7× type) silicon controlled three phases zero cross (× 8× type) PID adjusting (× 9× type)
Outline& Installing Dimension	Outline dimension 160× 80mm installing dimension 152× 76mm’
Rated Voltageof power Supply	AC220V± 10% 50/60Hz
Precision	Display precision 0.1 class, control precision may reach ± 1º C
Work Environment	temperature 0~50º C, relative humidity ≤ 85%
Output Capacity Of Contact	Relay connection point 5A 250VAC, Voltage of no connection point DC12V for SSR use
Proportion Cycle	relay: 30 secs., no connection point: 2 secs.
power Consumption	≤ 5W
Temperature Range	thermocouple 0~1800º C RTD -200~600º C
