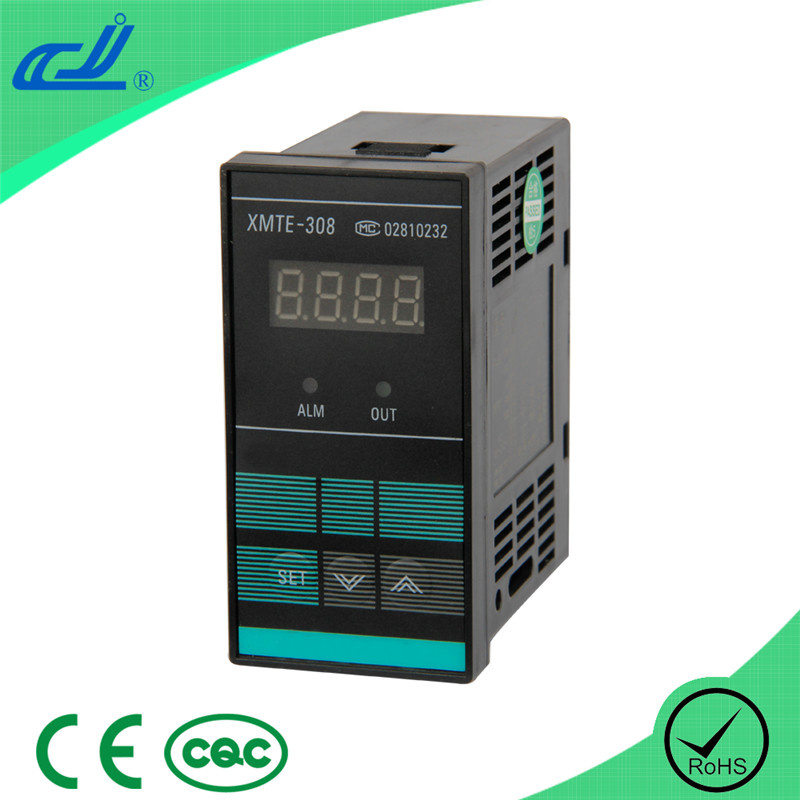

Xmte-308 Digital Temperature Controller for Automatic Heat Press Machine

Prod Model:	XMTE-308

Product Description

I. Summarize
XMT*-308 series intelligent temperature controller, is single row 4-LED display. The controller can input kinds of signals which are used interchangeably, three-button operation, adopts ON/OFF control and PID
control. It can select Fahrenheit and degree centigrade temperature display. It allows an easy parameter setting and convenient inputting, is used widely temperature automatic control systems of machinery\chemical\ceramics\light industrial\metallurgy\petrifaction and heat treatment and so on.




II. Main Technical Indexs
1. Measurement deviation: ± 0.5F@S± 1, Cold end compensating deviation± 1
2. Input type(range): CU50(-50~150.0)\PT100(-199.9~600.0)\K(-30~1300)\E(-30~700)\J(-30~900)\T(199~400)
3. Relay output contact capacity: 7A(resistance load)
4. Dring solid relay signal output: Driving electric current 15mAvoltage >12V, period is 2S
5. Driving controllable pulse output: >100mA, instantaneous big is 1A
6. Power supply: AC90V~242V, 50Hz
7. Work environment: Temperature 0~50.0, relative humidity≤ 85%RH, without corrode and strong electric radiation.
8. External dimension: 48× 96× 90 Installation hole 44× 92




Sense of Model Code

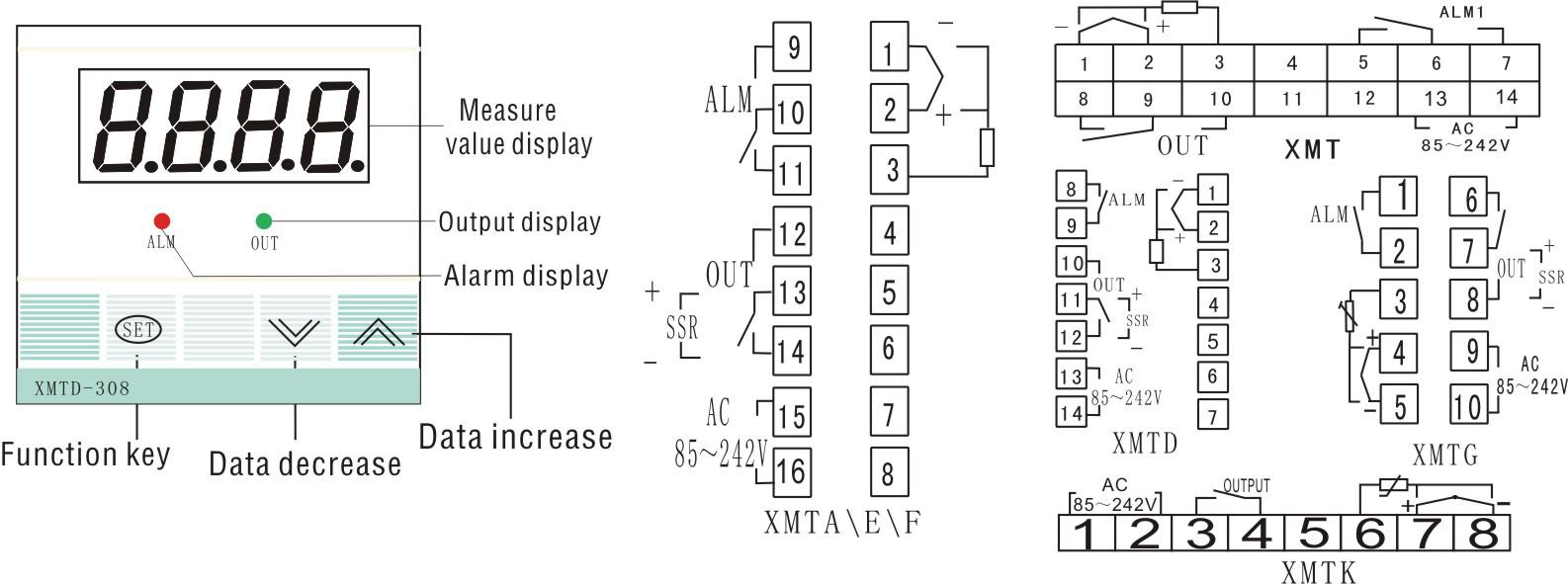

Instrument panel and connection scheme(consult)

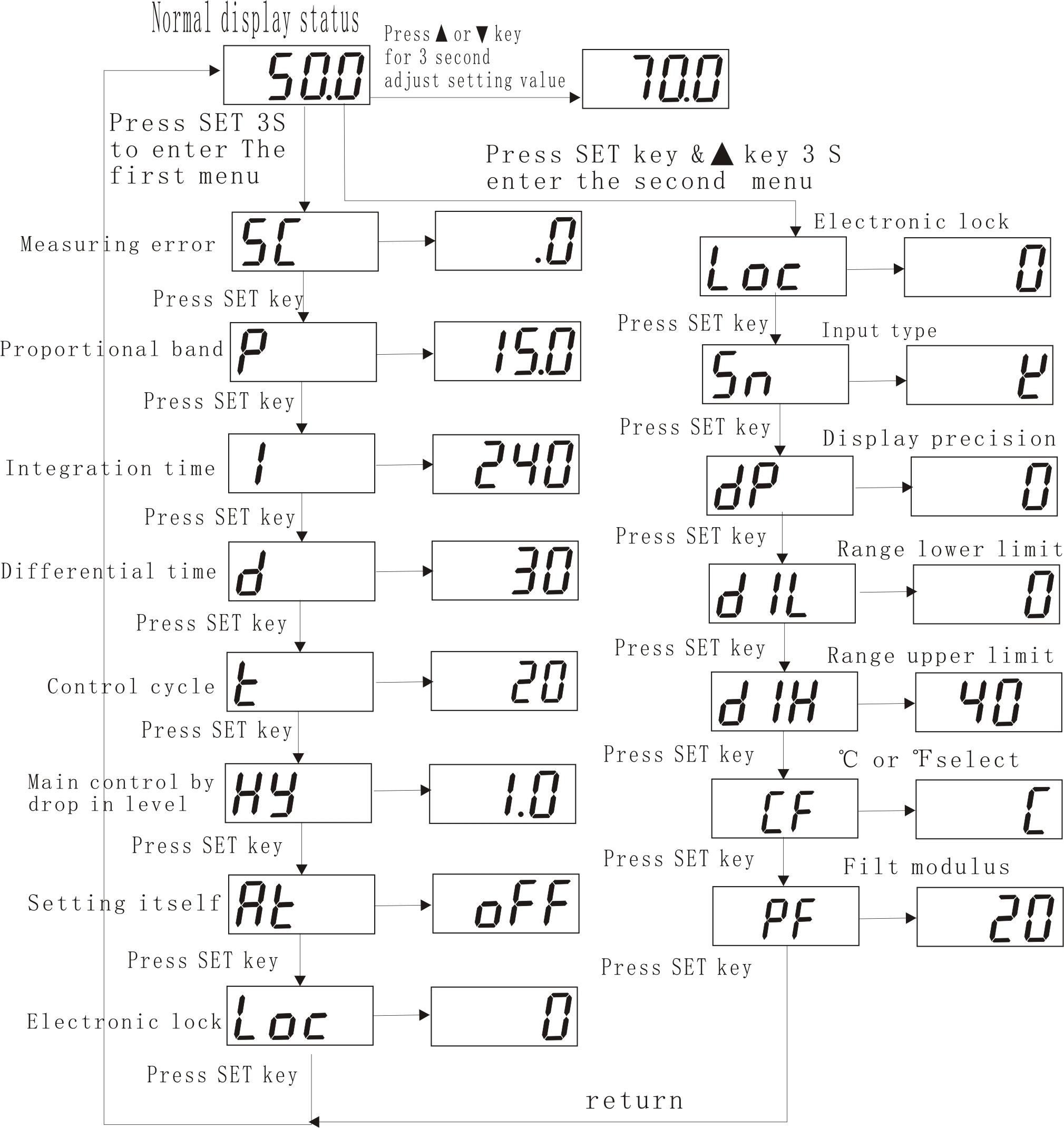

Flow chart
