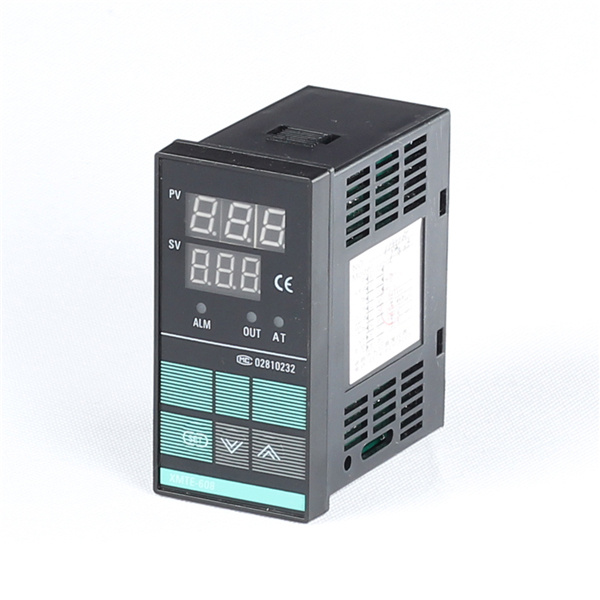

Xmte-608 LED Pid Digital Temperature Controller 220V

Prod Model:	XMTE-608
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	48*96
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Specifications

Temperature controller
On/off
PID control
Temperature meter are dual row 3-LED display
Input: CU50; PT; J; E; K; T



XMT*608 series intelligent temperature controller, is double row 3-LED display and include on/off, PID

control, including with parameter of self-setting function. This temperature meter respectively display

temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is

time temperature control, respectively display temperature measurement value (PV) and running time

count down (SV), and also provide kinds of time control method selection; The controller can input kinds

of signal which are used interchangeably, it adopt ON/OFFP=0PID control, allowing an easy parameter

setting and convenient inputting, is widely used over temperature automatic control systems of

machinerychemicalceramicslight industrialmetallurgypetrifaction and heat treatment and so on.

Main technical Indexes

1, Measurement deviation: ± 0.5%F· S± 1B, Cold end compensating deviation≤ ± 2C

2, Input(can be selected): CU50(-50~150), PT100(-199~600), K(-30~999),

E(-30~700), J(-30~900), T(199~400)

3, Relay output contact capacity: AC220V 5A(resistance load)

Period 2~120s can be adjusted.

4, Drivng solid relay signal output: Driving electric current >15m A voltage >9V,

Period is 2S

5, Power: AC85V~242V, 50/60HZ

6, Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong

electric radiation.

Instrument panel(consult)

Connection scheme(consult)


Model sense
                 XMT(    )-6   (    )     8     (   )
                        1          2     3     4        5
1:External size and Installation hole(mm)
Empty   160×80×90    152×76         A   96×96×90   92×92
D   72×72×90     68×68         E    48×96×90   44×92
F   96×48×90    92×44          G    48×48×100   44×44
S   80×160×90   76×152      B    60×120×90   56×116
C   80×120×35   wall set installation
2. Operation display method:'6': 3-key gentel push-switch setting, double row digital display, have PID adjustment
3. An additional alarm:
Blank or '0': indicates no alarm;'1': High limit touch alarm;'2': low limit touch alarm
4. Input signal classification: '8' : Input signal can interchange free
5. Suffix:  None: relay output           G: solid state relay output
