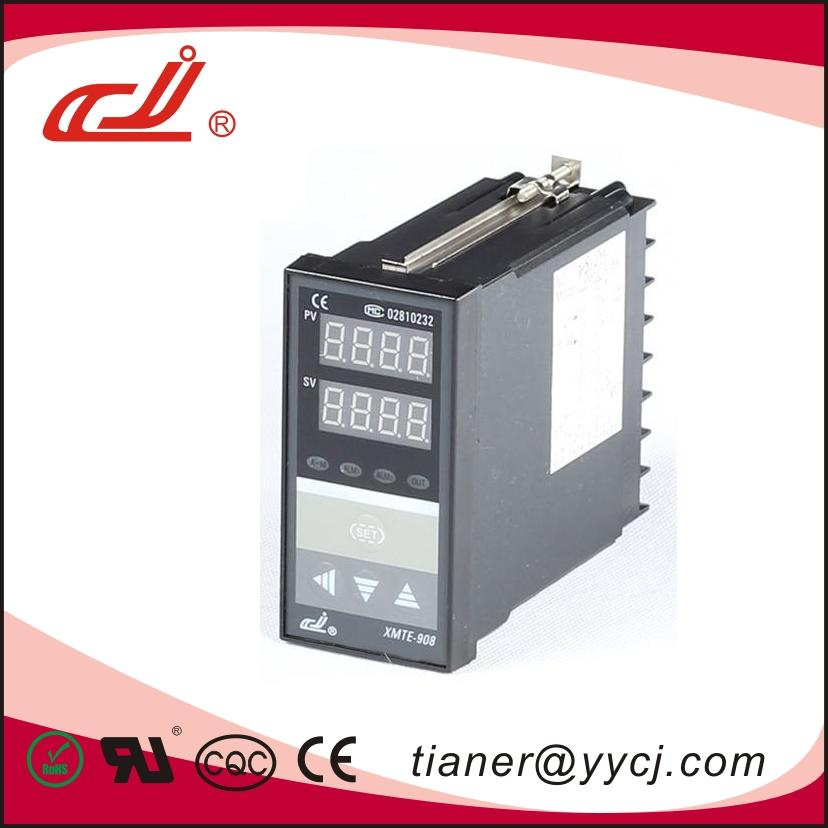

Xmte-918t Temperature and Time Controller

Prod Model:	XMTE-918T
Control Method:	Pid, on/off
Size:	48*96
Theory:	Temperature Controller
Sampling Cycle:	0.5s

Product Description

I. Survey
XMT*-918T series intellectual ability temperature regulator series controlled by single chip, free input multi-signals of thermocouple, ON/OFF control and PID control, besides, it has time function, you can adjust time unit hour and minute or minute and second. They are widely used in the automatic control system of the temperature, chemical, ceramics, light, metal, petrochemical and heat treatment industry.

II. Main technical specification
1. Basic deviation: ± 0.5%F. S± 1
2. Cold end compensating deviation: ≤ ± 2.0
3. Sampling cycle: 0.5s
4. Time range: 1S~59.59H
5. Time precision: Class 0.005
6. Control cycle: Relay output 2~120s and can be adjusted
7. Relay output contact capacity: AC220V/5A(resistance load)
8. Power: AC85V~242V(switching supply), 50/60Hz, or the other special request.
9. Working condition: Temperature 0~50.0, relative humidity≤ 85% RH, without corrode and strong electric radiation
10: The surface dimension (mm)48× 96× 110 Installation hole 44× 92

 Product code:

                                  XMT ___   9   ___  8   ___
                                                (1)      (2)    (3)     (4)    (5)
(1) Meter faceplate and Installation dimension(mm):
Blank: 160×80×130   156×76;         A: 96×96×110     92×92;
D: 72×72×110     68×68;         E: 48×96×110      44×92;
F: 96×48×110     92×44;         S: 80×160×130     76×156;
G: 48×48×110     44×44

(2)Design serial number

(3) Alarm:
"0": no set alarm     "1or2": one alarm    "5": voice alarm
"3": two group alarm (upper limit, lower limit, positive deviation alarm and negative deviation alarm discretionary setting)

(4) Input signal:
"8": Free exchange of the input signal

(5) Control method:
Blank: Relay contact output      "A": Single-phase over-zero trigger adjustment
"A3": Three-phase over-zero trigger adjustment   "B": Single-phase shift-phase trigger adjustment
"B3": Three-phase shift-phase trigger adjustment   "C": 0-10mA or 4-20mA constant electric current output
