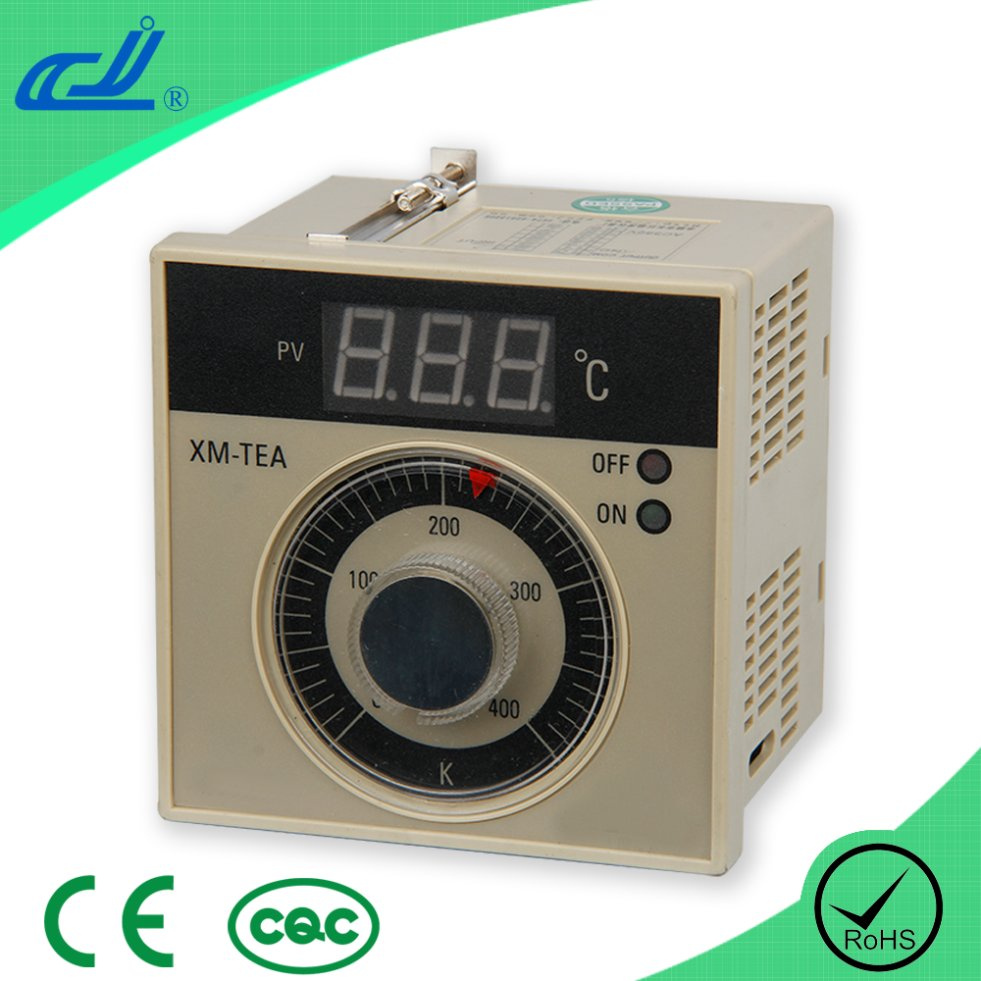

Xmtea Series Digital Temperature Adjuster

Prod Model:	XMTEA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	96*96

Product Description

XMTEA/D-1001 series temperature controller applies special technique to resist interference
And adopts digital display of measure temperature and method of ON/OFF control. It has high
Precision, good reliability, strong cushioning, easy installation and so on. This controller is widely used as
Temperature measurement and control automatically in light and heavy industry, such as, metallurgy,
Chemical, electronic, machinery, textile, plastic, refrigeration, medical treatment, electric oven and so on...

1. Display method: LED display directly
2. Basic error: ≤ 1.0%FS± 1
3. Fixed point error: ≤ 1.0%FS
4. Cold end compensating deviation: 0~50 deviation<2
5. Time proportional adjustment: Scope 1%~3%, period: 30S± 10S
6. Output contact capacity: AC 220V 3A(resistance load)
7. Power Supply: 90VAC-242VAC, 50Hz/60Hz
8. Power consumption less than 3W
9. Work environment: Temperature 0~50.0, relative humidity85%RH, without corrode.
9. Exterminal dimensions and hole size: 96*96*85 Hole size: 92*92


Method to use:

The adjuster is installed into an installation hole with a frame, the wiring modules on the back the phase is 85~220VAC input to supply the instrument. When the temperature-setting is higher than the indicated value, the general and lower voltages are connected, while general and higher voltages are disconnected with green indicator bulb lighting up and the red one turning off; the setting is lower than the actual indication, the general and lower voltages are disconnected and the general-higher voltages are connected with the red indicator bulb lighting up and the green one turning off.
