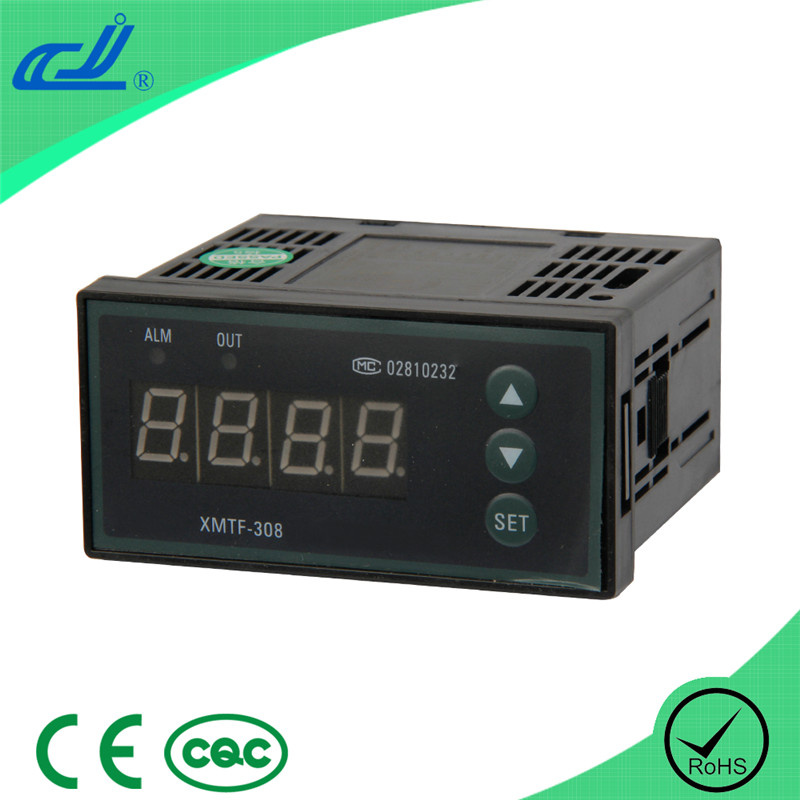

Xmtf-308 4-Digit Decimal Point Digital Temperature Control/Controller

Name: Xmtf-308 4-Digit Decimal Point Digital Temperature Control/Controller
Brand: all-electronics-online.com
SKU: 713761692
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	US $ 18.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTF-308
Size:	96*48
Usage:	Temperature Control
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Product Description
Temperature controller
Conrtol method: ON/OFF; PID
Input signal: CU50; PT100; K; E; J; T
Power supply: 85-242V; 50/60Hz

The XMT*308 series temperature meter are intelligence single row 4-LED display, and include on/off, PID control, including with parameter of self-setting functionand can input multi-signals. The temperature meter are operated with 3-key, allowing an easy inputting.

Main Technical Indexs
1. Measurement deviation: ± 0.5%F· S± 1B, Cold end compensating deviation≤ ± 2C
2. Input(can be selected): CU50, PT100, K, E, J, T, S
3. Relay output contact capacity: AC220V 5A(resistance load)
Period 2~120s can be adjusted.
4. Driving solid relay signal output: Driving electric current>15m A voltage>9V, Period is 2S
5. Power: AC85V~242V, 50~60Hz
6. Work environment: Temperature 0~50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.

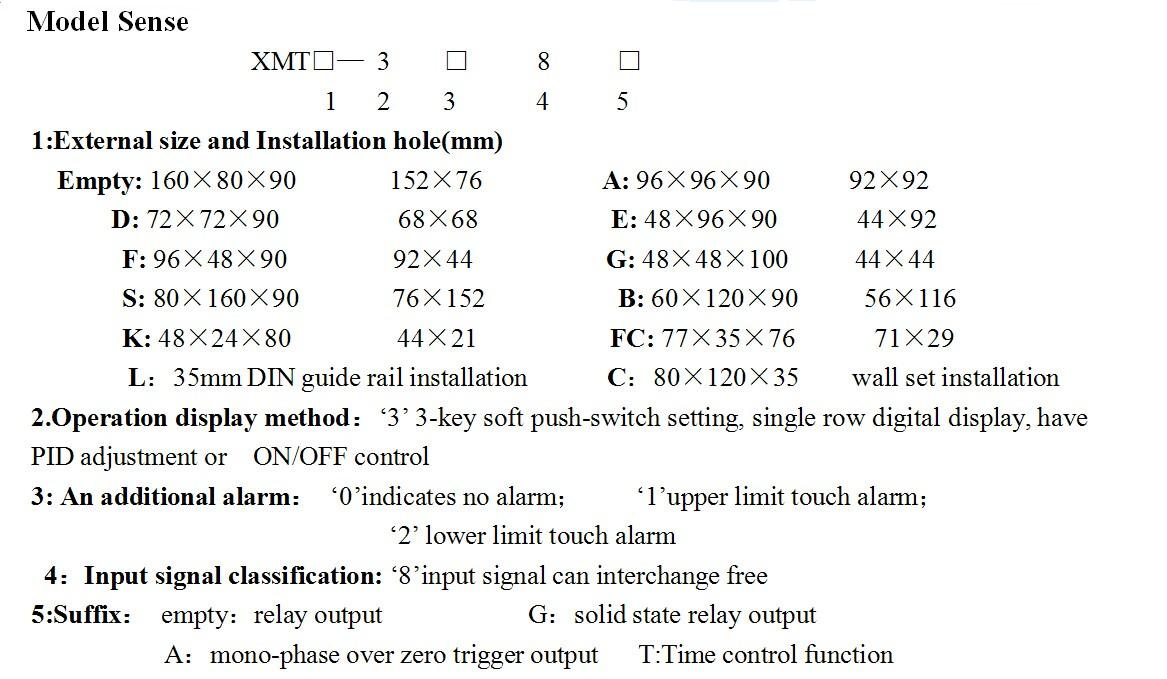

Sense of Model Code

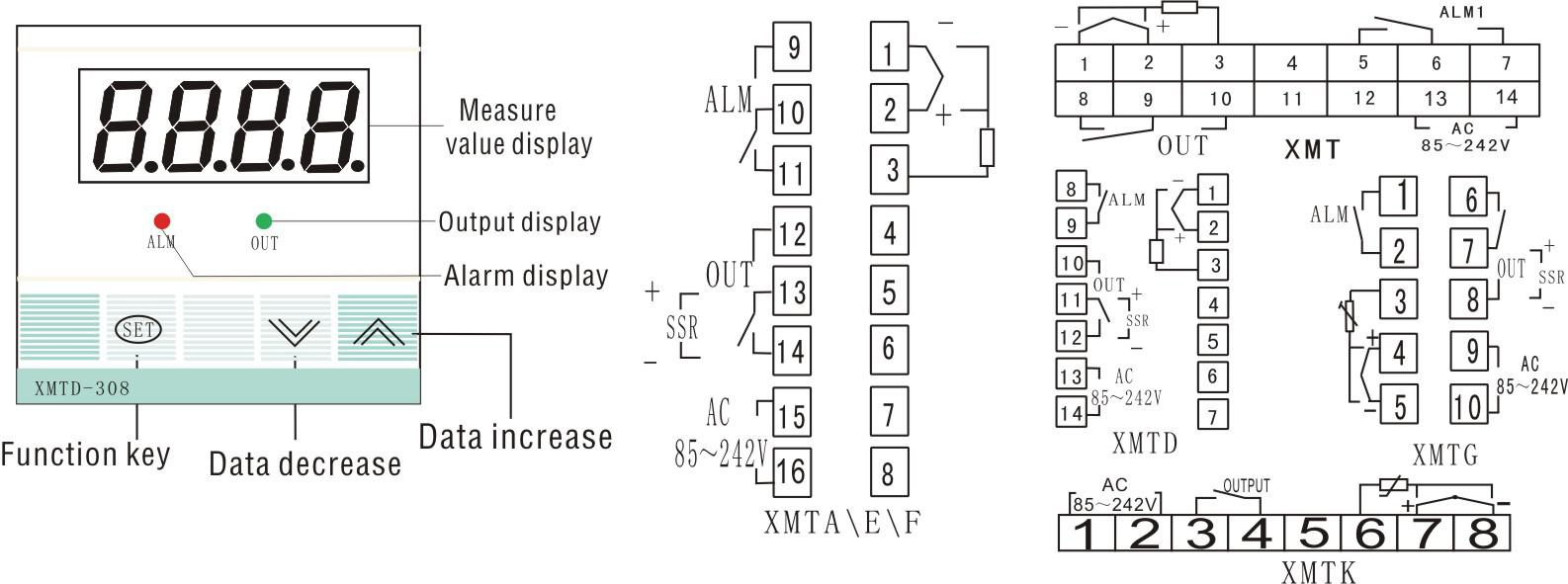

Instrument panel and connection scheme(consult)

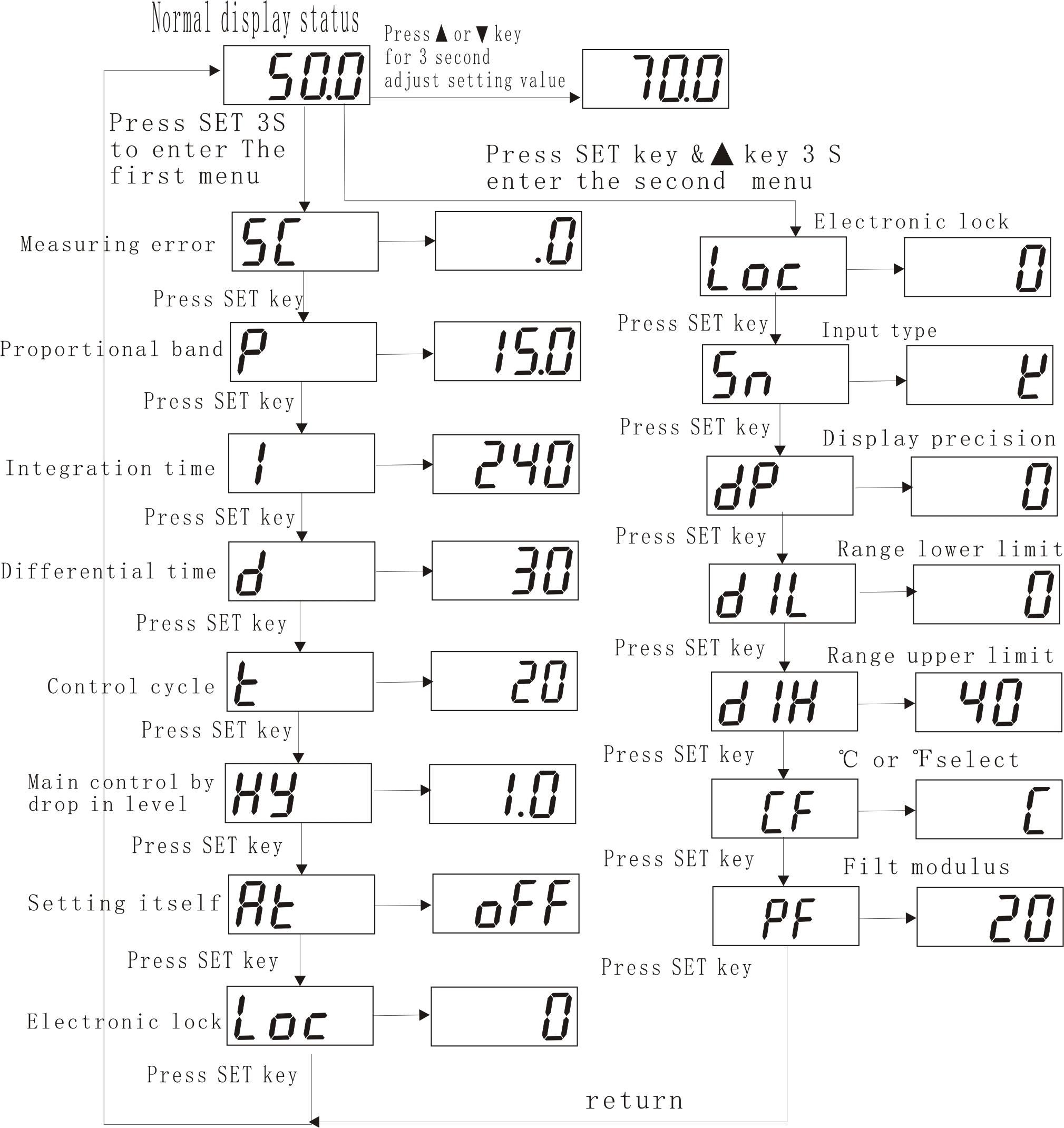

Flow chart

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
