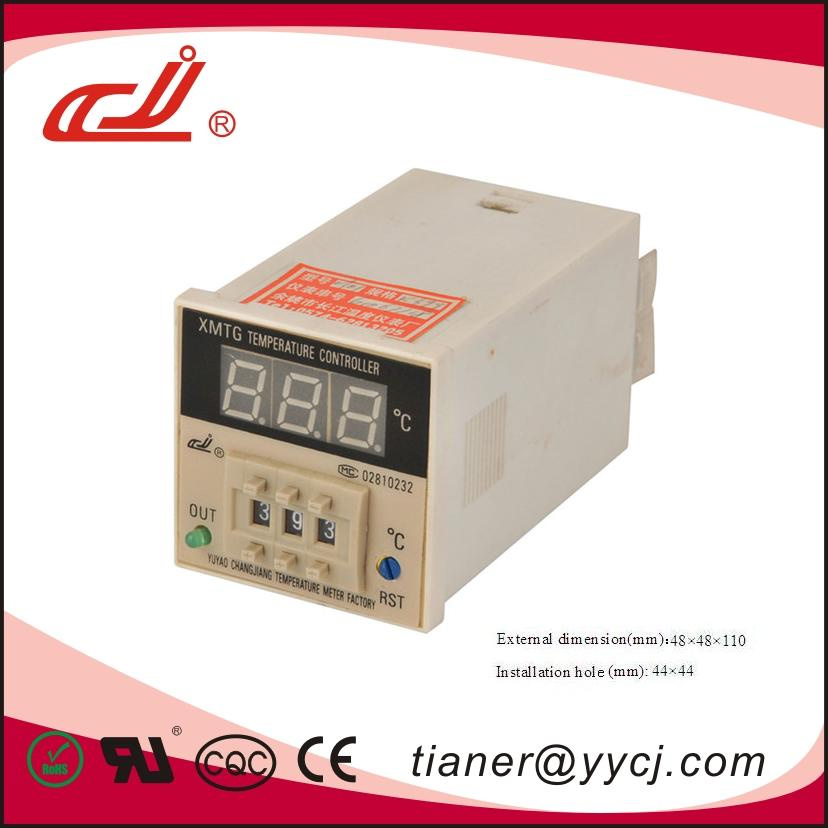

Xmtg-2301 Digital Time Proportion Adjustment Temperature Controller

Prod Model:	XMTG-2301
Size:	48*48
Usage:	Temperature Control
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type
Power Supply:	AC 85-242V 50/60Hz

Product Description

Specifications

XMT* digital temperature meter
Display method: LED display
Basic error: Less than 1.0%F.S±1B
Output contact capacity: AC 220V 5A


XMTG-2301 series digital temperature controller has digital display of the temperature measured value and time proportion control function. It has high precision, good reliability, strong cushioning, easy installation and other advantages. This controller is widely used as temperature measurement and automatic control in light and heavy industry, such as metallurgy, chemical, electronic, machinery, textile, plastic, refrigeration, medical treatment, electric oven, and so on.

I. Technical specification
1. Input type: J
2. Measure and control range: 0~399C
3. Accuracy: ≤ 1.0%F. S± 1B
4. Proportional band range: ± 12C
5. Control period: 30± 3Sec
6. Output contact capacity: 220VAC, 5A (resistance load)
7. Power supply: AC 85~242V, 50/60HZ
8. Power consumption: <3W
9. Overall size and installation hole(mm): 48× 48× 110; 44× 44
10. Working environment: Temperature: 0~50C; Relative humidity: < 85%RH, without corrode gas.



II.Method to use
1. This temperature controller should be fixed in the installation hole. Connect the power, sensor and output
controlling wires properly according to the connection scheme. It will display the actual measured temperature
after switching on.
2. The dial button on the panel of the controller can be set to any temperature you want between 0ºC and 399ºC.
3.Control mode:
When the actual measured temperature don't enter the proportional band and the setting temperature is
higher than the actual measured temperature, the terminal "7" and "8" connect , the terminal "7" and "6"
disconnect. The load starts heating at the moment and its temperature is going up.
When the actual measured temperature don't enter the proportional band and the setting temperature is
lower than the actual measured temperature, the terminal "7" and "8" disconnect , the terminal "7" and "6"
connect . The load does not heat at the moment and its temperature is going down.
After the actual measured temperature entry into the proportional band, the relay start opening and closing
according to the controlling rule. The higher temperature , the shorter connecting time of relay between terminal
"7" and "8 ", vice versa .The meter control the temperature by the way of changing the average heating power of load.


Input type

Input type	J
Measure and control range	0~399ºC
Accuracy	≤1.0%F.S±1B
Control period	30±3Sec
Output contact capacity	220VAC, 5A (resistance load)
Power supply	AC 85~242V,  50/60HZ
Power consumption	<3W
Overall size and installation hole(mm)	48×48×110;   44×44
Working environment:	temperature: 0~50°C; relative humidity: < 85%RH, without corrode gas
