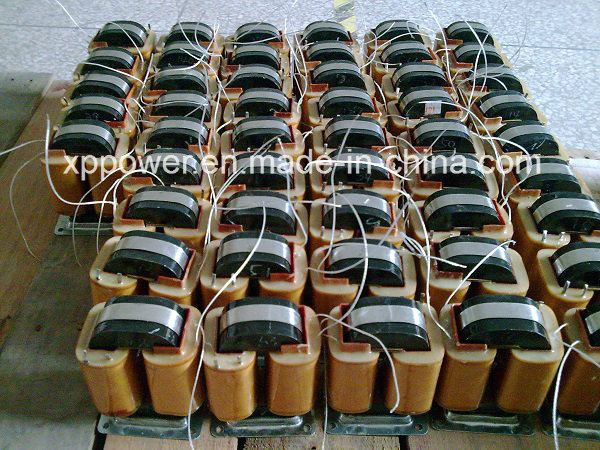

XP Power CD Type Single Phase Low Frenquency Power Transformer

Name: XP Power CD Type Single Phase Low Frenquency Power Transformer
Brand: all-electronics-online.com
SKU: 690390611
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 19.56-20.66/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XP-C1000-005R
Size:	1006036
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Shape Of Coil:	CD
Brand:	XP Power

Product Description

Specifications:
• Low profile
• High efficiency
• Low magnetic leakage
• No loading current and voltages
• No explosion danger, no corroding metal and no electrical breakdown

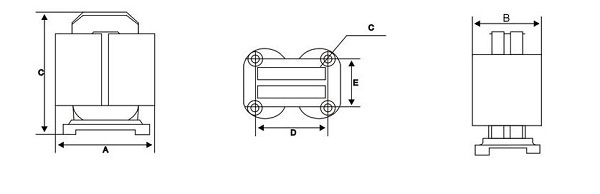

Model	Power(VA)	A	B	C	D	E	G
CD12.51625	5	60	38	60	50	33	4.5
CD12.51632	7	60	38	65	50	33	4.5
CD12.51640	10	60	38	72	50	33	4.5
CD12.51650	13	60	38	82	50	33	4.5
CD12.52530	18	70	50	65	50.5	42	4.5
CD12.52540	25	70	50	75	50.5	42	4.5
CD12.52550	30	70	50	84	50.5	42	4.5
CD12.52560	40	70	50	95	50.5	42	4.5
CD163240	70	85	60	82	66	46	4.5
CD163250	90	85	60	92	66	46	4.5
CD163265	120	85	60	106	66	46	4.5
CD163280	150	85	60	122	66	46	4.5
CD204050	190	110	80	97	82	61	5
CD204060	220	110	80	110	82	61	5
CD204080	290	110	80	130	82	61	5
CD2040100	350	110	80	150	82	61	5
CD255065	400	145	95	128	110	70	6
CD255080	500	145	95	143	110	70	6
CD2550100	600	145	95	163	110	70	6
CD2550120	800	145	95	183	110	70	6
CD326480	900	170	110	162	143	88	7
CD3264100	1000	170	110	175	143	88	7
CD3264130	1300	170	110	218	143	88	7
CD3264160	1600	170	110	240	143	88	7

We can design and manufacture customized part with specific requirement.

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
