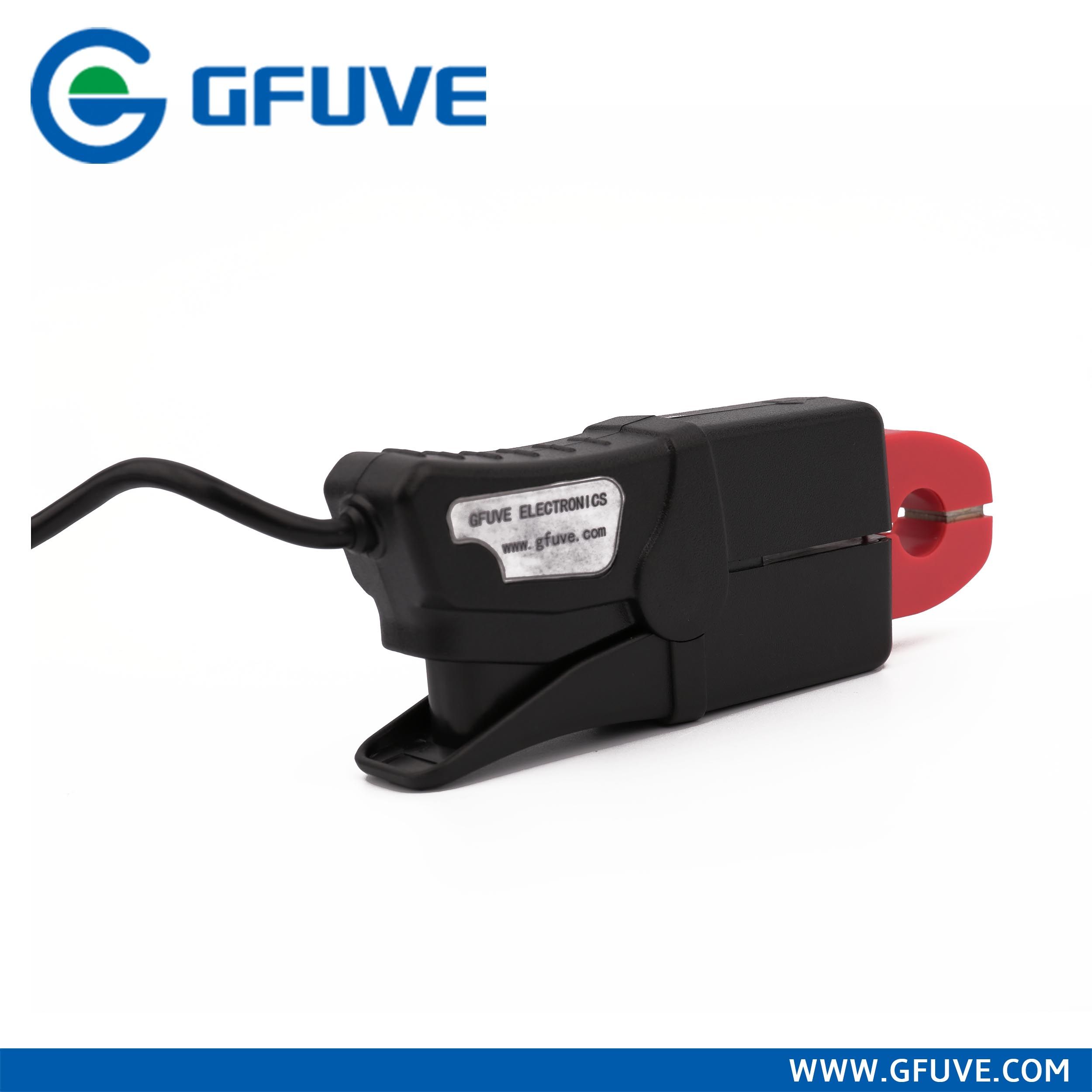

Xq13 High Performance Handheld Clamp on Current Transducer

Name: Xq13 High Performance Handheld Clamp on Current Transducer
Brand: all-electronics-online.com
SKU: 721468692
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 200/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ13
Weight:	280g
Mac. Jaw Opening:	13mm
Jaw Color:	Red, Yellow, Blue, Green, Black
Ratio:	1000:1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%
Over Voltage Category:	Cat III 600V
Max. Cont. Input Current:	120A
Frequency Range:	40Hz-2000Hz
Primary Current:	0-100A AC
Secondary Current:	0-100mA AC (Customized)
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

XQ13 High Performance Handheld Clamp On Current Transducer

The model XQ13 handheld clamp on current transducer is suitable for 10A-100A cable online measurement, it belongs to high performance transducer ﬁeld.

Applications	Features
1. Electric energy meter calibrator (on site) 2. Double clamp type ground resistance tester 3. Double clamp type phase volt-ampere meter 4. Digital multi-meter 5. Multi-function energy meter 6. Oscilloscope 7. Power quality analyzer 8. Matched instruments 9. Calibration instrument on site	1. Measurement range of 1mA to 100A AC 2. Small, compact size 3. Improved ergonomic design and easy operation 4. Low phase shift for power measurement 5. With load capacity ≤4Ω 6. Output model: Lead output(2.5m)

Parameters

Primary current	0 - 100A AC
Secondary current	0 - 100mA AC (customized)
Output signal (AC current)	From 0 to 100mA AC at nominal input current
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Temperature range	-20°C to +55°C
Material	PC+ABS+Polycarbonate, UL94 V0

If you want more informacion, plases Clik: http://gfuve.com/

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
