| Prod Model: |
XQ13 |
| Xq13: |
Clamp on Current Transducer |
| Ratio: |
1000: 1 or 2000:1 (Customized) |
| Primary Current: |
0 - 100A AC |
| Secondary Current: |
0 - 100mA AC (Customized) |
| Max. Cont. Input Current: |
120A |
| Over Voltage Category: |
Cat III 600V |
| Dimensions (L X W X H) (mm): |
48 X 179 X 27 |
| Weight (G): |
280 |
| Holding Wire Diameter (mm): |
φ13 |
| Max. Jaw Opening (mm): |
13 |
Product Description
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

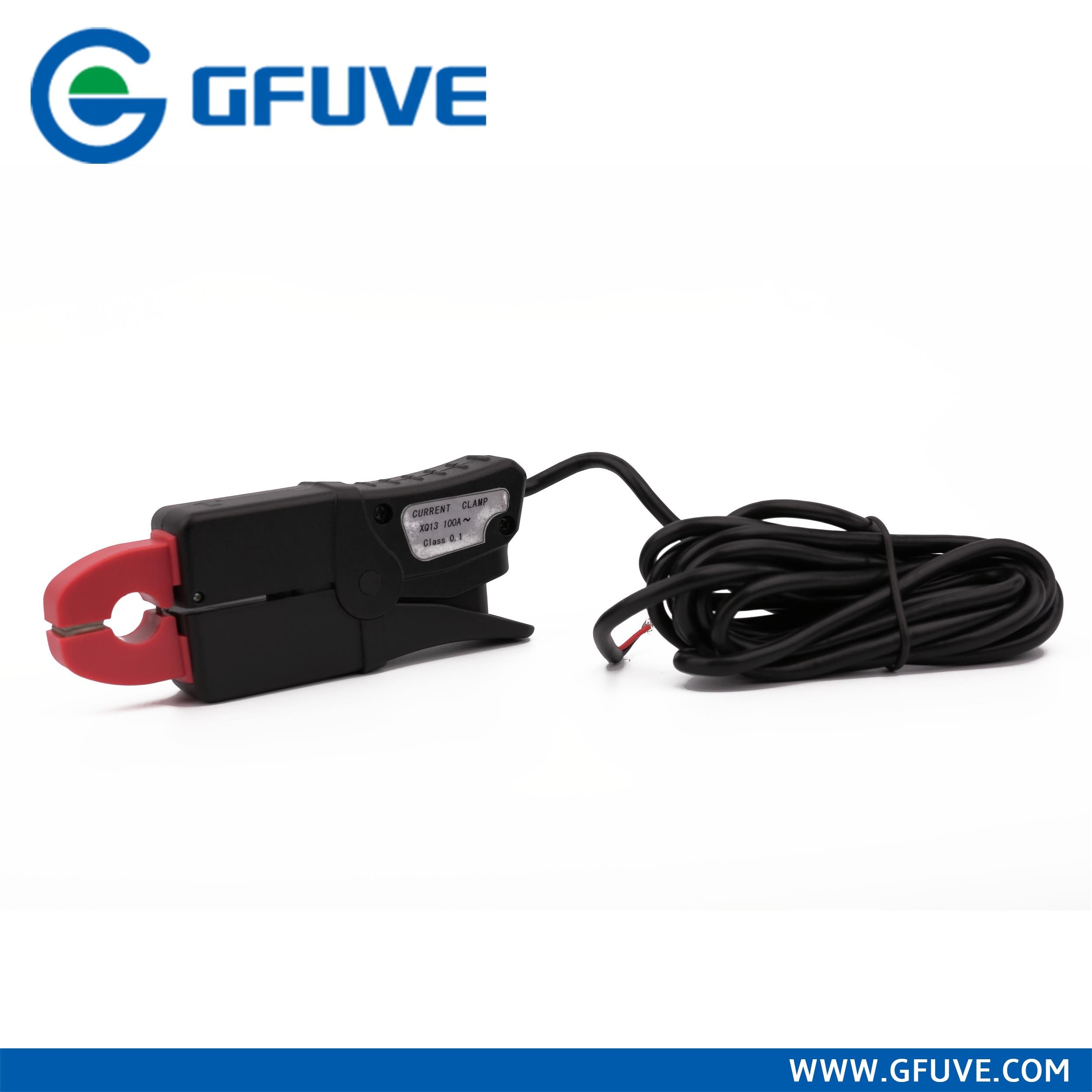

XQ13 100A High performance AC micro amp clamp on current probe
The model XQ13 handheld clamp on current transducer is suitable for 10A-100A cable online measurement, it belongs to high performance transducer field.
Features
Suitable for 10A-100A cable online measurement.
Holding wire diameter: φ13mm
Dimension: 52.5mm×136.5mm×28mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output
Parameters
| Electrical parameters |
|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 100A AC |
| Secondary current | 0 - 100mA AC (customized) |
| Max. Cont. Input current | 120A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 10mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 10mA AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output(2.5m) |
| Mechanical parameters |
|---|
| Dimensions (L x W x H) (mm) | 48 x 179 x 27 |
| Weight (g) | 280 |
| Holding wire diameter (mm) | φ13 |
| Max. jaw opening (mm) | 13 |
| Jaw color | Red, yellow, blue, green, black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
