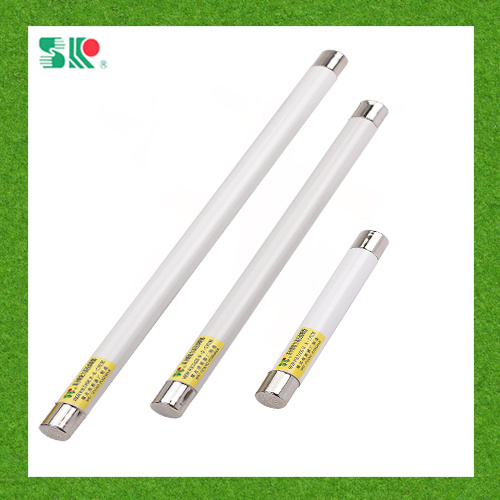

Xrnp Current - Limiting Fuses for Transformer Protection

Name: Xrnp Current - Limiting Fuses for Transformer Protection
Brand: all-electronics-online.com
SKU: 737795765
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNP Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

*Quick Details

Model Name : H.V HRC Current - Limiting Fuses Type XRNP For Transformer Protection

Model Number : XRNP Type Safety Standard : IEC

Breaking Capacity : High Export Markets : Global

Rated Voltage : 3.6 -40.5kV Origin : China

Rated Current : 6.3A

*Product Description

*Applications
H.V HRC current - limiting fuses type XRNP for transformer protection is mainly used in AC 50HZ, rated voltage 3.6 -40.5kV, rated current up to 6.3A circuit for protection transformers from overload and shirt - circuit. it conforms to IEC282 - 1, BS and GB15166.2.

*Design Features
XRNP type H.V HRC current - limiting fuses is insert installation .It is convenient for in stall and removal. The fuse link made of high - resistancemetal wire and low -resistance metal wire. They aer sealed in the ifuse tube fillde with chemically treated high - purity quartzsand. The fuse tube ismade form heat resisitance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link meltscausing arc,quartz sand extinguish thearc immediately, signaling the melting or automatically cutting the circuit.

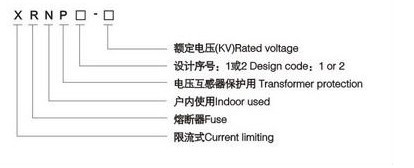

*Model And Lmplication

* Packaging & Delivery

Packaging Detail : According to customer's requirement

Delivery Detail : According to the order

we provide you with sincerely service , if you interest , contact us now !!!

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
