Y-Branch 1 to 3 IP67 Mc4 Solar Cable Connector (MCY301)
| Price: |
US $ 4.4/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
MCY301 |
| Type: |
Single Hole Terminals |
| Material: |
Copper |
| Application: |
Conduct Electricity |
Product Description

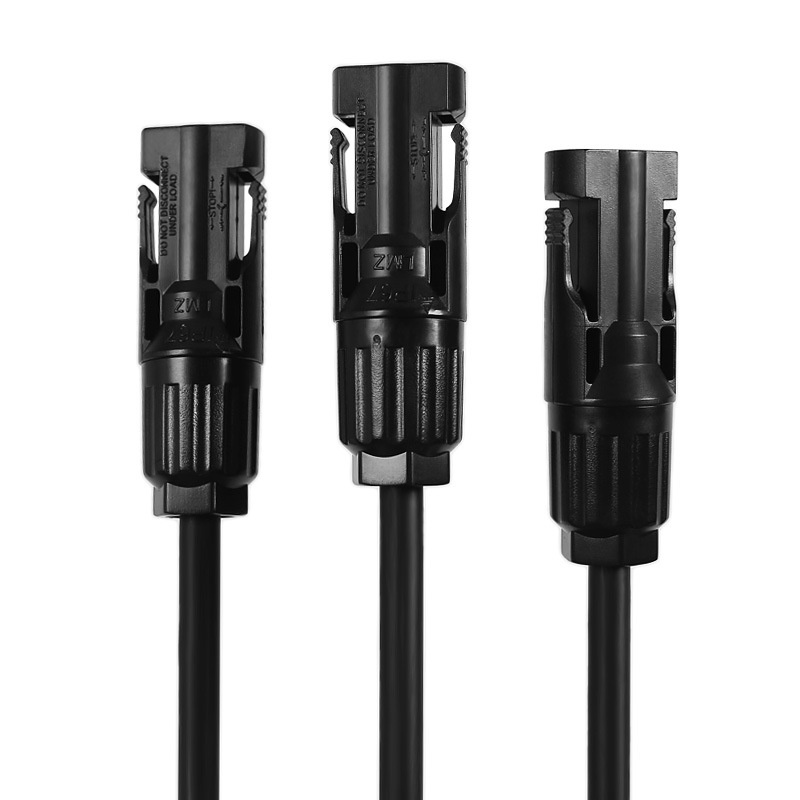

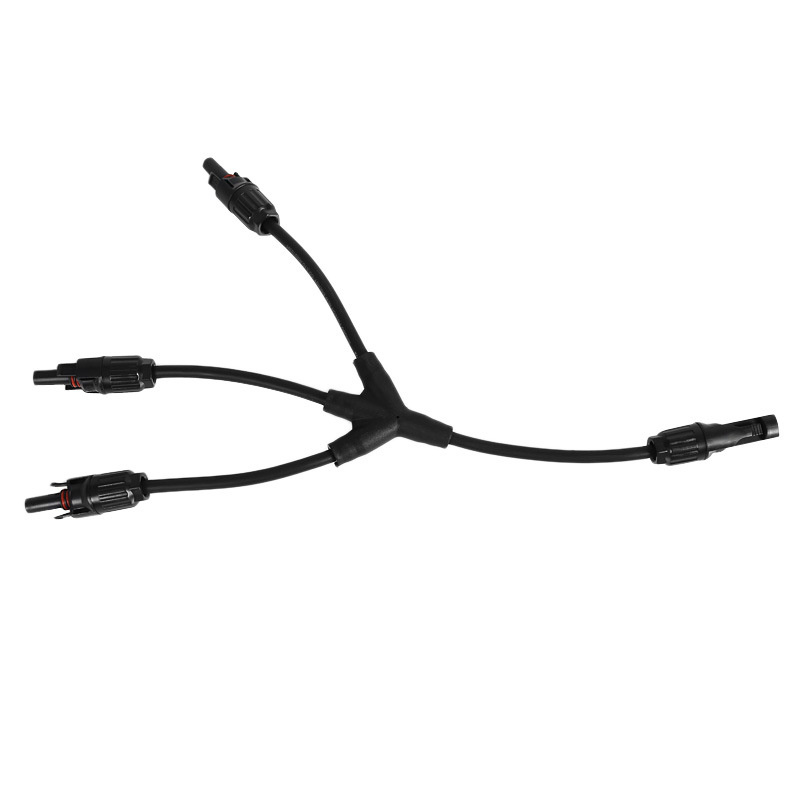

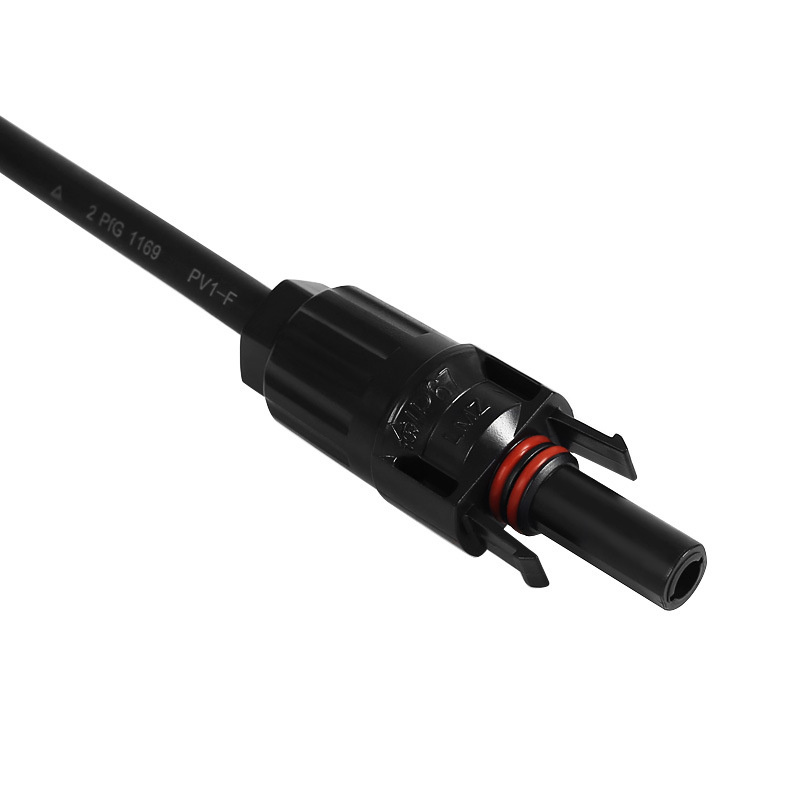

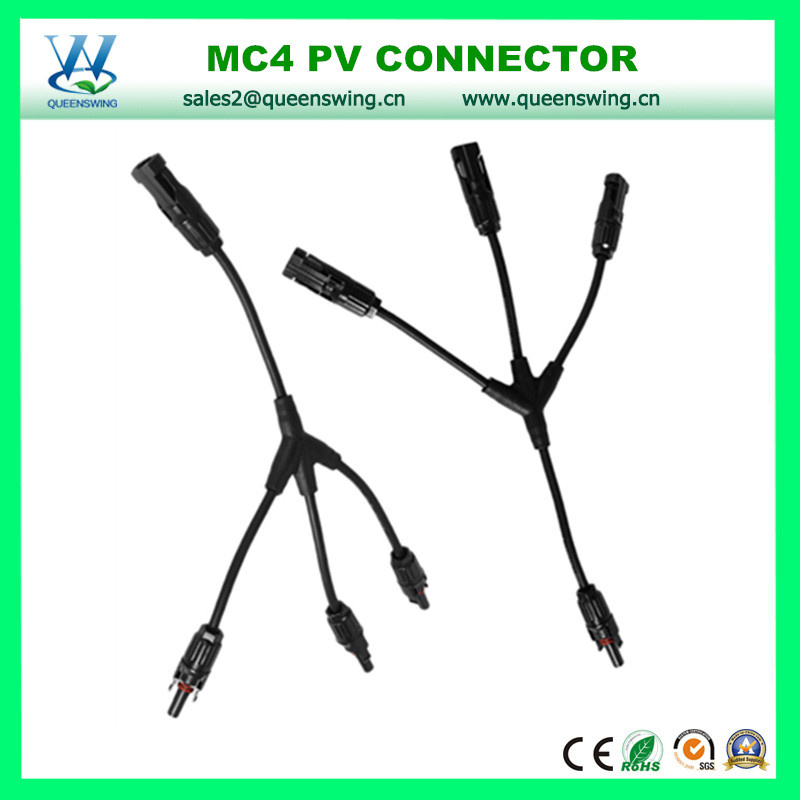

Y-Branch 1 to 3 IP67 MC4 Solar cable Connector(MCY301)

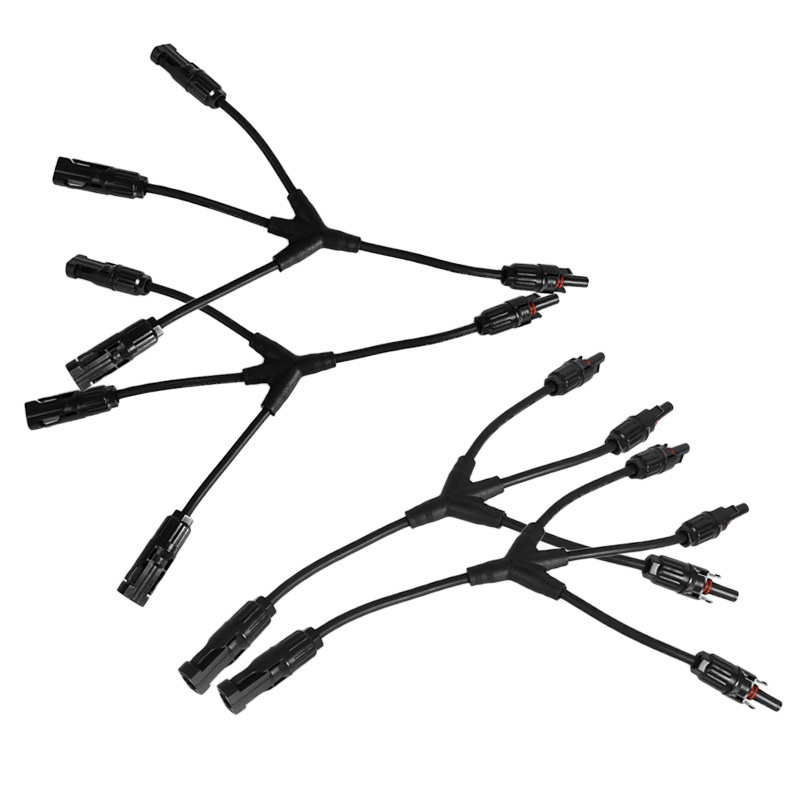

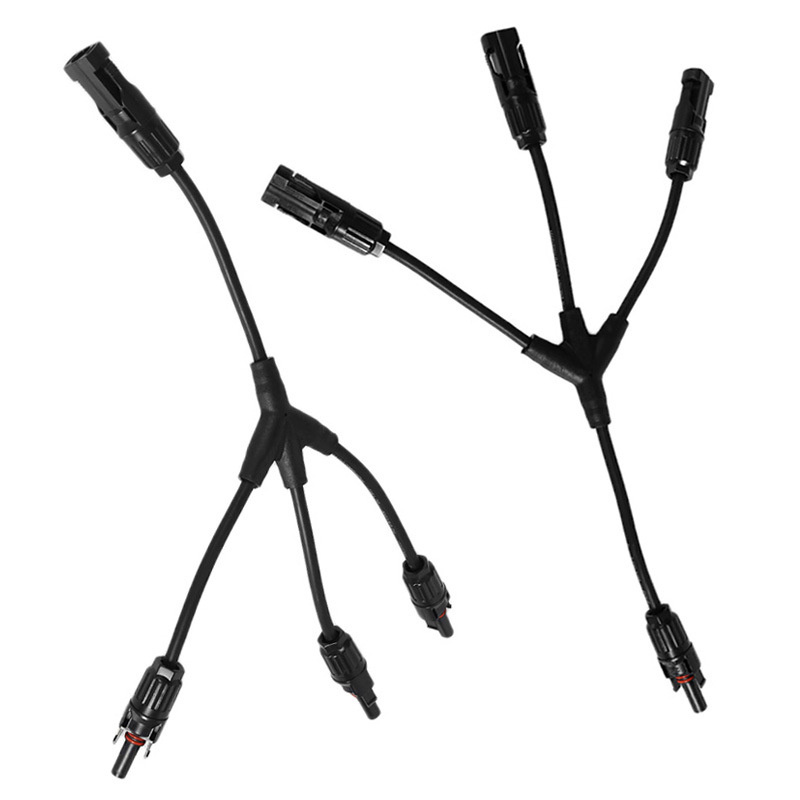

Description:These are Y Type (1 to 3) MC4 Style Branch Connector Cables which are approved by CE, TUV. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications. Feature -1 Pair of Y Type(1 to 3) MC4 Solar Panel Branch Cable Connectors:1 male to 3 female(M/FFFF) and 1 female to 3 male(F/MMM) -Compatible Mc4-With the capacity of anti-aging and resistance to ultraviolet radiation on the out cover -With convenient installation, strong commonality -Double seal rings to better waterproof effect-Compatible with PV cables with different insulation diameters-It can be used in harsh environment-With excellent aging resistance and UV endurance-Created seal, design of dust proof-Load capability with big current and high voltage-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument-Strong pulling force capability-Resistance of extra high & low temperature and fireproof-Lower contact resistanceSpecification:-Cable specification: 4mm2(AWG12)-Rate voltage: 1000V -Rate current 30A -Protection degree IP67 -Operating temperature -40°C~ +85°C -Insulation material: PPO + PA-Contact material: Copper, Tin plated -Flame class: UL94-VO-Safety Class: II-Contact resistance: ≤0.2mmΩ-Withdrawal force: ≥50N-Insertion force: ≤50N-Locking system: Snap in -Cable length: 33 cm/13 inchPackage includes:1 Pair of Y Type (1 to 3) MC4 Solar Panel Branch Cable Connectors (Male & Female)Technical Data | Withdrawal force | More than 50N |
| Insertion force | Less than 50N |
| Pin dimennsion | 4.0mm |
| Rating current | 20A-30A |
| Protection class | Class 2 |
| Contact Material | Copper,Tin Plated |
| Contact resistance | ≤5mΩ |
| Protection degree | IP 67 |
| Temperature Range | -40ºC~+85ºC |
| Flame Class | UL94V-0 |
| Box material | PPO |
| Suitable cable cross sections | 2.5mm²~6.0mm²/14AWG~12AWG |
1. During self assembly, parts and tools other than those stated by TOP HENGDA are used or if the
preparation and assembly instructions described here are disregarded then neither safety nor
compliance with the technical data can be guaranteed.
2. For protection against electric shock,PV connectors must be isolated from the power supply while being
assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed
in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging
and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
