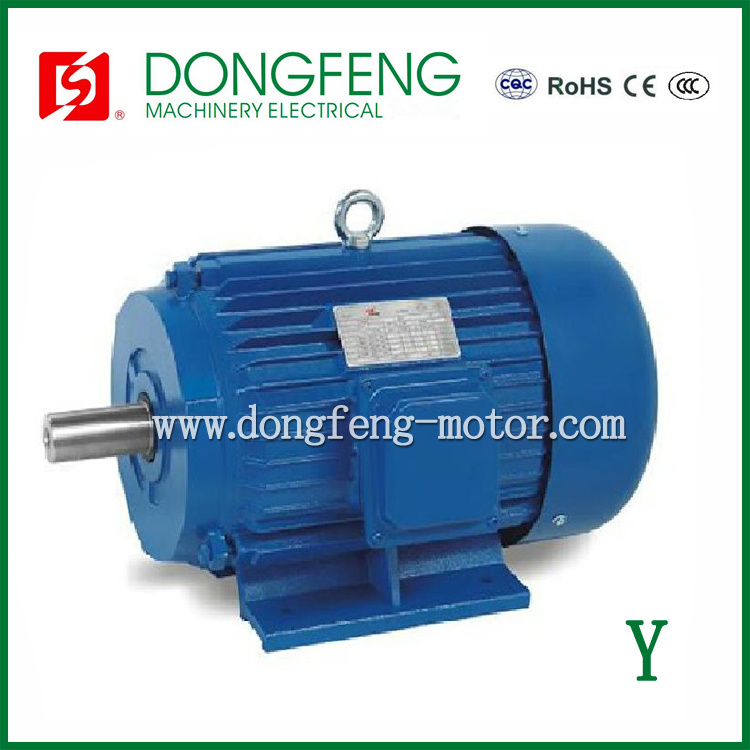

Y Series Flange Three Phase Electric Motor For Wooden Cutting Machine

Name: Y Series Flange Three Phase Electric Motor For Wooden Cutting Machine
Brand: all-electronics-online.com
SKU: 839838945
Availability: InStock
Rating: 4.9 (122 reviews)

Price:	US $ 15-500/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y Series
Insulation Class:	Class F/H
Motor Power:	0.18kw-315kw
Mounting:	B3/B5/B14/B35
Color:	OEM
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Brand:	Dongfeng or OEM
Species:	Y
Certification:	Ce
Number Of Poles:	2/4/6/8/10

Product Description

INTRODUCTION
Y series three phase induction motor is totally enclosed and fan cooling, it is newly designed according to national standard with a squirrel-cage construction and a general application.

Features: little noise, high starting torque, reliable operation and easy maintenance, etc.

Application: machine tools, pumps, fans, transport machinery, mixer, washing machine, packing machine, agriculture machinery and food machine, and etc.

RANGE OF PERFORMANCE
Frame Size: H80~H355
Rated Power Range: 0.75KW~315KW

OPERATING CONDITIONS
Ambient temperature:-15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 380V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class F/H
Protection Class: IP54
Duty: S1

Technical Data

TYPE	Output		Current (A)	Speed	Eff.	Power Factor	Tstart/Tn	Ist/In	Tmax/Tn
TYPE	KW	HP	380V	r/min	%	Power Factor	Tstart/Tn	Ist/In	Tmax/Tn
Y-801-2	0.75	1	1.81	2830	75	0.84	2.2	6.1	2.3
Y-802-2	1.1	1.5	2.55	2830	76.2	0.86	2.2	7	2.3
Y-90S-2	1.5	2	3.42	2840	78.5	0.85	2.2	7	2.3
Y-90L-2	2.2	3	4.80	2840	81	0.86	2.2	7	2.3
Y-100L-2	3	4	6.34	2870	82.6	0.87	2.2	7.5	2.3
Y-112M-2	4	5.5	8.30	2790	84.2	0.87	2.0	7.5	2.3
Y-132S1-2	5.5	7.5	11.08	2900	85.7	0.88	2.0	7.5	2.3
Y-132S2-2	7.5	10	14.88	2930	87	0.88	2.0	7.5	2.3
Y-160M1-2	11	15	21.48	2930	88.4	0.88	2.0	7.5	2.3
Y-160M2-2	15	20	28.97	2940	89.4	0.88	2.0	7.5	2.3
Y-160L-2	18.5	25	35.09	2950	90	0.89	2.0	7.5	2.2
Y-180M-2	22	30	41.50	2950	90.5	0.89	2.0	7.5	2.2
Y-200L1-2	30	40	56.03	2970	91.4	0.89	2.0	7.5	2.2
Y-200L2-2	37	50	68.66	2970	92	0.89	2.0	7.5	2.2
Y-225M-2	45	60	83.05	2970	92.5	0.89	2.0	7.5	2.2
Y-250M-2	55	75	100.96	2970	93	0.89	2.0	7.5	2.2
Y-280S-2	75	100	136.79	2980	93.6	0.89	2.0	7.5	2.2
Y-280M-2	90	125	163.62	2980	93.9	0.89	2.0	7.5	2.2
Y-315S-2	110	150	199.77	2980	94	0.89	1.8	7.1	2.2
Y-315M-2	132	180	238.46	2980	94.5	0.89	1.8	7.1	2.2
Y-315L1-2	160	220	288.73	2980	94.6	0.89	1.8	7.1	2.2
Y-315L2-2	200	270	360.15	2980	94.8	0.89	1.8	7.1	2.2
Y-355M-2	250	340	443.32	2980	95.2	0.90	1.6	7.1	2.2
Y-355L-2	315	430	557.41	2980	95.4	0.90	1.6	7.1	2.2
380V 50HZ Synchronous Speed 1500r/min(4 poles)
Y-801-4	0.55	0.75	1.55	1390	71.0	0.76	2.4	5.2	2.3
Y-802-4	0.75	1	2.05	1390	73	0.76	2.3	6	2.3
Y-90S-4	1.1	1.5	2.81	1400	76.2	0.78	2.3	6	2.3
Y-90L-4	1.5	2	3.67	1400	78.5	0.79	2.3	6	2.3
Y-100L1-4	2.2	3	5.03	1430	81	0.82	2.2	7	2.3
Y-100L2-4	3	4	6.81	1430	82.6	0.81	2.2	7	2.3
Y-112M-4	4	5.5	8.59	1440	84.2	0.84	2.2	7	2.3
Y-132S-4	5.5	7.5	11.47	1440	85.7	0.85	2.2	7	2.3
Y-132M-4	7.5	10	15.59	1440	87	0.84	2.2	7	2.3
Y-160M-4	11	15	22.24	1460	88.4	0.85	2.2	7	2.3
Y-160L-4	15	20	29.64	1460	89.4	0.86	2.2	7.5	2.3
Y-180M-4	18.5	25	36.32	1470	90	0.86	2	7.5	2.2
Y-180L-4	22	30	42.45	1470	90.5	0.87	2	7.5	2.2
Y-200L-4	30	40	57.32	1470	91.4	0.87	2	7.2	2.2
Y-225S-4	37	50	69.44	1480	92	0.88	1.9	7.2	2.2
Y-225M-4	45	60	83.99	1480	92.5	0.88	1.9	7.2	2.2
Y-250M-4	55	75	102.11	1480	93	0.88	2	7.2	2.2
Y-280S-4	75	100	138.34	1480	93.6	0.88	1.9	7.2	2.2
Y-280M-4	90	125	163.62	1480	93.9	0.89	1.9	7.2	2.2
Y-315S-4	110	150	198.08	1480	94.5	0.89	1.8	6.9	2.2
Y-315M-4	132	180	237.45	1490	94.8	0.89	1.8	6.9	2.2
Y-315L1-4	160	220	287.82	1490	94.9	0.89	1.8	6.9	2.2
Y-315L2-4	200	270	358.64	1490	94.9	0.89	1.8	6.9	2.2
Y-355M-4	250	340	458.61	1485	95.2	0.87	1.4	6.9	2.2
Y-355L-4	315	430	577.84	1485	95.2	0.87	1.4	6.9	2.2
380V 50HZ Synchronous Speed 1000r/min(6 poles)
Y-90S-6	0.75	1	2.36	910	69	0.7	2	5.5	2.2
Y-90L-6	1.1	1.5	3.22	910	72	0.72	2	5.5	2.2
Y-100L-6	1.5	2	4.05	940	76	0.74	2	5.5	2.2
Y-112M-6	2.2	3	5.72	940	79	0.74	2	6.5	2.2
Y-132S-6	3	4	7.40	960	81	0.76	2	6.5	2.2
Y-132M1-6	4	5.5	9.63	960	82	0.77	2	6.5	2.2
Y-132M2-6	5.5	7.5	12.75	960	84	0.78	2	6.5	2.2
Y-160M-6	7.5	10	16.99	970	86	0.78	2	6.5	2
Y-160L-6	11	15	24.49	970	87.5	0.78	2	6.5	2
Y-180L-6	15	20	31.61	970	89	0.81	2	7	2
Y-200L1-6	18.5	25	37.63	970	90	0.83	2	7	2
Y-200L2-6	22	30	44.75	970	90	0.83	2	7	2
Y-225M-6	30	40	58.61	980	91.5	0.85	1.7	7	2
Y-250M-6	37	50	71.05	980	92	0.86	1.7	7	2
Y-280S-6	45	60	84.96	980	92.5	0.87	1.8	7	2
Y-280M-6	55	75	103.50	980	92.8	0.87	1.8	7	2
Y-315S-6	75	100	140.08	990	93.5	0.87	1.6	7	2
Y-315M-6	90	125	167.56	990	93.8	0.87	1.6	7	2
Y-315L1-6	110	150	204.36	990	94	0.87	1.6	6.7	2
Y-315L2-6	132	180	244.71	990	94.2	0.87	1.6	6.7	2
Y-355M1-6	160	220	299.12	990	94.5	0.86	1.3	6.7	2
Y-355M2-6	200	270	373.90	990	94.5	0.86	1.3	6.7	2
Y-355L-6	250	340	467.38	990	94.5	0.86	1.3	6.7	2

OEM/ODM
WE WILL MEET YOUR REQUIREMENTS!
PLEASE FEEL FREE TO CONTACT WITH ME.
THANKS

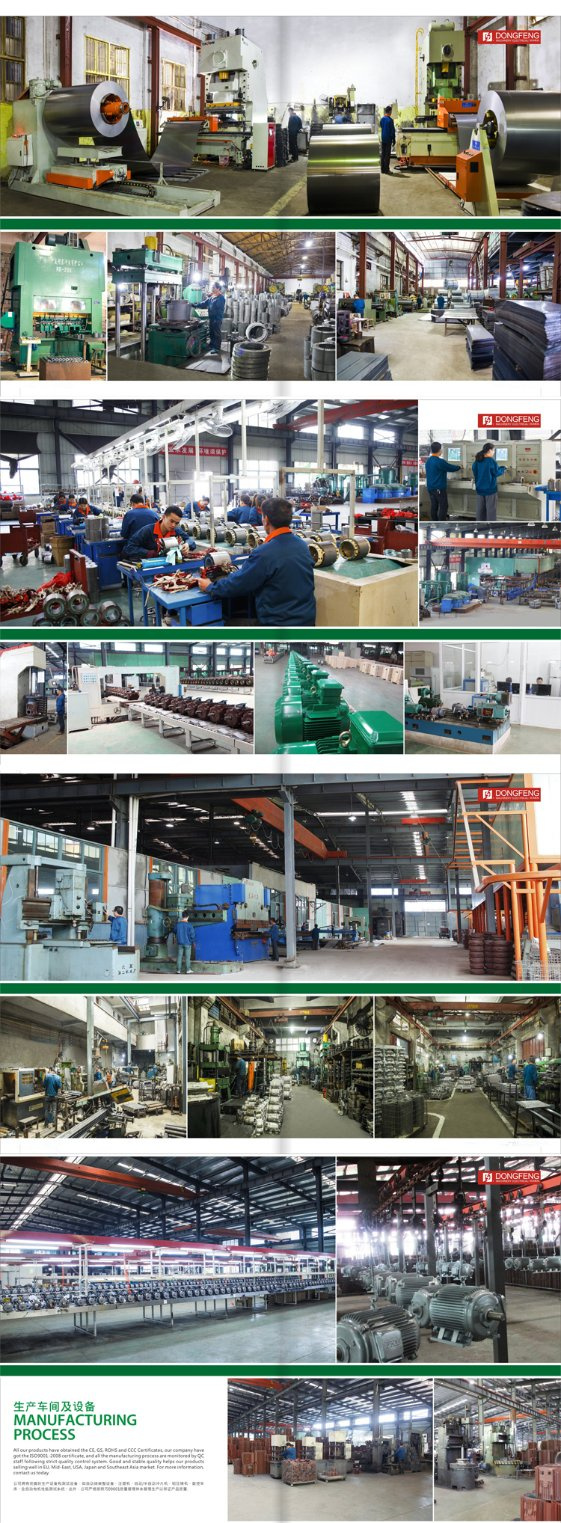

Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
