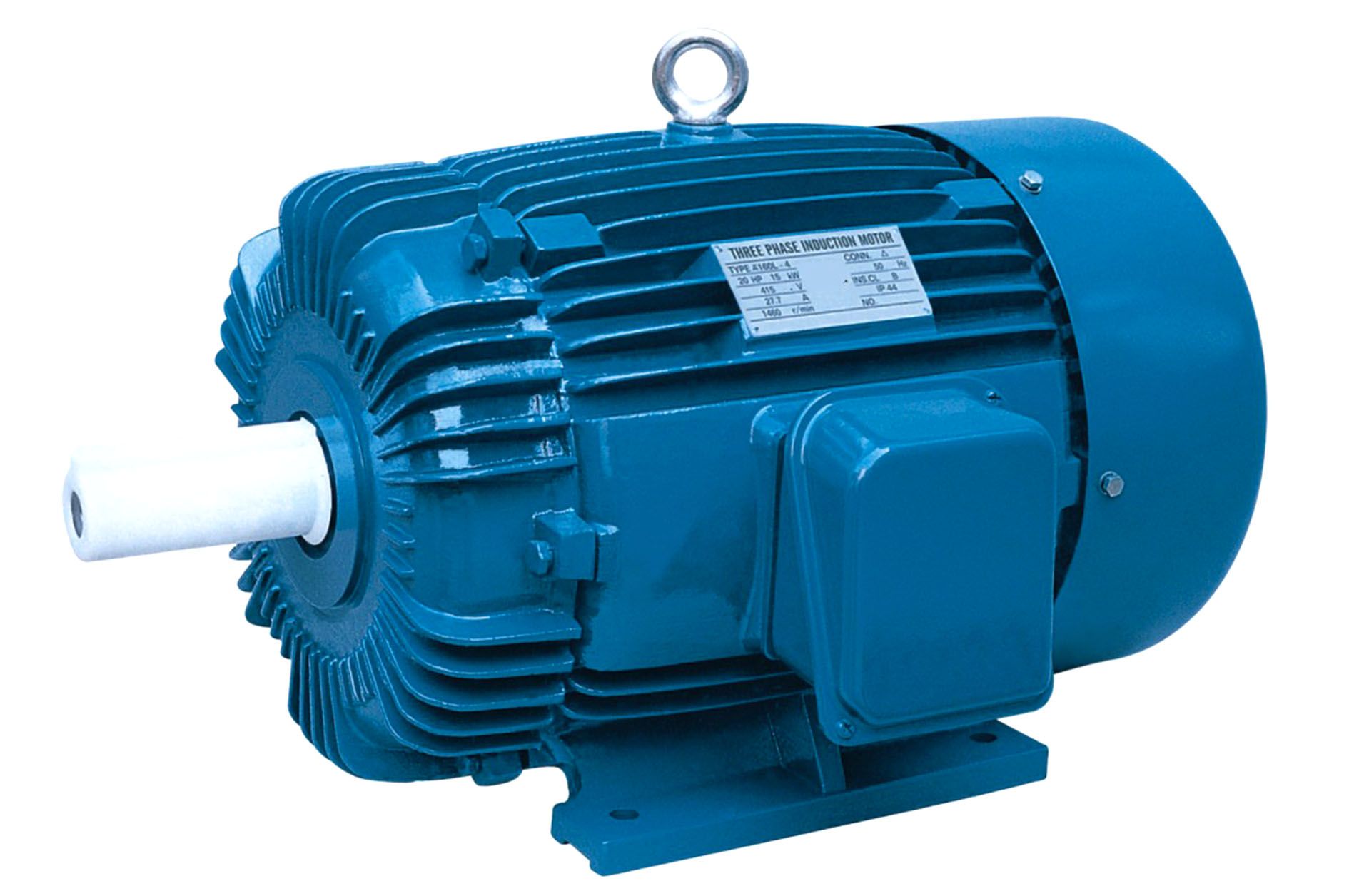

Y Series Three Phase AC Electric Motor 7.5HP

Name: Y Series Three Phase AC Electric Motor 7.5HP
Brand: all-electronics-online.com
SKU: 816841655
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	US $ 20-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y series three phase AC electric motor 7.5HP
Number Of Stator:	Single-Phase
Function:	Control
Brand:	Xirui

Product Description

Y series three phase AC electric motor 7.5HP

Product Description
Y series three phase ac electric motor 7.5hp

Advantage:
1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance

Application:
Y series three phase motors are widely used in places where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

Operating Conditions:
1. Ambient temperature: -15 ° C≤ θ ≤ 40° C
2. Altitude: ≤ 1000m
3. Rated voltage: 380V
4. Frequency: 50Hz or 60Hz
5. Duty/Rating: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP55/IP54/IP44
8. Cooling method: IC0141

Note:
If you have any special requirements, please contact us.

TECHNICAL DATA
Model	Output		Full load				Tstart/Tn	Ist/In
	kW	HP	Current	Speed	Eff	Power
	kW	HP	(A)	(r/min)	(%)	Factor
380V 50Hz Synchronous Speed 3000 r/min (2 poles)
Y801-2	0.75	1	1.81	2830	75	0.84	2.2	6.5	2.3
Y802-2	1.1	1.5	2.52	2830	77	0.86	2.2	7	2.3
Y90S-2	1.5	2	3.44	2840	78	0.85	2.2	7	2.3
Y90L-2	2.2	3	4.83	2840	80.5	0.86	2.2	7	2.3
Y100L-2	3	4	6.39	2870	87	0.87	2.2	7	2.3
Y112M-2	4	5.5	8.17	2890	85.5	0.87	2.2	7	2.5
Y132S1-2	5.5	7.5	11.1	2900	85.5	0.88	20	7	2.3
Y132S2-2	7.5	10	15	2900	86	0.88	2	7	2.3
Y160M1-2	11	15	21.8	2930	87.2	0.88	2	7	2.3
Y160M2-2	15	20	29.4	2930	88.2	0.88	2	7	2.3
Y160L-2	18.5	25	35.5	2930	89	0.89	2	7	2.2
Y180M-2	22	30	42.2	2940	89	0.89	2	7	2.2
Y200L1-2	30	40	56.9	2950	90	0.89	2	7	2.2
Y200L2-2	37	50	69	2950	90.5	0.89	2	7	2.2
Y225M-2	45	60	83.9	2970	91.7	0.89	2	7	2.2
Y250M-2	55	75	103	2970	91.5	0.89	2	7	2.2
Y280S-2	75	100	139	2970	92	0.89	2	7	2.2
Y280M-2	90	125	166	2970	92.5	0.89	2	7	2.2
380V 50Hz Synchronous Speed 1500 r/min (4 poles)
Y801-4	0.55	0.75	1.51	1390	73	0.76	2.4	6	2.3
Y802-4	0.75	1	2.01	1390	74.5	0.76	2.3	6	2.3
Y90S-4	1.1	1.5	2.75	1400	78	0.78	2.3	6.5	2.3
Y90L-4	1.5	2	3.65	1400	79	0.79	2.3	6.5	2.3
Y100L1-4	2.2	3	5.03	1430	81	0.82	2.2	7	2.3
Y100L2-4	3	4	6.82	1430	820.5	0.81	2.2	7	2.3
Y112M-4	4	5.5	0.77	1440	84.5	0.82	2.2	7	2.3
Y132S-4	5.5	7.5	11.6	1440	85.5	0.84	2.2	7	2.3
Y132M-4	75	10	15.4	1440	87	0.85	2.2	7	2.3
Y160M-4	11	15	22.6	1460	88	0.84	2.2	7	2.3
Y160L-4	15	20	30.3	1460	88.5	0.85	2.2	7	2.3
Y180M-4	18.5	25	35.9	1470	91	0.86	2	7	2.2
Y180L-4	22	30	42.5	1470	91.5	0.86	2	7	2.2
Y200L-4	30	40	56.8	1470	92.2	0.87	2	7	2.2
Y225S-4	37	50	70.4	1480	91.8	0.87	1.9	7	2.2
Y225M-4	45	60	84.2	1480	92.3	0.88	1.9	7	2.2
Y250M-4	55	75	103	1480	92.6	0.88	2	7	2.2
Y280S-4	75	100	140	1480	92.7	0.88	1.9	7	2.2
Y280M-4	90	125	164	1480	93.5	0.89	1.9	7	2.2
380V 50Hz Synchronous Speed 1000 r/min (6 poles)
Y90S-6	0.75	1	2.25	910	72.5	0.7	2	5.5	2.2
Y90L-6	1.1	1.5	3.16	910	73.5	0.72	2	5.5	2.2
Y100L-6	1.5	2	3.97	940	77.5	0.74	2	6	2.2
Y112M-6	2.2	3	5.61	940	80.5	0.74	2	6	2.2
Y132S-6	3	4	7.23	960	83	0.76	2	6.5	2.2
Y132M1-6	4	5.5	9.4	960	84	0.77	2	6.5	2.2
Y132M2-6	5.5	7.5	12.6	960	5.3	0.78	2	6.5	2
Y160M-6	7.5	10	17	970	86	0.78	2	6.5	2
Y160L-6	11	15	24.6	970	87	0.78	2	6.5	2
Y180L-6	15	20	31.4	970	89.5	0.81	1.8	6.5	2
Y200L1-6	18.5	25	37.7	970	89.8	0.83	1.8	6.5	2
Y200L2-6	22	30	44.6	970	90.2	0.83	1.8	6.5	2
Y225M-6	30	40	59.5	980	90.2	0.85	1.7	6.5	2
Y250M-6	37	50	72	980	90.8	0.86	1.8	6.5	2
Y280S-6	45	60	85.4	980	92	0.87	1.8	6.5	2
Y280M-6	55	75	104	980	92	0.87	1.8	6.5	2
380V 50Hz Synchronous Speed 750 r/min (8 poles)
Y132S-8	2.2	3	5.85	710	80.5	0.71	2	5.5	2
Y123M-8	3	4	7.72	710	82	0.72	2	5.5	2
Y160M1-8	4	5.5	9.91	720	84	0.73	2	6	2
Y160M2-8	5.5	7.5	13.3	720	85	0.74	2	6	2
Y160L-8	7.5	10	17.7	720	86	0.75	2	5.5	2
Y180L-8	11	15	24.8	730	87.5	0.77	1.7	6	2
Y200L-8	15	20	34.1	730	88	0.76	1.8	6	2
Y225S-8	18.5	25	41.3	730	89.5	0.76	1.7	6	2
Y225M-8	22	30	47.6	730	90	0.78	1.8	6	2
Y250M-8	30	40	63	740	90.5	0.8	1.8	6	2
Y280S-8	37	50	78.2	740	91	0.79	1.8	6	2
Y280M-8	45	60	93.2	740	91.7	0.8	1.8	6	2

FUAN XINRUI MACHINERY Co., Ltd., founded in 2010, is a high efficiency motor manufacturer which combines researching, producing and marketing. After 6 years of development, the total area has reached 80, 000 square meters; And the total number of staff reaches more than 400 persons. Company continues to explore innovation, takes variety of advantages, and seizes every opportunity to increase marketing for many countries and areas which including Italy, Germany, UK, Belgium, Russia, Egypt, Iran, Thailand, and Malaysia, and the yearly turnover has exceeded 30 million US dollars. At present, the company has obtained the certificates including ISO 9001: 2008, ISO 14001: 2004, CCC, CE, and so on. Among our products, the IE2, IE3 high efficiency motor has been widely recognized by our overseas customers. By the high-end customer driven the entire product brand and quality improvement, company forms a strong competitiveness in the same industry, and also plays a leading role for the entire industry upstream and downstream chain upgrading. Nowadays, with great enthusiasm and persistence efforts, we are working toward a stable quality and good service oriented enterprise for customer benefits. We are expecting your kind attention, thank you.
