| Prod Model: |
Y100L-2 |
| Insulation Class: |
IP44 / IP54 / IP55 |
| Winding: |
100% Copper Wire |
| Output: |
0.55kw-200kw |
| Protection Class: |
B / F |
| Cooling Method: |
Ico141 |
| Mounting: |
B3 / B5 / B35 |
| Duty: |
Continuous ( S1 ) |
| Rated Voltage: |
380V |
| Rated Frequency: |
50Hz |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Auto-induction Voltage-reduced Starting |
| Brand: |
Omeik/OEM |
| Certification: |
Ce |
Product Description
Product Description

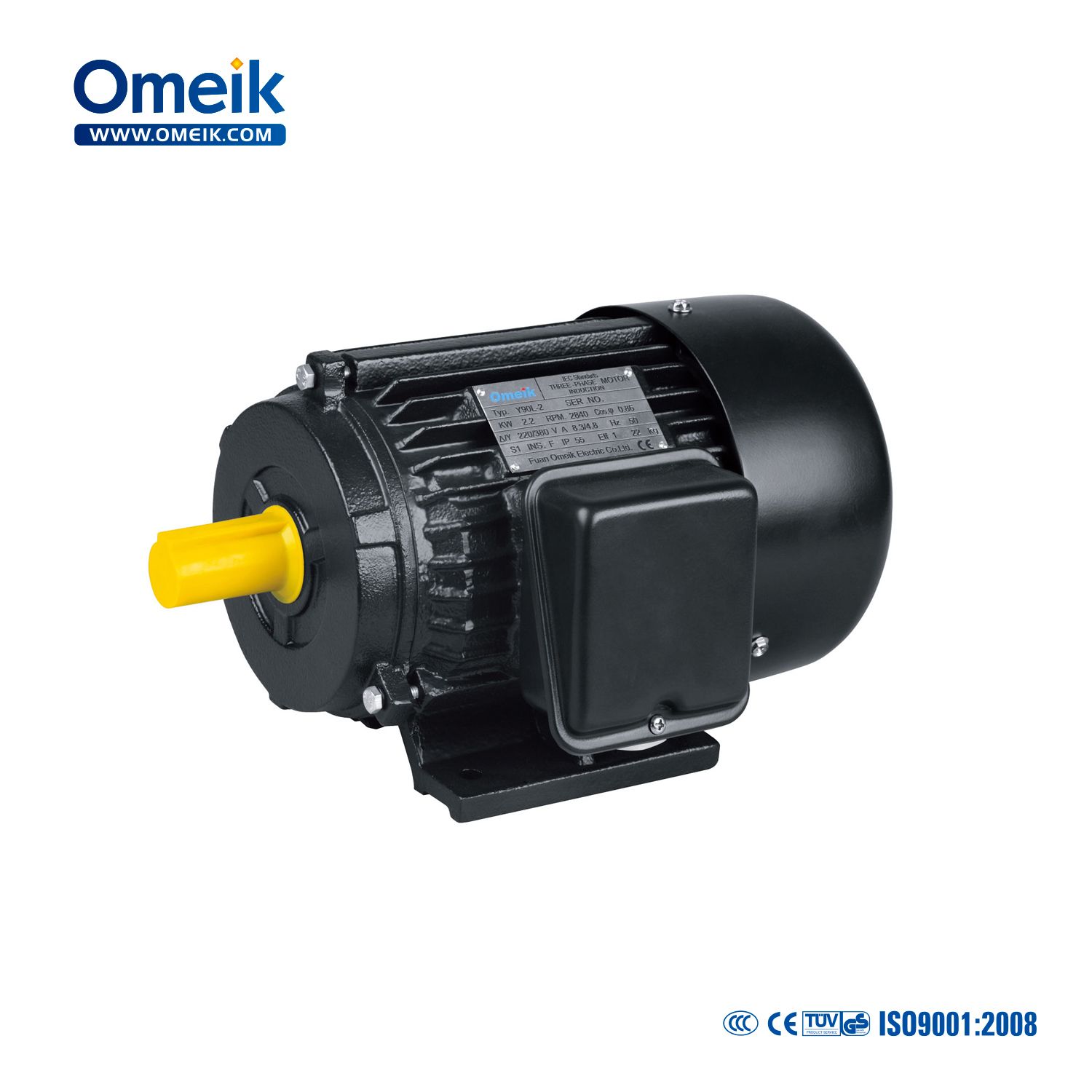

OMEIK Y Series china motorAdvantage:
1. Outstanding performance
2. High efficiency
3. Energy-saving
4. High starting torque
5. Low noise
6. Little vibration
7. Reliable operation and easy maintenance
Application:Y series china motors are widely used in places where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.
Operating Conditions:1. Ambient temperature: -15 ° C≤ θ ≤ 40° C
2. Altitude: ≤ 1000m
3. Rated voltage: 380V
4. Frequency: 50Hz or 60Hz
5. Duty/Rating: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP55/IP54/IP44
8. Cooling method: IC0141
Note:
If you have any special requirements, please contact us.| TECHNICAL DATA | | | | | | | | |
| Model | Output | Full load | Tstart/Tn | Ist/In | Tmax/Tn |
| kW | HP | Current | Speed | Eff | Power |
| (A) | (r/min) | (%) | Factor |
| 380V 50Hz Synchronous Speed 3000 r/min (2 poles) | | | | | |
| Y801-2 | 0.75 | 1 | 1.81 | 2830 | 75 | 0.84 | 2.2 | 6.5 | 2.3 |
| Y802-2 | 1.1 | 1.5 | 2.52 | 2830 | 77 | 0.86 | 2.2 | 7 | 2.3 |
| Y90S-2 | 1.5 | 2 | 3.44 | 2840 | 78 | 0.85 | 2.2 | 7 | 2.3 |
| Y90L-2 | 2.2 | 3 | 4.83 | 2840 | 80.5 | 0.86 | 2.2 | 7 | 2.3 |
| Y100L-2 | 3 | 4 | 6.39 | 2870 | 87 | 0.87 | 2.2 | 7 | 2.3 |
| Y112M-2 | 4 | 5.5 | 8.17 | 2890 | 85.5 | 0.87 | 2.2 | 7 | 2.5 |
| Y132S1-2 | 5.5 | 7.5 | 11.1 | 2900 | 85.5 | 0.88 | 20 | 7 | 2.3 |
| Y132S2-2 | 7.5 | 10 | 15 | 2900 | 86 | 0.88 | 2 | 7 | 2.3 |
| Y160M1-2 | 11 | 15 | 21.8 | 2930 | 87.2 | 0.88 | 2 | 7 | 2.3 |
| Y160M2-2 | 15 | 20 | 29.4 | 2930 | 88.2 | 0.88 | 2 | 7 | 2.3 |
| Y160L-2 | 18.5 | 25 | 35.5 | 2930 | 89 | 0.89 | 2 | 7 | 2.2 |
| Y180M-2 | 22 | 30 | 42.2 | 2940 | 89 | 0.89 | 2 | 7 | 2.2 |
| Y200L1-2 | 30 | 40 | 56.9 | 2950 | 90 | 0.89 | 2 | 7 | 2.2 |
| Y200L2-2 | 37 | 50 | 69 | 2950 | 90.5 | 0.89 | 2 | 7 | 2.2 |
| Y225M-2 | 45 | 60 | 83.9 | 2970 | 91.7 | 0.89 | 2 | 7 | 2.2 |
| Y250M-2 | 55 | 75 | 103 | 2970 | 91.5 | 0.89 | 2 | 7 | 2.2 |
| Y280S-2 | 75 | 100 | 139 | 2970 | 92 | 0.89 | 2 | 7 | 2.2 |
| Y280M-2 | 90 | 125 | 166 | 2970 | 92.5 | 0.89 | 2 | 7 | 2.2 |
| 380V 50Hz Synchronous Speed 1500 r/min (4 poles) | | | | | |
| Y801-4 | 0.55 | 0.75 | 1.51 | 1390 | 73 | 0.76 | 2.4 | 6 | 2.3 |
| Y802-4 | 0.75 | 1 | 2.01 | 1390 | 74.5 | 0.76 | 2.3 | 6 | 2.3 |
| Y90S-4 | 1.1 | 1.5 | 2.75 | 1400 | 78 | 0.78 | 2.3 | 6.5 | 2.3 |
| Y90L-4 | 1.5 | 2 | 3.65 | 1400 | 79 | 0.79 | 2.3 | 6.5 | 2.3 |
| Y100L1-4 | 2.2 | 3 | 5.03 | 1430 | 81 | 0.82 | 2.2 | 7 | 2.3 |
| Y100L2-4 | 3 | 4 | 6.82 | 1430 | 820.5 | 0.81 | 2.2 | 7 | 2.3 |
| Y112M-4 | 4 | 5.5 | 0.77 | 1440 | 84.5 | 0.82 | 2.2 | 7 | 2.3 |
| Y132S-4 | 5.5 | 7.5 | 11.6 | 1440 | 85.5 | 0.84 | 2.2 | 7 | 2.3 |
| Y132M-4 | 75 | 10 | 15.4 | 1440 | 87 | 0.85 | 2.2 | 7 | 2.3 |
| Y160M-4 | 11 | 15 | 22.6 | 1460 | 88 | 0.84 | 2.2 | 7 | 2.3 |
| Y160L-4 | 15 | 20 | 30.3 | 1460 | 88.5 | 0.85 | 2.2 | 7 | 2.3 |
| Y180M-4 | 18.5 | 25 | 35.9 | 1470 | 91 | 0.86 | 2 | 7 | 2.2 |
| Y180L-4 | 22 | 30 | 42.5 | 1470 | 91.5 | 0.86 | 2 | 7 | 2.2 |
| Y200L-4 | 30 | 40 | 56.8 | 1470 | 92.2 | 0.87 | 2 | 7 | 2.2 |
| Y225S-4 | 37 | 50 | 70.4 | 1480 | 91.8 | 0.87 | 1.9 | 7 | 2.2 |
| Y225M-4 | 45 | 60 | 84.2 | 1480 | 92.3 | 0.88 | 1.9 | 7 | 2.2 |
| Y250M-4 | 55 | 75 | 103 | 1480 | 92.6 | 0.88 | 2 | 7 | 2.2 |
| Y280S-4 | 75 | 100 | 140 | 1480 | 92.7 | 0.88 | 1.9 | 7 | 2.2 |
| Y280M-4 | 90 | 125 | 164 | 1480 | 93.5 | 0.89 | 1.9 | 7 | 2.2 |
| 380V 50Hz Synchronous Speed 1000 r/min (6 poles) | | | | | |
| Y90S-6 | 0.75 | 1 | 2.25 | 910 | 72.5 | 0.7 | 2 | 5.5 | 2.2 |
| Y90L-6 | 1.1 | 1.5 | 3.16 | 910 | 73.5 | 0.72 | 2 | 5.5 | 2.2 |
| Y100L-6 | 1.5 | 2 | 3.97 | 940 | 77.5 | 0.74 | 2 | 6 | 2.2 |
| Y112M-6 | 2.2 | 3 | 5.61 | 940 | 80.5 | 0.74 | 2 | 6 | 2.2 |
| Y132S-6 | 3 | 4 | 7.23 | 960 | 83 | 0.76 | 2 | 6.5 | 2.2 |
| Y132M1-6 | 4 | 5.5 | 9.4 | 960 | 84 | 0.77 | 2 | 6.5 | 2.2 |
| Y132M2-6 | 5.5 | 7.5 | 12.6 | 960 | 5.3 | 0.78 | 2 | 6.5 | 2 |
| Y160M-6 | 7.5 | 10 | 17 | 970 | 86 | 0.78 | 2 | 6.5 | 2 |
| Y160L-6 | 11 | 15 | 24.6 | 970 | 87 | 0.78 | 2 | 6.5 | 2 |
| Y180L-6 | 15 | 20 | 31.4 | 970 | 89.5 | 0.81 | 1.8 | 6.5 | 2 |
| Y200L1-6 | 18.5 | 25 | 37.7 | 970 | 89.8 | 0.83 | 1.8 | 6.5 | 2 |
| Y200L2-6 | 22 | 30 | 44.6 | 970 | 90.2 | 0.83 | 1.8 | 6.5 | 2 |
| Y225M-6 | 30 | 40 | 59.5 | 980 | 90.2 | 0.85 | 1.7 | 6.5 | 2 |
| Y250M-6 | 37 | 50 | 72 | 980 | 90.8 | 0.86 | 1.8 | 6.5 | 2 |
| Y280S-6 | 45 | 60 | 85.4 | 980 | 92 | 0.87 | 1.8 | 6.5 | 2 |
| Y280M-6 | 55 | 75 | 104 | 980 | 92 | 0.87 | 1.8 | 6.5 | 2 |
| 380V 50Hz Synchronous Speed 750 r/min (8 poles) |
| Y132S-8 | 2.2 | 3 | 5.85 | 710 | 80.5 | 0.71 | 2 | 5.5 | 2 |
| Y123M-8 | 3 | 4 | 7.72 | 710 | 82 | 0.72 | 2 | 5.5 | 2 |
| Y160M1-8 | 4 | 5.5 | 9.91 | 720 | 84 | 0.73 | 2 | 6 | 2 |
| Y160M2-8 | 5.5 | 7.5 | 13.3 | 720 | 85 | 0.74 | 2 | 6 | 2 |
| Y160L-8 | 7.5 | 10 | 17.7 | 720 | 86 | 0.75 | 2 | 5.5 | 2 |
| Y180L-8 | 11 | 15 | 24.8 | 730 | 87.5 | 0.77 | 1.7 | 6 | 2 |
| Y200L-8 | 15 | 20 | 34.1 | 730 | 88 | 0.76 | 1.8 | 6 | 2 |
| Y225S-8 | 18.5 | 25 | 41.3 | 730 | 89.5 | 0.76 | 1.7 | 6 | 2 |
| Y225M-8 | 22 | 30 | 47.6 | 730 | 90 | 0.78 | 1.8 | 6 | 2 |
| Y250M-8 | 30 | 40 | 63 | 740 | 90.5 | 0.8 | 1.8 | 6 | 2 |
| Y280S-8 | 37 | 50 | 78.2 | 740 | 91 | 0.79 | 1.8 | 6 | 2 |
| Y280M-8 | 45 | 60 | 93.2 | 740 | 91.7 | 0.8 | 1.8 | 6 | 2 |

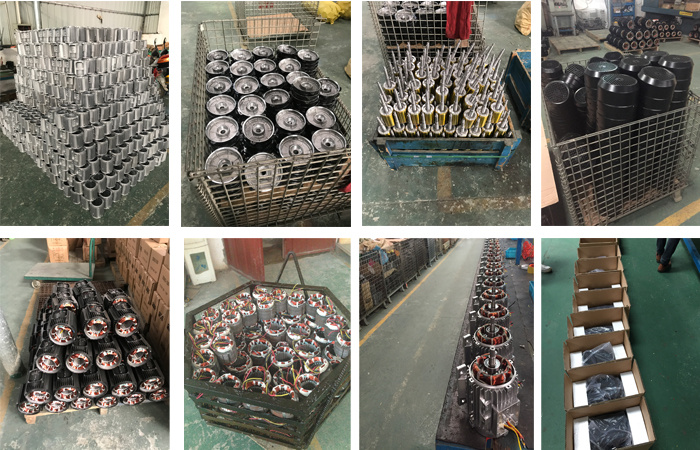

SPARE PARTS:
PACKING WAYS
FAQQ: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply
