| Prod Model: |
Y/Y2/YE2/YE3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
0.18kw-375kw |
| Efficiency: |
Ie1, or as Required |
| Structure: |
Squirrel Cage Cast Iron Shell Asynchronous Motor |
| Winding: |
100% Red Copper |
| Protection: |
IP44, IP54, IP55, IP56 |
| Driving: |
Compressor, Pump, Fan,Blower, Crusher, Cutting Lat |
| Housing: |
Aluminium Shell |
| Voltage: |
380V, 415V, 400V,or as Required |
| Cooling Method: |
IC411 |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Soft Starter |
| Species: |
Y/Y2/Ye2/Ye3 |
| Number Of Poles: |
2,4,6,8,10,12 |
| Certification: |
CE |
| Brand: |
China Electric |
Product Description
Y/Y2/YE2/YE3 asychronous three phase induction motor
Frame size: 80mm~355mm
Rated Power: 0.18Kw~375Kw
Y/Y2/YE2/YE3 series three-phase asynchronous motors are based on the latest efficiency level of IEC60034-30. They are mainly used for machine tools, air blower/ ventilator, pump, compressor, transport machinery, construction machinery, etc.
Features:
a. High efficiency
b. Low noise and low vibration
c. compact structure
d. easy maintenance
e. Class F insulation, class B temperature rise.
e. comply with IEC60034-30, IEC60034-2, efficiency comply with GB18613-2012.
Operation conditions:
Rated power: 0.18Kw~375Kw
Poles: 2, 4, 6, 8, 10, 12.
Power supply: 380v/50Hz, or as customers' required ( 220v~480v, 50/60Hz)
Cooling method: IC411, totally enclosed fan cooled
Connection: Y(start) for 3Kw and below, Δ(delta) for over 3Kw
Duty: S1, continuous
Ambient temperature: -15- 40ºC
Altitude: =< 1000m;
Mounting: B3, B5,B35, B34,B14, B6, B7, B8
V1, V3, V5, V6, V15, V36, V18, V19
Model explaination: For example Y-80M1-2
Y : code for series (Y--ac asychronous motor, Y2--the second design of Y series motor, YE2--IE2 efficiency ac asychronous motor, YE3--IE3 efficiency ac asychronous motor );
80: Frame size 80mm;
M : code for core length
2 : code for pole number
Technical parameter:
For 380/50Hz, Y2 series motor only.
| Model | Power | Current | Speed | Efficiency | Power factor | Noise | Weight |
| KW | A | r/min | % | db | kg |
| Y2-80M1-2 | 0.75 | 1.83 | 2825 | 75.0 | 0.83 | 67 | 15 |
| Y2-80M2-2 | 1.1 | 2.61 | 2825 | 76.2 | 0.84 | 67 | 16 |
| Y2-90S-2 | 1.5 | 3.46 | 2840 | 78.5 | 0.84 | 72 | 20 |
| Y2-90L-2 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 72 | 24 |
| Y2-100L-2 | 3 | 6.34 | 2880 | 82.6 | 0.87 | 76 | 30 |
| Y2-112M-2 | 4 | 8.2 | 2890 | 84.2 | 0.88 | 77 | 38 |
| Y2-132S1-2 | 5.5 | 11.1 | 2900 | 85.7 | 0.88 | 80 | 56 |
| Y2-132S2-2 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 80 | 61 |
| Y2-160M1-2 | 11 | 21.2 | 2930 | 88.4 | 0.89 | 86 | 100 |
| Y2-160M2-2 | 15 | 28.6 | 2930 | 89.4 | 0.89 | 86 | 112 |
| Y2-160L-2 | 18.5 | 34.7 | 2930 | 90.0 | 0.9 | 86 | 134 |
| Y2-180M-2 | 22 | 41 | 2940 | 90.5 | 0.9 | 89 | 165 |
| Y2-200L1-2 | 30 | 55.4 | 2950 | 91.4 | 0.9 | 92 | 223 |
| Y2-200L2-2 | 37 | 67.9 | 2950 | 92.0 | 0.9 | 92 | 235 |
| Y2-225M-2 | 45 | 82.1 | 2970 | 92.5 | 0.9 | 92 | 286 |
| Y2-250M-2 | 55 | 100 | 2970 | 93.0 | 0.9 | 93 | 367 |
| Y2-280S-2 | 75 | 135 | 2970 | 93.6 | 0.9 | 94 | 475 |
| Y2-280M-2 | 90 | 160 | 2970 | 93.9 | 0.91 | 94 | 522 |
| Y2-315S-2 | 110 | 195 | 2980 | 94.0 | 0.91 | 96 | 855 |
| Y2-315M-2 | 132 | 233 | 2980 | 94.5 | 0.91 | 96 | 940 |
| Y2-315L1-2 | 160 | 279 | 2980 | 94.6 | 0.92 | 99 | 980 |
| Y2-315L2-2 | 200 | 348 | 2980 | 94.8 | 0.92 | 99 | 1060 |
| Y2-355M-2 | 250 | 434 | 2980 | 95.2 | 0.92 | 103 | 1650 |
| Y2-355L-2 | 315 | 545 | 2980 | 95.4 | 0.92 | 103 | 1850 |
| Y2-80M1-4 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 58 | 14 |
| Y2-80M2-4 | 0.75 | 2.05 | 1390 | 73.0 | 0.76 | 58 | 15 |
| Y2-90S-4 | 1.1 | 2.85 | 1400 | 76.2 | 0.77 | 61 | 20 |
| Y2-90L-4 | 1.5 | 3.68 | 1400 | 78.5 | 0.79 | 61 | 23 |
| Y2-100L1-4 | 2.2 | 5.09 | 1420 | 81.0 | 0.81 | 64 | 31 |
| Y2-100L2-4 | 3 | 6.73 | 1420 | 82.6 | 0.82 | 64 | 35 |
| Y2-112M-4 | 4 | 8.8 | 1440 | 84.2 | 0.82 | 65 | 42 |
| Y2-132S-4 | 5.5 | 11.7 | 1440 | 85.7 | 0.83 | 71 | 60 |
| Y2-132M-4 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 71 | 72 |
| Y2-160M-4 | 11 | 22.5 | 1460 | 88.4 | 0.84 | 75 | 109 |
| Y2-160L-4 | 15 | 30 | 1460 | 89.4 | 0.85 | 75 | 128 |
| Y2-180M-4 | 18.5 | 36.3 | 1470 | 90.0 | 0.86 | 76 | 159 |
| Y2-180L-4 | 22 | 42.9 | 1470 | 90.5 | 0.86 | 76 | 179 |
| Y2-200L-4 | 30 | 58 | 1470 | 91.4 | 0.86 | 79 | 234 |
| Y2-225S-4 | 37 | 70.2 | 1480 | 92.0 | 0.87 | 81 | 274 |
| Y2-225M-4 | 45 | 85 | 1480 | 92.5 | 0.87 | 81 | 304 |
| Y2-250M-4 | 55 | 103 | 1480 | 93.0 | 0.87 | 83 | 383 |
| Y2-280S-4 | 75 | 140 | 1480 | 93.6 | 0.87 | 86 | 513 |
| Y2-280M-4 | 90 | 167 | 1480 | 93.9 | 0.87 | 86 | 575 |
| Y2-315S-4 | 110 | 201 | 1480 | 94.5 | 0.88 | 93 | 840 |
| Y2-315M-4 | 132 | 240 | 1480 | 94.8 | 0.88 | 93 | 930 |
| Y2-315L1-4 | 160 | 288 | 1480 | 94.9 | 0.89 | 97 | 1060 |
| Y2-315L2-4 | 200 | 360 | 1480 | 94.9 | 0.89 | 97 | 1150 |
| Y2-355M-4 | 250 | 443 | 1490 | 95.2 | 0.9 | 101 | 1720 |
| Y2-355L-4 | 315 | 559 | 1490 | 95.2 | 0.9 | 101 | 1940 |
| Y2-80M1-6 | 0.37 | 1.3 | 900 | 62.0 | 0.7 | 54 | 13 |
| Y2-80M2-6 | 0.55 | 1.79 | 900 | 65.0 | 0.72 | 54 | 14 |
| Y2-90S-6 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 57 | 20 |
| Y2-90L-6 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 57 | 24 |
| Y2-100L-6 | 1.5 | 4 | 940 | 76.0 | 0.75 | 61 | 30 |
| Y2-112M-6 | 2.2 | 5.57 | 940 | 79.0 | 0.76 | 65 | 40 |
| Y2-132S-6 | 3 | 7.4 | 940 | 81.0 | 0.76 | 69 | 54 |
| Y2-132M1-6 | 4 | 9.8 | 940 | 82.0 | 0.76 | 69 | 68 |
| Y2-132M2-6 | 5.5 | 12.9 | 940 | 84.0 | 0.77 | 69 | 75 |
| Y2-160M-6 | 7.5 | 17.2 | 970 | 86.0 | 0.77 | 73 | 102 |
| Y2-160L-6 | 11 | 24.5 | 970 | 87.5 | 0.78 | 73 | 126 |
| Y2-180L-6 | 15 | 31.6 | 970 | 89.0 | 0.81 | 73 | 169 |
| Y2-200L1-6 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 76 | 215 |
| Y2-200L2-6 | 22 | 44.7 | 970 | 90.0 | 0.83 | 76 | 220 |
| Y2-225M-6 | 30 | 59.3 | 980 | 91.5 | 0.84 | 76 | 276 |
| Y2-250M-6 | 37 | 71.1 | 980 | 92.0 | 0.86 | 78 | 355 |
| Y2-280S-6 | 45 | 85.9 | 980 | 92.5 | 0.86 | 80 | 462 |
| Y2-280M-6 | 55 | 105 | 980 | 92.8 | 0.86 | 80 | 496 |
| Y2-315S-6 | 75 | 142 | 987 | 93.5 | 0.86 | 85 | 810 |
| Y2-315M-6 | 90 | 170 | 987 | 93.8 | 0.86 | 85 | 910 |
| Y2-315L1-6 | 110 | 207 | 987 | 94.0 | 0.86 | 85 | 1000 |
| Y2-315L2-6 | 132 | 245 | 987 | 94.2 | 0.87 | 85 | 1075 |
| Y2-355M1-6 | 160 | 292 | 980 | 94.5 | 0.88 | 92 | 1460 |
| Y2-355M2-6 | 200 | 365 | 980 | 94.5 | 0.88 | 92 | 1660 |
| Y2-355L-6 | 250 | 457 | 980 | 94.5 | 0.88 | 92 | 1880 |
| Y2-80M1-8 | 0.18 | 0.88 | 645 | 51.0 | 0.61 | 52 | 13 |
| Y2-80M2-8 | 0.25 | 1.15 | 645 | 54.0 | 0.61 | 52 | 15 |
| Y2-90S-8 | 0.37 | 1.49 | 675 | 62.0 | 0.61 | 56 | 19 |
| Y2-90L-8 | 0.55 | 2.17 | 675 | 63.0 | 0.61 | 56 | 22 |
| Y2-100L1-8 | 0.75 | 2.4 | 690 | 71.0 | 0.67 | 59 | 28 |
| Y2-100L2-8 | 1.1 | 3.32 | 690 | 73.0 | 0.69 | 59 | 31 |
| Y2-112M-8 | 1.5 | 4.4 | 700 | 75.0 | 0.69 | 61 | 39 |
| Y2-132S-8 | 2.2 | 6.04 | 710 | 78.0 | 0.71 | 64 | 54 |
| Y2-132M-8 | 3 | 7.9 | 710 | 79.0 | 0.73 | 64 | 63 |
| Y2-160M1-8 | 4 | 10.3 | 720 | 81.0 | 0.73 | 68 | 91 |
| Y2-160M2-8 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 68 | 103 |
| Y2-160L-8 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 68 | 128 |
| Y2-180L-8 | 11 | 25.1 | 730 | 87.5 | 0.76 | 70 | 165 |
| Y2-200L-8 | 15 | 34.1 | 730 | 88.0 | 0.76 | 73 | 224 |
| Y2-225S-8 | 18.5 | 41.1 | 730 | 90.0 | 0.76 | 73 | 255 |
| Y2-225M-8 | 22 | 47.4 | 730 | 90.5 | 0.78 | 73 | 292 |
| Y2-250M-8 | 30 | 63.4 | 730 | 91.0 | 0.79 | 75 | 368 |
| Y2-280S-8 | 37 | 77.8 | 740 | 91.5 | 0.79 | 76 | 470 |
| Y2-280M-8 | 45 | 94.1 | 740 | 92.0 | 0.79 | 76 | 520 |
| Y2-315S-8 | 55 | 111 | 740 | 92.8 | 0.81 | 82 | 780 |
| Y2-315M-8 | 75 | 151 | 740 | 93.0 | 0.81 | 82 | 950 |
| Y2-315L1-8 | 90 | 178 | 740 | 93.8 | 0.82 | 82 | 1025 |
| Y2-315L2-8 | 110 | 217 | 740 | 94.0 | 0.82 | 82 | 1080 |
| Y2-355M1-8 | 132 | 261 | 740 | 93.7 | 0.82 | 90 | 1510 |
| Y2-355M2-8 | 160 | 315 | 740 | 94.2 | 0.82 | 90 | 1670 |
| Y2-355L-8 | 200 | 387 | 740 | 94.5 | 0.83 | 90 | 1900 |
| Y2-315S-10 | 45 | 100 | 594 | 91.5 | 0.75 | 82 | 810 |
| Y2-315M-10 | 55 | 121 | 594 | 92.0 | 0.75 | 82 | 910 |
| Y2-315L1-10 | 75 | 162 | 594 | 92.5 | 0.76 | 82 | 1090 |
| Y2-315L2-10 | 90 | 191 | 594 | 93.0 | 0.77 | 82 | 1190 |
| Y2-355M1-10 | 110 | 230 | 590 | 93.2 | 0.78 | 90 | 1510 |
| Y2-355M2-10 | 132 | 275 | 590 | 93.5 | 0.78 | 90 | 1690 |
| Y2-355L-10 | 160 | 333 | 590 | 93.5 | 0.78 | 90 | 1860 |

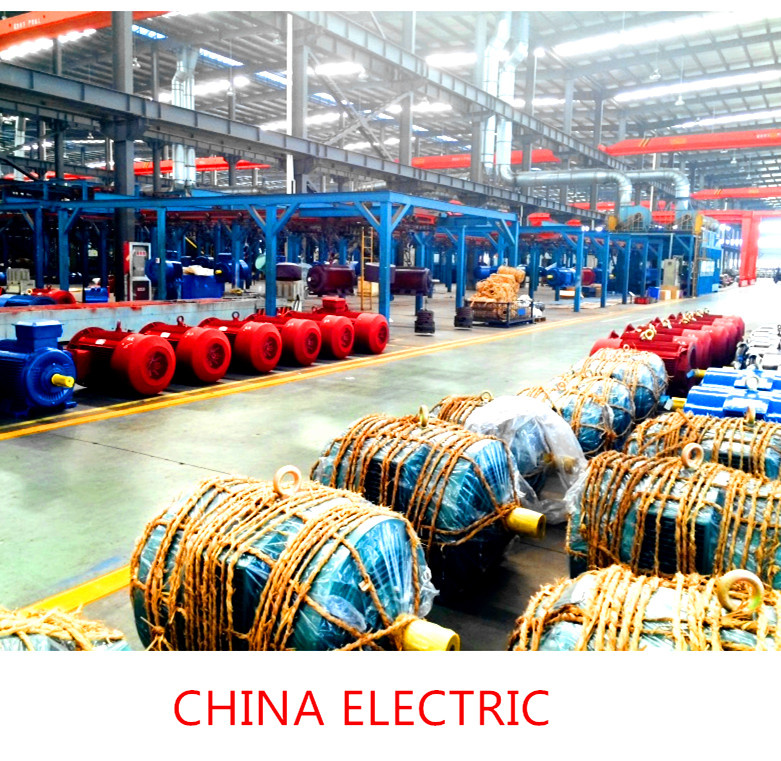

China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
