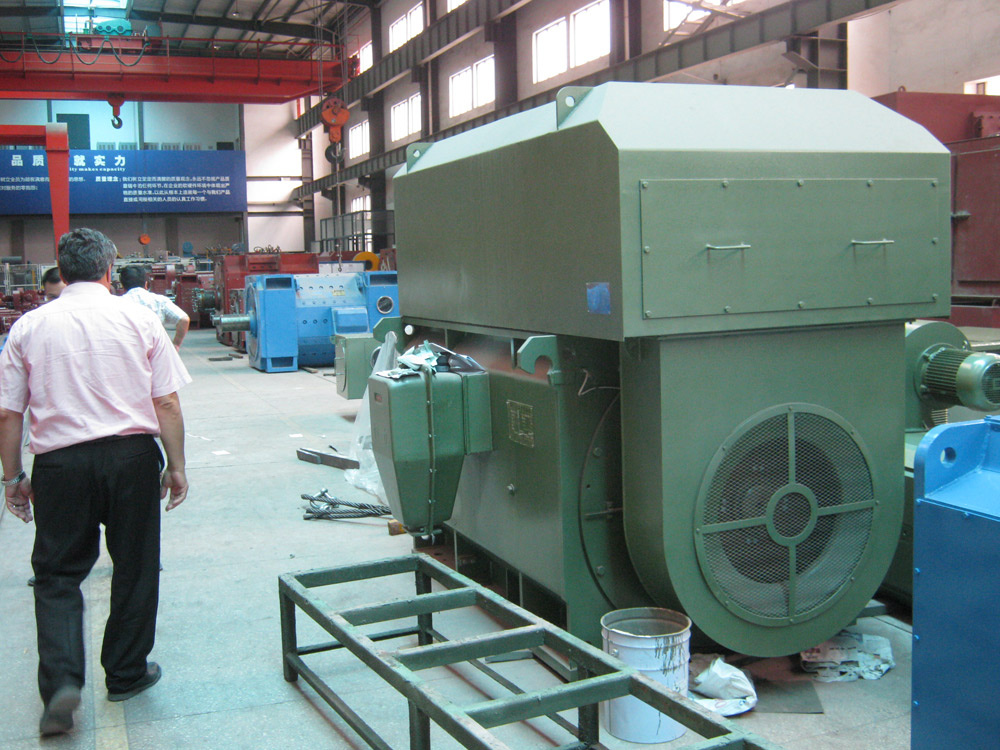

Y, Ykk, Yks, Y2 Series Medium/Large Size High Voltage AC Motor
| Price: |
US $ 30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Y, YKK, YKS, Y2 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia |
| Number Of Stator: |
Three-Phase |
| Operating Speed: |
Constant Speed |
| Application: |
Industrial |
| Casing Protection: |
Protection Type |
| Rotor Structure: |
Squirrel-Cage |
| Species: |
Y, Yks, Ykk, Y2 |
| Starting Mode: |
Dol |
Product Description
Y, YKK, YKS series Medium/Large Size High Voltage AC motor is suitable for poor surroundings, the site in high required protection and directly application of outdoor. The motors can drive water pump, compressor, transportation machinery and common used machinery.
Y, YKK, YKS series motors are permitted to start at full voltage. It is not allowed to make short circuit connection on rotor winding directly, it is necessary to regulate starting torque by the way of connecting starting transform.
The motor is design into box type construction. The frame is light in weight and good in rigid and is made of steel plates by melding. Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler inside motor. The primary cooling medium (air) can complete the heat exchange with secondary cooling medium in cooling pipe (circulation water) through outside surface of pipe in the cooler as well as spring etc. Heat transfer conductor.
The rotor winding of Y, YKS,YKK series motor is made of aluminum casting or copper bar.
Comparison of different series High Voltage motors
YKK Series, Air-Air cooling IC616, IP44/IP54/IP55
YKK Series, Air-Air cooling IC611, IP44/IP54/IP55
YKS Seires, Air-water coolig IC81W, IP44/IP54/IP55
N o.
|
Squirrel-cage motor
|
Y
|
YKK
|
YKS
|
Y2
|
Slip-ring motor
|
YR
|
YRKK
|
YRKS
|
/
|
1
|
Structure
|
Box-type construction, made up of steel plates welded with each other
|
Compact struction
|
2
|
Cooling method
|
IC01 or (IC11, IC21, IC31)
|
IC611 or IC616
|
IC81W
|
IC411
|
3
|
Natural ventilation, with top mounted protection cover
|
With top mounted air-air cooler
|
With top mounted air-water cooler
|
|
4
|
Protection type
|
IP23
|
IP44 or IP54
|
IP44 or IP54
|
IP54
|
5
|
Insulation
|
F
|
6
|
Mounting arrangement
|
IMB3
|
7
|
Voltage available
|
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv
|
8
|
Frequency available
|
50Hz , 60Hz
|
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
