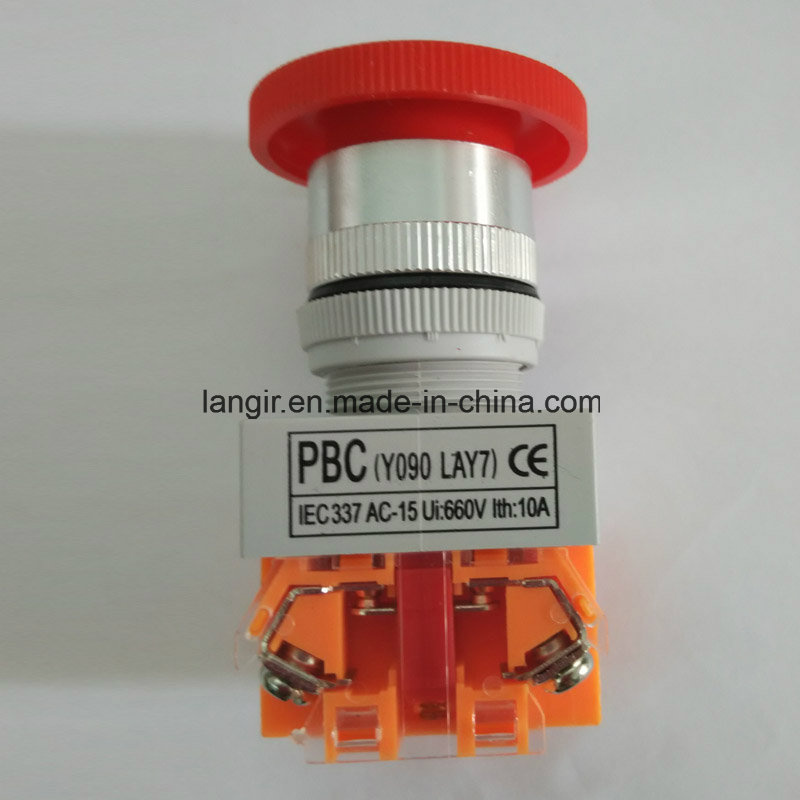

Y090 Plastic Emergency Push Button Switch

Name: Y090 Plastic Emergency Push Button Switch
Brand: all-electronics-online.com
SKU: 791582475
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y090-01
Function:	Normal Close
Switch Type:	Emergency Pushbutton
Type:	Normal Open
Usage:	Reset Button
Brand:	Langir
Certification:	RoHS

Product Description

More information ,please kindly visit our website :http://www.langirele.com/htm/push-buttons.htm

Switch Ratings

Type	Ui: 660V
Terminal	Ith: 10A
Current/ Voltage	24V	48V	110V	220V	380V	500V
Dielectric Strengh	10A	5A	2.2A	1.1A
Operation Temp.			10A	6A	4A	2A

Specifications

Operating Temperature		-25°C ~ +55°C(no freezing)
Operating Humidity		45 ~ 85%Rh(no condensation)
Contact Material		-silver -silver alloy -gold-clad silver, clading thickness is 3μm
Contact Resistance		≤50mΩ
Insulation Resistance		≥100MΩ
Dielectric Strength		3000V, AC50Hz
Vibration Resistance		50Hz,Amplitude 1.0mm p-p
Shock Resistance		≥10g
Life	Mechanical	Momentary type: 1 000 000 times. Alternate type,selector type: 500 000times. Key-lock type, emergency type: 200 000 times
	Electrical	≥50,000 times
Terminal		Thread connection,diameter of welded wire: 2×1.5mm max Connecting link:6.3× 0.8mm
Operation		Operating Force: 800gf ~ 2200gf (according to the quantity of switch units) Operating Travel:About 5.5mm (Pushbuttons)

Note:

1. Normal configuration of Lamp: Using LED without power box if below 60V, and if above 60V we suggest you choose the power box. Other special voltage of lamp can be customized.
2. The lamp contains current-limiting resistor inside.
3. Illuminated pushbutton is AC / DC universal two-way LED lamp, DC one-way, special voltage, and bi-color can be customized.

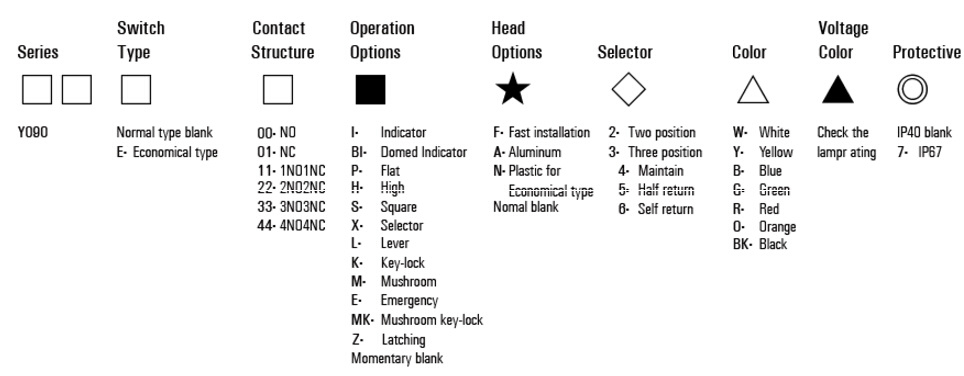

Note:Φ25 diameterand Φ30 diameter of this series product should be installed with diameter changing circleand please add 'Φ25' or 'Φ30' behind the part number.
