Y2 Ms Electric Three Phase Asynchronous Squirrel-Cage Induction Motors Induction Motor
| Price: |
US $ 282/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
MS-160L-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rating: |
Continuous (S1) |
| Cooling Type: |
IC411 |
| Insulation Class: |
F |
| Ambient Temperature: |
-15senti Degree≤ 0≤ 40senti Degree |
| Rated Voltage: |
380V, 220/380V, 380/660V, 400V, 415V |
| Rated Frequency: |
50Hz or 60 Hz |
| Color: |
Blue/Red/Grey etc. |
| Mini Order: |
50units |
| Delivery Time: |
20 Days Later After Receiving Deposit |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
CE |
| Brand: |
Hengsu Shilin |
Product Description

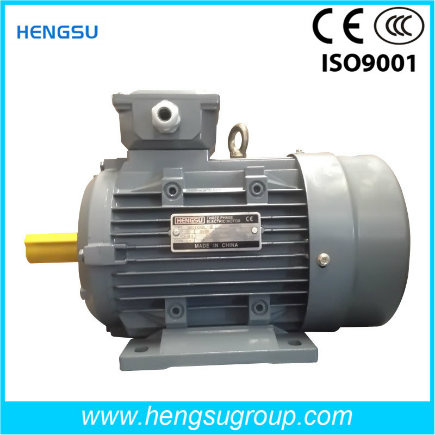

MS Series Three Phase Aluminum Body AC Electric Induction MotorY2 series AL-housing(MS series) three phase asynchronous motors are developed from Y2 series three phase asynchronous motors, use aluminum-alloy material has been introduced into its housing, endshield, terminal box and removable feet, Despite that, dimensions and rated output of Y2 series AL-housing motors are the same as those of Y2 series three phase asynchronous motors.
Y2 series AL-housing motors have lots of futures such as high effciency and energy saving, large starting torque, excellent performance, low noise and vibration, compact structure, high reliablity, easy operation, owns a beautiful appearance and smooth surface and etc.Detail:Operating conditionsAmbient temperature:
-20senti degree≤ 0≤ 40senti degreeAltitude:lower than 1000 meters above sea level Temperature and Insulation classMotors are based on F (155ºC) ,B (80K), to keep motor life and reliability Cooling and VentilationFully enclosed self fan cooling(TEFC). Motor is fixed with auxiliary flow typePlastic fan which is complying with the provisions of 60034-6 IEC Ic411 Insulation classMotor protection class is Ip55 which can be used for dust or humidityenvironment, and we can provide a higher level of protection of motor Motor protectionAS need, motor can be installed of PTC, Pt100 and other winding resistance and Bearing temperature measurement and protection device. Voltage and frequencyThe standard voltage is 380V/50Hz.which can be designed among200-600V, in the case of deviation 5%, the motor still can work good. Vibration Vibration speed of MS series motor in the no-load is in line with class A,special requirement, we can provide class B. Terminals block box locationThe terminal block box is on the top or one the right side as the standardMS series motor. Quality assuranceFrom design to produce factory, we strictly follow the ISO9001 qualitycertification system and procedures.
Hengsu Holdings Co., Ltd. is located in Zhejiang Yangtze River Delta, one of the most dynamic cities - Taizhou Economic Development Zone. There are three subsidiary companies: Sanmen Hengsu Motor Co., Ltd., Zhejiang Hengsu Electric Motor Co., Ltd., Jiangsu Shilin Electric Motor Co., Ltd., having total land area of more than 200000m2, a building area of 100000m2, jointly established the production of small and medium-sized production base for kinds of electric motors
The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor, and the derivative of YB2 series explosion-proof motor, YEJ series electromagnetic brake motor, YVF series frequency adjustable-speed motor, YCT series electromagnetic adjustable-speed motor, YD series pole-changing multi-speed motor, YHSD series soft-start electromagnetic, HS series buffer deceleration motor products; And IEC standard YC and YL single phase electric motor, annual output capacity of 4, 000, 000 kilowatts.
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system implementation of comprehensive-our products have got CE, SGS, and CCC certificate. Companies in innovation, creating value for customers of the purpose and dedication to providing our customers with high quality products and best services
