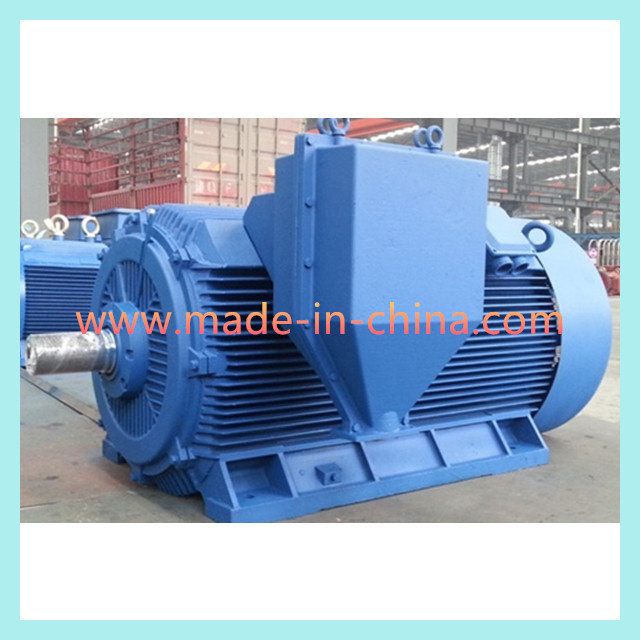

Y2 Series High Voltage Compact Structure AC Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
Y2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting: |
Imb3 |
| Cooling: |
IC411 (Tefc) |
| Protection Rating: |
IP54, IP55 |
| Insulation Class: |
F |
| Frame Material: |
Cast Iron |
| Voltage: |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
| Pole: |
2~8 |
| Frame Size: |
355~560 |
| Rated Power: |
185kw~1600kw |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
China Electric |
Product Description
1.Y2, YJS Series 6 Kv, 10 Kv, 11 Kv High Voltage Electric Motor
Y2, YJS series medium-size 6 Kv, 10 Kv, 11 Kv high voltage Electric Motors are 3-phase Squirrel cage asynchronous motors and have good performance such as efficiency, energy conservation, lower noise, slight vibration, reliable operation, convenient installation and maintenance.
Y2, YJS series 6 Kv, 10 Kv, 11 Kv High Voltage Electric motors are suitable for driving compressor, water pump, crack machine, cut machine, transportation machine and other equipments. It is also used as the primitive drive for the mine mechanical industry, petroleum & chemistry industry, power plant and so on.
The motor has the cast iron round shape motor body construction, which was made up of cast iron with each other, light weight and good stiffness. Convenient to maintenance and replacement. The stator adopts the press construction. The winding is with class F insulation and VPI impregnating, which ensures the reliable of the insulation, the mechanical stress and the capable of resistant humidity.
2.Technical parameters:
Comparison of different series 6 Kv, 10 Kv, 11 Kv High Voltage Electric motors
No. |
Squirrel-cage motor |
Y |
YKK |
YKS |
Y2 YJS |
Slip-ring motor |
YR |
YRKK |
YRKS |
/ |
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
2 |
Cooling method |
IC01 or (IC11, IC21, IC31) |
IC611 or IC616 |
IC81W |
IC411 |
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
|
4 |
Protection type |
IP23 |
IP44 or IP54 |
IP44 or IP54 IP55 |
IP54 IP55 |
5 |
Insulation |
F |
6 |
Mounting arrangement |
IMB3 |
7 |
Voltage available |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
8 |
Frequency available |
50Hz , 60Hz |
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.
Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
