| Prod Model: |
Y2 |
| Material: |
Cast Iron&Aluminum Body |
| Stator Material: |
195&800 Stator |
| Application: |
Car |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Certification: |
Ce |
| Number Of Poles: |
2-10 |
Product Description
Detailed Info
Totally enclosed fan cooled (TEFC), squirrel cage type three phase induction motors developed with new technique. They are renewal and upgrading products of Y series. They mounting dimension is fully confirmed with IEC standard.
Advantage:
Of beautiful modeling, compact structure, low noise, high efficiency, and large starting torque, etc. The motors are adopted with f class insulation and designed with assessing method for insulation system according the international practice. It greatly enhances motor's safety and reliability. These motors have reached and international advanced level of 1990s.
Usage:
It is widely used in various machines and equipments, such as drilling machines, Blowers, pumps, compressors, transporters, agricultural and food processing machines.
1. Altitude: not exceed 1000m
2. Ambient Temperature: not exceed 40
3. Insulation class: E
4. Motors used in the temperature zones need three preventive measures
5. Payment items: TT% in advance payment and the balance is paid before shipping goods.

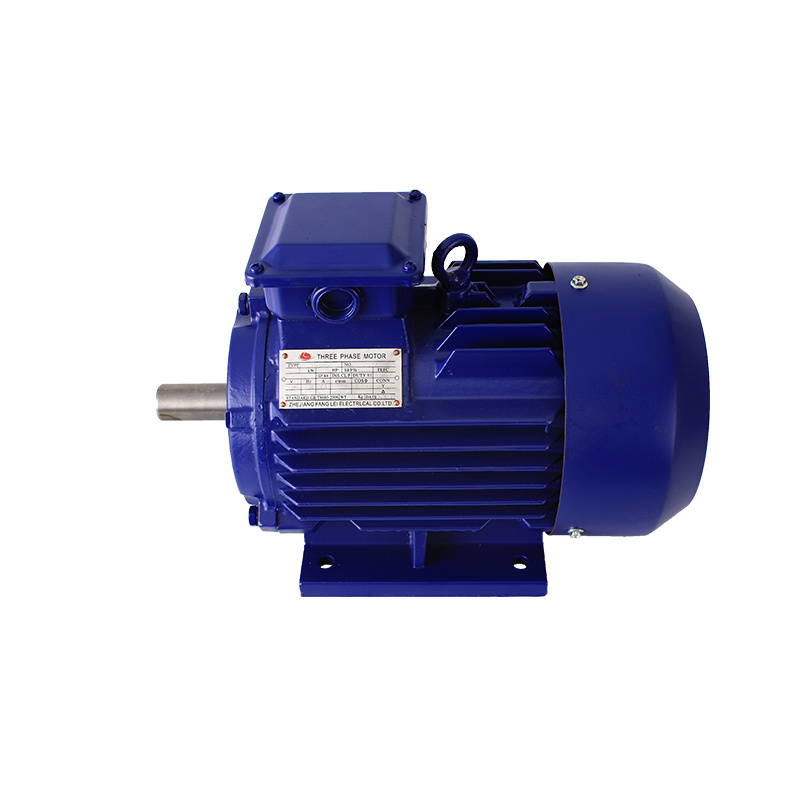

Y2 series motors are totally en closed and fan cooled(TEFC),three-phase squirrel cage induction motors,developed with new technique.They are renewal and upgrading products of Y series.The mounting dimension is conformed with the relevant requirements of IEC stadards.
Y2 series motors have the merits of beautiful modeling,compact structure,low noise, high efficiency,large startingtorque,easy serving,etc.The moters are adopted with F class insulation and designed with assenssing method for insulation system according to
intermational advanced level of 1990s.
Y2 series motors are widely used in many places,such as drilling machines,pumps,fans,mixer,transport machines,food machines,agriculture machines and equipments.etc.
The central height: 63~355mm
Power range: 0.12~315kW
Rated voltage: 380V(other voltage must be separately)
Rated frequency: 50Hz or 60Hz
Protection grade:IP54 / IP55
Insulation grade: F
Business: S1
Model | Output | Full load | Stall current ____________ Rated current
Ist/IN | Stall torque _____________ Rated torque
Tst/TN | Maximum torque _______________ Rated torque
Tmax/TN |
(kW) | Current
IN(A) | Speed
(r/min) | Efficiency
η(%) | Power factor
(cosφ) |
Synchronous speed 3000r/min (2P) |
Y2-631-2 | 0.18 | 0.53 | 2730 | 65.0 | 0.80 | 2.2 | 5.5 | 2.2 |
Y2-632-2 | 0.25 | 0.69 | 2825 | 68.0 | 0.81 | 2.2 | 5.5 | 2.2 |
Y2-711-2 | 0.37 | 0.99 | 2755 | 70.0 | 0.81 | 2.2 | 6.1 | 2.2 |
Y2-712-2 | 0.55 | 1.40 | 2790 | 73.0 | 0.82 | 2.2 | 6.1 | 2.3 |
Y2-801-2 | 0.75 | 1.83 | 2845 | 70.5 | 0.83 | 2.2 | 6.1 | 2.3 |
Y2-802-2 | 1.1 | 2.55 | 2840 | 77.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-90S-2 | 1.5 | 3.39 | 2840 | 79.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-90L-2 | 2.2 | 4.80 | 2840 | 81.0 | 0.85 | 2.2 | 7.0 | 2.3 |
Y2-100L-2 | 3.0 | 6.31 | 2860 | 83.0 | 0.87 | 2.2 | 7.5 | 2.3 |
Y2-112M-2 | 4.0 | 8.22 | 2880 | 85.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-132S1-2 | 5.5 | 11.2 | 2910 | 86.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-132S2-2 | 7.5 | 15.1 | 2900 | 87.0 | 0.88 | 2.2 | 7.5 | 2.3 |
Y2-160M1-2 | 11 | 21.3 | 2920 | 88.0 | 0.89 | 2.2 | 7.5 | 2.3 |
Y2-160M2-2 | 15 | 28.8 | 2920 | 89.0 | 0.89 | 2.2 | 7.5 | 2.3 |
Y2-160L-2 | 18.5 | 34.7 | 2920 | 90.0 | 0.90 | 2.2 | 7.5 | 2.3 |
Y2-180M-2 | 22 | 41.0 | 2930 | 90.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-200L1-2 | 30 | 55.5 | 2940 | 91.2 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-200L2-2 | 37 | 67.9 | 2940 | 92.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-225M-2 | 45 | 82.1 | 2960 | 92.3 | 0.9 | 2.0 | 7.5 | 2.3 |
Y2-250M-2 | 55 | 100.1 | 2960 | 92.5 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-280S-2 | 75 | 133.9 | 2960 | 93.0 | 0.90 | 2.0 | 7.5 | 2.3 |
Y2-280M-2 | 90 | 160.2 | 2960 | 93.8 | 0.91 | 2.0 | 7.5 | 2.3 |
Y2-315S-2 | 110 | 195.4 | 2970 | 94.0 | 0.91 | 1.8 | 7.1 | 2.2 |
Y2-315M-2 | 132 | 233.2 | 2970 | 94.5 | 0.91 | 1.8 | 7.1 | 2.2 |
Y2-315L1-2 | 160 | 279.3 | 2970 | 94.6 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-315L2-2 | 200 | 347.7 | 2970 | 94.8 | 0.92 | 1.8 | 7.1 | 2.2 |
Y2-355M-2 | 250 | 432.3 | 2970 | 95.3 | 0.92 | 1.6 | 7.1 | 2.2 |
Y2-355L-2 | 315 | 543.0 | 2970 | 95.6 | 0.92 | 1.6 | 7.1 | 2.2 |
Model | Output | Full load | Stall current ____________ Rated current
Ist/IN | Stall torque _____________ Rated torque
Tst/TN | Maximum torque _______________ Rated torque
Tmax/TN |
(kW) | Current
IN(A) | Speed
(r/min) | Efficiency
η(%) | Power factor
(cosφ) |
Synchronous speed 1500r/min (4P) |
Y2-631-4 | 0.12 | 0.44 | 1315 | 57.0 | 0.72 | 2.1 | 4.4 | 2.2 |
Y2-632-4 | 0.18 | 0.62 | 1315 | 60.0 | 0.73 | 2.1 | 4.4 | 2.2 |
Y2-711-4 | 0.25 | 0.79 | 1345 | 65.0 | 0.74 | 2.1 | 5.2 | 2.2 |
Y2-712-4 | 0.37 | 1.12 | 1340 | 67.0 | 0.75 | 2.1 | 5.2 | 2.2 |
Y2-801-4 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 2.4 | 5.2 | 2.3 |
Y2-802-4 | 0.75 | 2.03 | 1380 | 73.0 | 0.76 | 2.3 | 6.0 | 2.3 |
Y2-90S-4 | 1.1 | 2.86 | 1390 | 78.0 | 0.79 | 2.3 | 6.0 | 2.3 |
Y2-90L-4 | 1.5 | 3.70 | 1390 | 78.30 | 0.79 | 2.3 | 6.0 | 2.3 |
Y2-100L1-4 | 2.2 | 5.16 | 1410 | 80.0 | 0.81 | 2.3 | 7.0 | 2.3 |
Y2-100L2-4 | 3.0 | 6.78 | 1410 | 82.0 | 0.82 | 2.3 | 7.0 | 2.3 |
Y2-112M-4 | 4.0 | 8.82 | 14.5 | 84.0 | 0.82 | 2.3 | 7.0 | 2.3 |
Y2-132S-4 | 5.5 | 11.7 | 1445 | 85.0 | 0.83 | 2.3 | 7.0 | 2.3 |
Y2-132M-4 | 7.5 | 15.6 | 1445 | 87.0 | 0.84 | 2.3 | 7.0 | 2.3 |
Y2-160M-4 | 11 | 22.3 | 1450 | 88.0 | 0.84 | 2.2 | 7.0 | 2.3 |
Y2-160L-4 | 15 | 30.1 | 1450 | 89.0 | 0.85 | 2.2 | 7.5 | 2.3 |
Y2-180M-4 | 18.5 | 36.5 | 1460 | 90.5 | 0.86 | 2.2 | 7.5 | 2.3 |
Y2-180L-4 | 22 | 43.1 | 1460 | 91.0 | 0.86 | 2.2 | 7.5 | 2.3 |
Y2-200L-4 | 30 | 57.6 | 1460 | 92.0 | 0.86 | 2.2 | 7.2 | 2.3 |
Y2-225S-4 | 37 | 69.9 | 1470 | 92.5 | 0.87 | 2.2 | 7.2 | 2.3 |
Y2-225M-4 | 45 | 84.5 | 1470 | 92.8 | 0.87 | 2.2 | 7.2 | 2.3 |
Y2-250M-4 | 55 | 103.1 | 1470 | 93.0 | 0.87 | 2.2 | 7.2 | 2.3 |
Y2-280S-4 | 75 | 139.6 | 1470 | 93.8 | 0.87 | 2.2 | 7.2 | 2.3 |
Y2-280M-4 | 90 | 166.9 | 1470 | 94.2 | 0.87 | 2.2 | 7.2 | 2.3 |
Y2-315S-4 | 110 | 201 | 1480 | 94.5 | 0.88 | 2.1 | 6.9 | 2.2 |
Y2-315M-4 | 132 | 240.4 | 1480 | 94.8 | 0.88 | 2.1 | 6.9 | 2.2 |
Y2-315L1-4 | 160 | 287.8 | 1480 | 94.9 | 0.89 | 2.1 | 6.9 | 2.2 |
Y2-315L2-4 | 200 | 358.6 | 1480 | 95.0 | 89.0 | 2.1 | 6.9 | 2.2 |
Y2-355M-4 | 250 | 441.9 | 1480 | 95.3 | 0.90 | 2.1 | 6.9 | 2.2 |
Y2-355L-4 | 315 | 555.1 | 1480 | 95.6 | 0.90 | 2.1 | 6.9 | 2.2 |
Modell | Output | Full load | Stall current ____________ Rated current
Ist/IN | Stall torque _____________ Rated torque
Tst/TN | Maximum torque _______________ Rated torque
Tmax/TN |
(kW) | Current
IN(A) | Speed
(r/min) | Efficiency
η(%) | Power factor
(cosφ) |
Synchronous speed 3000r/min (2P) |
Y2-711-6 | 0.18 | 0.74 | 860 | 56.0 | 0.66 | 1.9 | 4.0 | 2.0 |
Y2-712-6 | 0.25 | 0.95 | 860 | 59.0 | 0.68 | 1.9 | 4.0 | 2.0 |
Y2-801-6 | 0.37 | 1.30 | 885 | 62.0 | 0.70 | 1.9 | 4.7 | 2.0 |
Y2-802-6 | 0.55 | 1.79 | 885 | 65.0 | 0.72 | 1.9 | 4.7 | 2.1 |
Y2-90S-6 | 0.75 | 2.26 | 910 | 69.0 | 0.72 | 2.0 | 5.5 | 2.1 |
Y2-90L-6 | 1.1 | 3.14 | 910 | 72.0 | 0.73 | 2.0 | 5.5 | 2.1 |
Y2-100L-6 | 1.5 | 3.95 | 920 | 76.0 | 0.75 | 2.0 | 5.5 | 2.1 |
Y2-112M-6 | 2.2 | 5.57 | 935 | 79.0 | 0.76 | 2.0 | 6.5 | 2.1 |
Y2-132S-6 | 3.0 | 7.4 | 965 | 81.0 | 0.76 | 2.1 | 6.5 | 2.1 |
Y2-132M1-6 | 4.0 | 9.63 | 965 | 82.0 | 0.76 | 2.1 | 6.5 | 2.1 |
Y2-132M2-6 | 5.5 | 12.9 | 965 | 84 | 0.77 | 2.1 | 6.5 | 2.1 |
Y2-160M-6 | 7.5 | 17.0 | 970 | 86.0 | 0.77 | 2.0 | 6.5 | 2.1 |
Y2-160L-6 | 11 | 24.3 | 970 | 87.5 | 0.78 | 2.0 | 7.0 | 2.1 |
Y2-180L-6 | 15 | 31.6 | 970 | 89.0 | 0.81 | 2.0 | 7.0 | 2.1 |
Y2-200L1-6 | 18.5 | 38.1 | 970 | 90.0 | 0.81 | 2.1 | 7.0 | 2.1 |
Y2-200L2-6 | 22 | 44.5 | 970 | 90.0 | 0.83 | 2.1 | 7.0 | 2.1 |
Y2-225M-6 | 30 | 58.6 | 970 | 91.5 | 0.84 | 2.0 | 7.0 | 2.1 |
Y2-250M-6 | 37 | 71.1 | 970 | 92.0 | 0.86 | 2.1 | 7.0 | 2.1 |
Y2-280S-6 | 45 | 85.9 | 970 | 92.5 | 0.86 | 2.1 | 7.0 | 2.0 |
Y2-280M-6 | 55 | 104-7 | 970 | 92.8 | 0.86 | 2.1 | 7.0 | 2.0 |
Y2-280M1-6 | 75 | 169.5 | 980 | 93.8 | 0.86 | 2.0 | 7.0 | 2.0 |
Y2-315S-6 | 75 | 206.7 | 980 | 94 | 0.86 | 2.0 | 6.7 | 2.0 |
Y2-315M-6 | 90 | 244.7 | 980 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 |
Y2-315L1-6 | 110 | 291.4 | 980 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 |
Y2-315L2-6 | 132 | 244.7 | 980 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 |
Y2-355M1-6 | 160 | 291.4 | 980 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 |
Y2-355M2-6 | 200 | 363.5 | 980 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 |
Y2-355L-6 | 250 | 453.4 | 980 | 94.9 | 0.88 | 1.9 | 6.7 | 2.0 |
Model | Output | Full load | Stall current ____________ Rated current
Ist/IN | Stall torque _____________ Rated torque
Tst/TN | Maximum torque _______________ Rated torque
Tmax/TN |
(kW) | Current
IN(A) | Speed
(r/min) | Efficiency
η(%) | Power factor
(cosφ) |
Y2-802-8 | 0.25 | 0.88 | 645 | 51.0 | 0.61 | 1.8 | 3.0 | 1.9 |
Y2-90S-8 | 0.37 | 1.15 | 645 | 54.0 | 0.61 | 1.8 | 3.3 | 1.9 |
Y2-90L-8 | 0.55 | 1.49 | 670 | 62.0 | 0.61 | 1.8 | 4.0 | 1.9 |
Y2-100L1-8 | 0.75 | 2.17 | 670 | 63.0 | 0.61 | 1.8 | 4.0 | 2.0 |
Y2-100L2-8 | 1.1 | 2.43 | 680 | 71.0 | 0.67 | 1.8 | 4.0 | 2.0 |
Y2-112M-8 | 1.5 | 2.41 | 680 | 73.0 | 0.69 | 1.8 | 5.0 | 2.0 |
Y2-132S-8 | 2.2 | 4.47 | 690 | 75.0 | 0.69 | 1.8 | 6.0 | 2.0 |
Y2-132M-8 | 3.0 | 6.04 | 7.5 | 78.0 | 0.71 | 1.8 | 6.0 | 2.0 |
Y2-160M1-8 | 4.0 | 7.90 | 705 | 79.0 | 0.73 | 1.9 | 6.0 | 2.0 |
Y2-160M2-8 | 5.5 | 10.3 | 710 | 81.0 | 0.73 | 1.9 | 6.0 | 2.0 |
Y2-160L-8 | 7.5 | 13.6 | 710 | 83.0 | 0.74 | 2.0 | 6.0 | 2.0 |
Y2-180L-8 | 11 | 25.3 | 720 | 87.5 | 0.76 | 2.0 | 6.6 | 2.0 |
Y2-200L-8 | 15 | 34.1 | 720 | 88.0 | 0.76 | 2.0 | 6.6 | 2.0 |
Y2-225S-8 | 18.5 | 40.6 | 720 | 90.0 | 0.76 | 1.9 | 6.6 | 2.0 |
Y2-225M-8 | 22 | 47.4 | 720 | 90.5 | 0.78 | 1.9 | 6.6 | 2.0 |
Y2-250M-8 | 30 | 63.4 | 720 | 91.0 | 0.79 | 1.9 | 6.6 | 2.0 |
Y2-280S-8 | 37 | 77.2 | 730 | 91.5 | 0.79 | 1.9 | 6.6 | 2.0 |
Y2-280M-8 | 45 | 92.9 | 730 | 92.0 | 0.81 | 1.8 | 6.6 | 2.0 |
Y2-315S-8 | 55 | 111.2 | 740 | 92.8 | 0.81 | 1.8 | 6.6 | 2.0 |
Y2-315M-8 | 75 | 151.3 | 740 | 93.0 | 0.81 | 1.8 | 6.6 | 2.0 |
Y2-315L1-8 | 90 | 177.8 | 740 | 93.8 | 0.82 | 1.8 | 6.6 | 2.0 |
Y2-315L2-8 | 110 | 216.8 | 740 | 94.0 | 0.82 | 1.8 | 6.4 | 2.0 |
Y2-355M1-8 | 132 | 260.2 | 740 | 93.7 | 0.82 | 1.8 | 6.4 | 2.0 |
Y2-355M2-8 | 160 | 309.9 | 740 | 94.2 | 0.82 | 1.8 | 6.4 | 2.0 |
Y2-355L1-8 | 200 | 386 | 740 | 94.5 | 0.83 | 1.8 | 6.4 | 2.0 |
Synchronous speed 600r/min (10P) |
Y2-315S-10 | 45 | 565 | 91.5 | 0.75 | 1.5 | 6.2 | 2.0 | 0.8 |
Y2-315M-10 | 55 | 565 | 92.0 | 0.75 | 1.5 | 6.2 | 2.0 | 0.8 |
Y2-315L1-10 | 75 | 565 | 92.5 | 0.76 | 1.5 | 6.2 | 2.0 | 0.8 |
Y2-315L2-10 | 90 | 565 | 93.0 | 0.77 | 1.5 | 6.2 | 2.0 | 0.8 |
Y2-315M1-10 | 110 | 570 | 93.2 | 0.78 | 1.3 | 6.0 | 2.0 | 0.8 |
Y2-315M2-10 | 132 | 570 | 93.5 | 0.78 | 1.3 | 6.0 | 2.0 | 0.8 |
Y2-355L-10 | 160 | 570 | 93.5 | 0.78 | 1.3 | 6.0 | 2.0 | 0.8 |
Zhejiang Fanglei Machine & Electric Co., Ltd. is located in Zhejiang, East China Sea in Taizhou. Ointly established the production of small and medium-sized production base for kinds of electric motors. The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor
History: 25 years experience of manufacturing stator, motor, water pumps;
Scale: Covers working area of 6, 000 square meters. Have more than 200 employees;
Technology: A group of professional technical engineers and a strong R&D team;
Management: Scientific management and strict quality control system;
Equipments: Advanced automatic production line and test equipment;
Innovation: Continuously diversify products range to satisfy customers'needs, Production capacity: 30, 000 PCS/month;
Marketing network: Europe, Asia, Africa, America, etc;
Certificate: CE, GS, RoHS, IS09001: 2008,
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system
