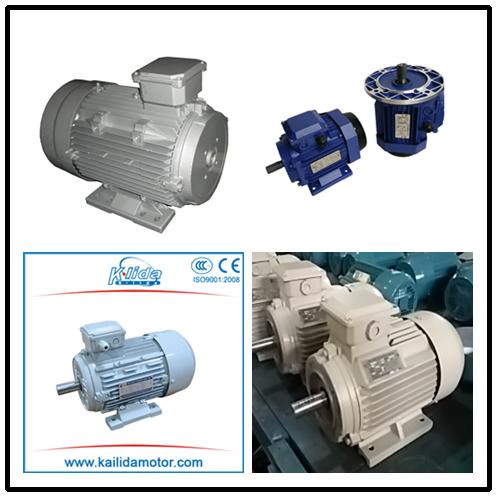

Y2 Series Three Phase Induction Electric Motor (cast iron) with Ce, CCC

Product Description

Motor Features:

1, Frame Size: 63-355 MM;

2, Rated Output: 0.12-315 KW or 0.15-465 HP;

3, Rated Voltage: 380/660 V or to be your request;

4, Rated Frequency: 50 Hz,60 Hz,50 Hz / 60 Hz;

5, Poles: 2 / 4 / 6 / 8 / 10;

6, Speed: 590 -2980 r/min

7, Ambient Temperature: -15°C-40°C

8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;

9, Mounting:  B3; B35; B34; B14; B5; V1;

10, Current: 1.5-465 A (AC);

11, Duty: continuous (S1);

12, Insulation Class: B / F;

13, Protection Class: IP54 / IP55;

14, Cooling Method: ICO 141 Standards;

15, Altitude: No more than 1,000 meters above sea level;

16, Packing: 1pc in a Strong carton several cartons on a Pallet.

Kailida motors advantage:

• Prompt Quotation.
• Competitive Price
• Guaranteed Quality
• Timely Delivery.
• 100% Tested.
• Sincere and Professional Service.
• Outstanding Finishing Surface.
• Strictly and Perfect Management is guaranteed for Production.
• Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
• Have Rich Experience and Strong ability to Develop New Products.
• Have Ability to Design the Products Based on Your Original Samples.
•

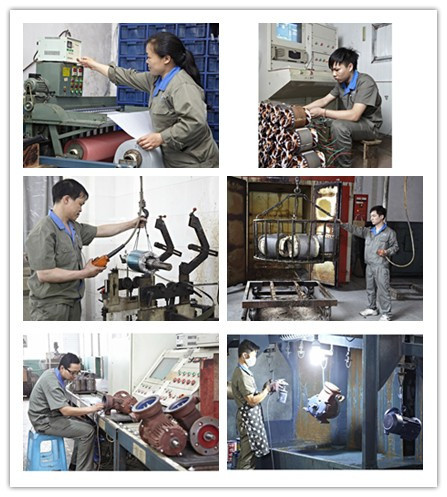

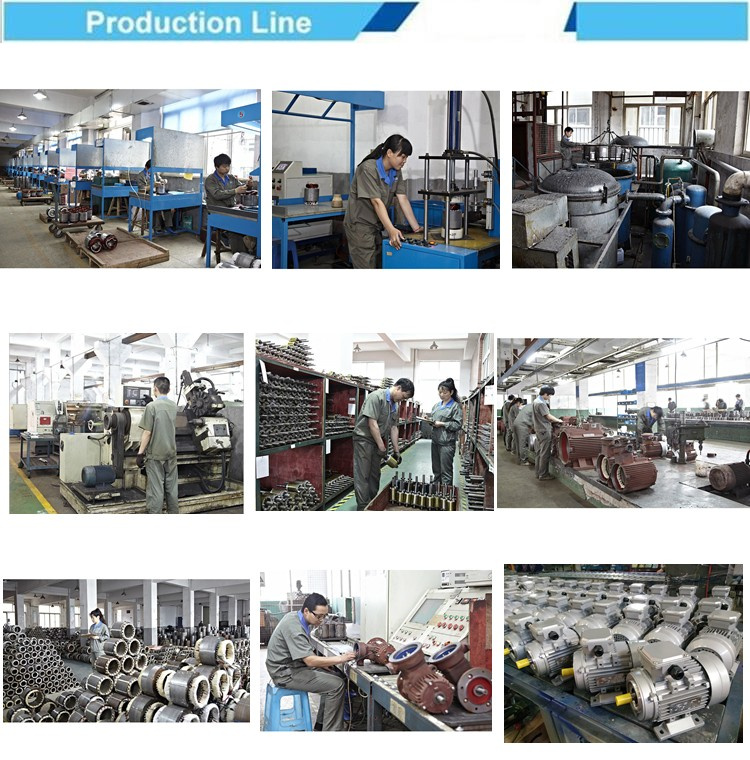

WHAT WE DO AT KAILIDA
Stamping of lamination
Rotor die-casting
Winding and inserting -both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc^
Rotor balancing
Motor assembly
Painting - both wet paint and powder coating
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.


WHAT KAILIDA CAN DO FOR CUSTOMERS
Kailida supplies standard products to customers.
Kailida supplies standard products under customers' brands and packaging, etc
Kailida R&D department develops any new products together with the customers.
We Promise you all the time after you working with us for Win-Win Business.
Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.
