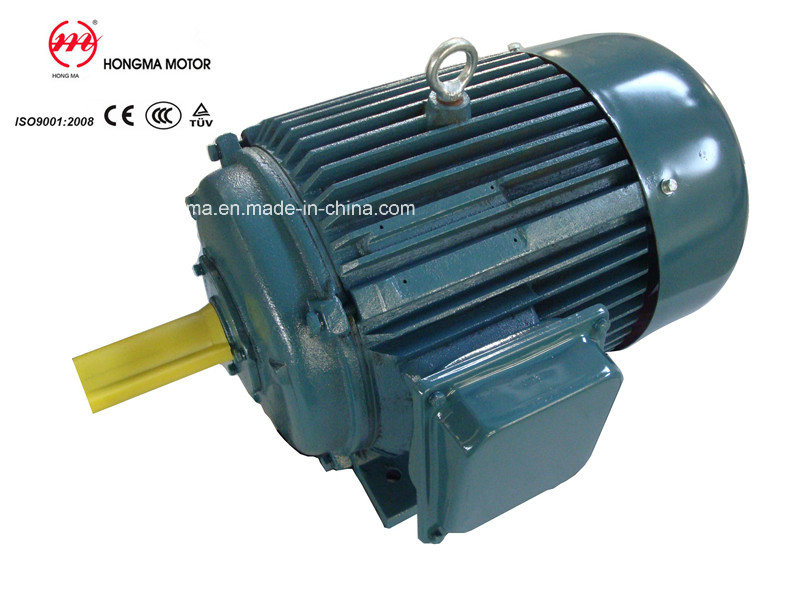

Y2d Series/Y2d Three Phase Multispeed Induction Asynchronous Motor with Y2ID, Y2ad, Y2yd/Doublespeed Motor

Name: Y2d Series/Y2d Three Phase Multispeed Induction Asynchronous Motor with Y2ID, Y2ad, Y2yd/Doublespeed Motor
Brand: all-electronics-online.com
SKU: 779508035
Availability: InStock
Rating: 4.8 (150 reviews)

Price:	US $ 60-1500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2D-80M1-4P/2P-0.45/0.55----Y2D-280M-12P/6P-24/37
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency Class:	Eff2
Frame Size:	H80-280
Rated Power:	0.45-72kw
Frequency:	50Hz, 60Hz
Insulation Class:	B\F\H
Rated Voltage:	220/380V, 380/660V, 230/400V, 400V/690
Protection Class:	IP54 IP55 IP44
Application:	Power Tools
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Species:	Yd Series
Number Of Poles:	2/4, 4/6, 4/8, 6/8, 6/12, 2/4/6, 2/4/8, 4/6/8, 4/6/8/12 Po
Certification:	CE
Brand:	Hongma

Product Description

MD (YD)series 3 phase multispeed induction motorderives from Y2 series motor, and it switches poles and output power by transforming the joint mode of winding to matching to the load performance of mechanical equipment. It complies with IEC standard on noise, start torque, vibration value and mounting and overall dimensions. The motors are characteristic in small size, light, stable, firm structure ,good appearance and so on .

  Features and Benefits:
Efficiency Class:EFF2
Frame Size: H80-280
Poles:2/4,4/6,4/8,6/8,6/12,2/4/6,2/4/8,4/6/8,4/6/8/12 poles
Rated Power: 0.45-72KW
Rated Voltage: 220/380V,380/660V,230/400V,400V/690V
Frequency: 50HZ,60HZ
Protection Class: IP44,IP54,IP55
Insulation Class: B,F,H
Mounting Type:B3,B5,B14,B35multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M
Standards and Specifications:
l  International Standard IEC 60034-2 +A1:1995 +A2:1996
l  Chinese Standard GB 755-2000
Certification:
l  CE Declaration
l  Manufacturer to ISO9001

- MD (YD)
TECHICAL DATA - MD (YD) Series Three Phase Multispeed Asynchronous Induction Motor

Type		Power	Current	Speed	η	Power	TST/TN	IST/IN	TMAX/TN
		KW	A	RPM	%	CosΦ

MD80K	2	0.55	1.5	2860	65	0.85	1.6	7	1.8
MD80G	4	0.55	1.7	1420	68	0.74	1.5	6.5	1.8
	2	0.75	2	2860	66	0.85	1.6	7	1.8

MD90S	4	0.85	2.3	1430	74	0.77	1.5	6.5	1.8
	2	1.1	2.8	2850	72	0.84	1.6	7	1.8

MD90L	4	1.3	3.3	1430	76	0.78	1.5	6.5	1.8
	2	1.8	4.3	2850	74	0.84	1.6	7	1.8

MD100LA	4	2	4.8	1430	78	0.81	1.5	6.5	1.8
	2	2.4	5.6	2850	76	0.86	1.6	7	1.8

MD100LB	4	2.4	5.6	1430	79	0.83	1.5	6.5	1.8
	2	3	5.7	2850	77	0.89	1.6	7	1.8

MD112L	4	3.3	7.4	1450	81	0.83	1.5	6.5	1.8
	2	4	8.6	2860	80	0.88	1.6	7	1.8

MD132S	4	4.5	9.8	1450	83	0.84	1.5	6.5	1.8
	2	5.5	11.9	2860	79	0.88	1.6	7	1.8

MD132M	4	6.5	13.8	1450	84	0.85	1.5	6.5	1.8
	2	8	17.1	2880	80	0.89	1.6	7	1.8

MD160M	4	9	18.5	1460	87	0.85	1.5	6.5	1.8
	2	11	22.9	2920	82	0.89	1.6	7	1.8

MD160L	4	11	22.3	1460	87	0.86	1.5	6.5	1.8
	2	14	28.8	2920	82	0.9	1.6	7	1.8

MD180M	4	15	29.4	1470	89	0.87	1.5	6.5	1.8
	2	18.5	36.7	2940	85	0.9	1.6	7	1.8

MD180L	4	18.5	35.9	1470	89	0.88	1.5	6.5	1.8
	2	22	42.7	2940	86	0.91	1.6	7	1.8

MD200L	4	26	49.9	1470	89	0.89	1.4	6.5	1.8
	2	30	58.3	2950	85	0.92	1.4	7	1.8

MD225S	4	32	60.7	1480	90	0.89	1.4	6.5	1.8
	2	37	71.7	2960	86	0.92	1.4	7	1.8

MD225M	4	37	69.4	1480	91	0.89	1.4	6.5	1.8
	2	45	86.4	2960	87	0.92	1.4	7	1.8

MD250M	4	45	84.4	1480	91	0.89	1.4	6.5	1.8
	2	55	103.2	2960	88	0.92	1.4	7	1.8

MD280S	4	60	111.3	1480	91	0.9	1.4	6.5	1.8
	2	72	135.1	2970	88	0.92	1.4	7	1.8

MD280M	4	72	133.6	1480	91	0.9	1.4	6.5	1.8
	2	82	152.2	2970	88	0.93	1.4	7	1.8

MD90S	6	0.65	2.2	920	64	0.7	1.4	6.5	1.8
	4	0.85	2.3	1420	70	0.79	1.3	7	1.8

Type		Power	Current	Speed	η	Power	TST/TN	IST/IN	TMAX/TN
		KW	A	RPM	%	CosΦ

MD90L	6	0.85	2.8	930	66	0.7	1.4	6.5	1.8
	4	1.1	3	1420	71	0.79	1.3	7	1.8

MD100LA	6	1.3	3.8	940	74	0.7	1.4	6	1.8
	4	1.8	4.4	1440	77	0.8	1.3	6.5	1.8

MD100LB	6	1.5	4.3	940	75	0.7	1.4	6	1.8
	4	2.2	5.4	1440	77	0.8	1.3	6.5	1.8

MD112M	6	2.2	5.7	960	77	0.75	1.4	6	1.8
	4	2.8	6.7	1440	77	0.82	1.3	6.5	1.8

MD132S	6	3	7.7	960	79	0.75	1.4	6	1.8
	4	4	9.5	1440	80	0.82	1.3	6.5	1.8

MD132M	6	4	9.8	960	81	0.76	1.4	6	1.8
	4	5.5	12.3	1440	80	0.85	1.3	6.5	1.8

MD160M	6	6.5	15.1	970	84	0.78	1.4	6	1.8
	4	8	17.4	1460	83	0.85	1.3	6.5	1.8

MD160L	6	9	20.6	970	85	0.78	1.4	6	1.8
	4	11	23.4	1460	84	0.85	1.3	6.5	1.8

MD180M	6	11	25.9	980	85	0.78	1.4	6	1.8
	4	14	29.8	1470	85	0.85	1.3	6.5	1.8

MD180L	6	13	29.4	980	86	0.78	1.4	6	1.8
	4	16	33.6	1470	85	0.85	1.3	6.5	1.8

MD200L	6	18.5	41.4	980	87	0.78	1.4	6.5	1.8
	4	22	44.7	1460	87	0.86	1.3	7	1.8

MD225	6	22	44.2	980	88	0.86	1.4	6.5	1.8
	4	28	56.2	1470	87	0.87	1.3	7	1.8

MD225M	6	26	52.2	980	88	0.86	1.4	6.5	1.8
	4	34	66	1470	87	0.9	1.3	7	1.8

MD250M	6	32	62.1	980	90	0.87	1.4	6.5	1.8
	4	42	74.7	1470	88	0.91	1.3	7	1.8

MD280S	6	42	81.5	980	90	0.87	1.4	6.5	1.8
	4	55	104.2	1470	89	0.9	1.3	7	1.8

MD280M	6	55	106.7	990	90	0.87	1.4	6.5	1.8
	4	72	138.1	1480	89	0.89	1.3	7	1.8

MD90L	8	0.45	1.9	680	58	0.63	1.5	5.5	1.8
	4	0.75	1.92	1420	72	0.87	1.5	6.5	1.8

MD100L	8	0.85	3.1	700	68	0.63	1.5	5.5	1.8
	4	1.5	3.5	1420	75	0.88	1.5	6.5	1.8

MD112M	8	1.5	5	700	72	0.63	1.5	5.5	1.8
	4	2.4	5.3	1420	78	0.88	1.5	6.5	1.8

MD132S	8	2.2	7	720	75	0.64	1.5	5.5	1.8
	4	3.3	7.1	1450	80	0.88	1.5	6.5	1.8

MD132M	8	3	9	720	78	0.65	1.5	5.5	1.8
	4	4.5	9.4	1440	82	0.88	1.5	6.5	1.8

Type		Power	Current	Speed	η	Power	TST/TN	IST/IN	TMAX/TN
		KW	A	RPM	%	CosΦ

MD160M	8	5	13.9	730	83	0.66	1.5	5.5	1.8
	4	7.5	15.2	1450	84	0.89	1.5	6.5	1.8

MD160	8	7	19	730	85	0.66	1.5	5.5	1.8
	4	11	21.8	1450	86	0.89	1.5	6.5	1.8

MD180L	8	11	26	730	86	0.74	1.5	6	1.8
	4	17	31.9	1470	87	0.92	1.5	7	1.8

MD200LA	8	14	33	740	86	0.74	1.5	6	1.8
	4	22	41.3	1470	88	0.92	1.5	7	1.8

MD200LB	8	17	40.1	740	87	0.74	1.5	6	1.8
	4	26	48.8	1470	88	0.92	1.5	7	1.8

MD225M	8	24	53.2	740	89	0.77	1.4	6	1.8
	4	34	66.7	1470	88	0.88	1.3	7	1.8

MD250M	8	30	64.9	740	90	0.78	1.4	6	1.8
	4	42	78.8	1480	89	0.91	1.3	7	1.8

MD280S	8	40	83.5	740	91	0.8	1.4	6	1.8
	4	55	102	1480	90	0.91	1.3	7	1.8

MD280M	8	47	96.9	740	91	0.81	1.4	6	1.8
	4	67	122.9	1480	90	0.92	1.3	7	1.8

MD90S	8	0.35	1.6	680	56	0.6	1.5	5	1.8
	6	0.45	1.4	930	70	0.72	1.5	6	1.8

MD90L	8	0.45	1.9	680	59	0.6	1.5	5	1.8
	6	0.65	1.9	930	71	0.73	1.5	6	1.8

MD100L	8	0.72	2.9	710	65	0.6	1.5	5	1.8
	6	1.1	3.1	950	75	0.73	1.5	6	1.8

MD112M	8	1.3	4.5	710	72	0.61	1.5	5	1.8
	6	1.8	4.8	950	78	0.73	1.5	6	1.8

MD132S	8	1.8	5.8	730	72	0.62	1.5	5	1.8
	6	2.4	6.2	970	80	0.73	1.5	6	1.8

MD132M	8	2.6	8.2	730	78	0.62	1.5	5	1.8
	6	3.7	9.4	970	82	0.73	1.5	6	1.8

MD160M	8	4.5	13.3	730	83	0.62	1.5	5	1.8
	6	6	14.7	980	85	0.73	1.5	6	1.8

MD160L	8	6	17.5	730	84	0.62	1.5	5	1.8
	6	8	19.4	980	86	0.73	1.5	6	1.8

MD180M	8	7.5	21.9	730	84	0.62	1.5	5	1.8
	6	10	24.2	980	86	0.73	1.5	6	1.8

MD180L	8	9	24.8	930	85	0.65	1.5	5	1.8
	6	12	28.3	980	86	0.75	1.5	6	1.8

MD200LA	8	12	32.5	730	86	0.65	1.5	5	1.8
	6	17	39.1	980	87	0.76	1.5	6	1.8

MD200LB	8	15	40.3	730	87	0.65	1.5	5	1.8
	6	20	45.4	980	88	0.76	1.5	6	1.8

Type		Power	Current	Speed	η	Power	TST/TN	IST/IN	TMAX/TN
Type		KW	A	RPM	%	CosΦ	TST/TN	IST/IN	TMAX/TN
		KW	A	RPM	%	CosΦ
MD250M	8	30	58.5	730	90	0.86	1.5	5	1.8
MD250M	6	15	33.1	980	88	0.78	1.5	6	1.8
	6	15	33.1	980	88	0.78	1.5	6	1.8
MD160M	12	2.6	11.6	480	75	0.46	1.2	4	1.8
MD160M	6	5	11.9	970	84	0.78	1.3	6	1.8
	6	5	11.9	970	84	0.78	1.3	6	1.8
MD160L	12	3.7	16.4	480	77	0.46	1.2	4	1.8
MD160L	6	7	15.8	970	85	0.79	1.3	6	1.8
	6	7	15.8	970	85	0.79	1.3	6	1.8
MD180M	12	5.5	19.6	490	79	0.54	1.2	4	1.8
MD180M	6	10	20.5	980	86	0.86	1.3	6	1.8
	6	10	20.5	980	86	0.86	1.3	6	1.8
MD200LA	12	7.5	25.1	490	82	0.56	1.2	4	1.8
MD200LA	6	13	26.4	980	87	0.86	1.3	6	1.8
	6	13	26.4	980	87	0.86	1.3	6	1.8
MD200LB	12	9	28.9	490	87	0.57	1.2	4	1.8
MD200LB	6	15	30.4	980	87	0.87	1.3	6	1.8
	6	15	30.4	980	87	0.87	1.3	6	1.8
MD225M	12	12	35.8	490	85	0.61	1.2	4	1.8
MD225M	6	20	39.7	980	88	0.87	1.3	6	1.8
	6	20	39.7	980	88	0.87	1.3	6	1.8
MD250M	12	15	42.9	490	86	0.63	1.2	4	1.8
MD250M	6	24	47.6	980	88	0.87	1.3	6	1.8
	6	24	47.6	980	88	0.87	1.3	6	1.8
MD280S	12	20	54.8	490	88	0.63	1.2	4	1.8
MD280S	6	30	58.9	990	89	0.87	1.3	6	1.8
	6	30	58.9	990	89	0.87	1.3	6	1.8
MD280M	12	24	63.7	490	88	0.65	1.2	4	1.8
MD280M	6	37	72.6	990	89	0.87	1.3	6	1.8
	6	37	72.6	990	89	0.87	1.3	6	1.8
	6	0.75	2.6	950	67	0.65	1.3	5.5	1.8
MD100L	4	1.3	3.7	1440	72	0.75	1.3	6	1.8
	2	1.8	4.5	2900	71	0.85	1.3	7	1.8
	6	1.1	3.5	960	73	0.65	1.3	5.5	1.8
MD112M	4	2	5.1	1450	73	0.81	1.3	6	1.8
	2	2.4	5.8	2920	74	0.85	1.3	7	1.8
	6	1.8	5.1	970	75	0.71	1.3	5.5	1.8
MD132S	4	2.6	6.1	1460	76	0.83	1.3	6	1.8
	2	3	7.4	2910	71	0.87	1.3	7	1.8
	6	2.2	6	970	77	0.72	1.3	5.5	1.8
MD132MA	4	3.3	7.5	1460	80	0.84	1.3	6	1.8
	2	4	8.8	2910	76	0.91	1.3	7	1.8
	6	2.6	6.9	970	80	0.72	1.3	5.5	1.8
MD132MB	4	4	9	1460	80	0.84	1.3	6	1.8
	2	5	10.8	2910	77	0.91	1.3	7	1.8
	6	3.7	9.5	980	82	0.72	1.3	5.5	1.8
MD160M	4	5	11.2	1470	81	0.84	1.3	6	1.8
	2	6	13.2	2930	76	0.91	1.3	7	1.8
	6	4.5	11.4	980	83	0.72	1.3	5.5	1.8
MD160L	4	7	15.1	1470	83	0.85	1.3	6	1.8
	2	9	18.8	2930	77	0.91	1.3	7	1.8
	8	0.65	2.7	700	59	0.63	1.3	4.5	1.8

Type		Power	Current	Speed	η	Power	TST/TN	IST/IN	TMAX/TN
Type		KW	A	RPM	%	CosΦ	TST/TN	IST/IN	TMAX/TN
		KW	A	RPM	%	CosΦ
MD112M	4	2	5.1	1450	73	0.81	1.3	6	1.8
	2	2.4	5.8	2920	74	0.85	1.3	7	1.8
	8	1	3.6	720	69	0.61	1.3	4.5	1.8
MD132S	4	2.6	6.1	1460	78	0.83	1.3	6	1.8
	2	3	7.1	2910	74	0.87	1.3	7	1.8
	8	1.3	4.6	720	71	0.61	1.3	4.5	1.8
MD132M	4	3.7	8.4	1460	80	0.84	1.3	6	1.8
	2	4.5	10	2910	75	0.91	1.3	7	1.8
	8	2.2	7.6	720	75	0.59	1.3	4.5	1.8
MD160M	4	5	11.2	1440	81	0.84	1.3	6	1.8
	2	6	13.2	2910	75	0.91	1.3	7	1.8
	8	2.8	9.2	720	77	0.6	1.3	4.5	1.8
MD160L	4	7	15.1	1440	83	0.85	1.3	6	1.8
	2	9	18.8	2910	79	0.92	1.3	7	1.8
	8	0.85	3.7	710	62	0.56	1.3	5.5	1.8
MD112M	4	1	3.1	950	67	0.74	1.3	6	1.8
	2	1.5	3.5	1440	75	0.86	1.4	7	1.8
	8	1.1	4.1	730	67	0.6	1.3	5.5	1.8
MD132S	6	1.5	4.2	970	74	0.74	1.3	6	1.8
	4	1.8	4	1460	78	0.87	1.4	7	1.8
	8	1.5	5.2	730	71	0.62	1.3	5.5	1.8
MD132MA	6	2	5.4	970	77	0.73	1.3	6.5	1.8
	4	2.2	4.9	1460	79	0.87	1.4	7	1.8
	8	1.8	6.3	730	72	0.62	1.3	5.5	1.8
MD132MB	6	2.6	6.8	970	78	0.74	1.3	6.5	1.8
	4	3	6.5	1460	80	0.87	1.4	7	1.8
	8	3.3	10.2	720	79	0.62	1.6	5.5	1.8
MD160M	6	4	9.9	960	81	0.76	1.5	6.5	1.8
	4	5.5	11.6	1440	83	0.87	1.4	7	1.8
MD160L	8	4.5	13.8	720	80	0.62	1.6	5.5	1.8
MD160L	6	6	14.5	960	83	0.76	1.5	6.5	1.8
	6	6	14.5	960	83	0.76	1.5	6.5	1.8
	4	7.5	15.6	1440	84	0.87	1.4	7	1.8
	8	7	18.5	740	81	0.71	1.6	6.5	1.8
MD180L	6	9	20.6	980	83	0.8	1.5	7	1.8
	4	12	24.1	1470	84	0.9	1.4	7	1.8
	8	10	25.8	740	83	0.71	1.6	6.5	1.8
MD200L	6	13	28.7	980	85	0.81	1.5	7	1.8
	4	17	33.4	1470	86	0.9	1.4	7	1.8
	8	14	34.3	740	86	0.71	1.6	6.5	1.8
MD225S	6	18.5	39.9	980	87	0.81	1.5	7	1.8
	4	24	46.6	1480	87	0.9	1.4	7	1.8
	8	17	42.4	740	87	0.7	1.6	6.5	1.8
