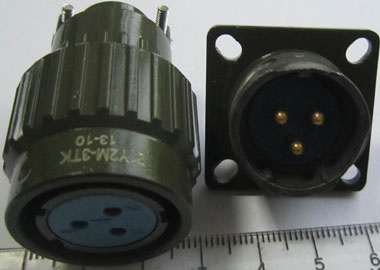

Y2m-3 Power Circular Cheap Value Connector

Name: Y2m-3 Power Circular Cheap Value Connector
Brand: all-electronics-online.com
SKU: 800780185
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 4/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	y2m-3
Size:	Y21m
Size1:	Y2m-3tk
Size2:	Y2m-3zj
Size3:	Y2m-3tj
Size4:	Y2m-3zkl

Product Description

Y2M series (Y21M series) circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors have the features of small volume, light weight, convenient application, high durability of plugging and unplugging, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It's the ideal product of a new generation to replace the old "P" series connectors.

Product Ordering
Y2M - 3 Z K L M
1 2 3 4 5 6
1. Name of series: Y2M series circular connectors
2. Number of contacts: 2,3,4,5,7,10,14,20
3. T:Plug, Z:Receptacle
4. Type of contacts: J:Pin, K:Socket
5. Termination: L: With Cable shell, B:Square Flange
6. M:Receptacle sealing

Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40°C~ +85°C	(92~98)% at40+2°C	101.33KPa~6.67Pa	10~2500Hz,196m/s²	392m/s²	500 cycles

Contact Ø	Current	Voltage	Contact resistance
Ø1mm	5A	250V	≤5mΩ
Ø1.5mm	10A	250V	≤3mΩ
Ø2.5mm(only3,4,5)	25A	250V	≤1mΩ

Environment	Voltage proof	Insulation resistance
Normal	1000V	≥1000MΩ
High temperature	900V	≥1000MΩ
Moisture	500V	≥100MΩ

Dimensions

Type	Mating size			Dimension size
Type	A	D1	M	B	D2	D3	L	L1	L2
Y2m-2,3,4,5,7	22-24	Ø12	M21×0.75	31	Ø31	Ø22.7	79	51	45
Y2m-10,14,20	22-24	Ø12	M21×0.75	31	Ø31	Ø22.7	79	51	45
Y2A-4,10,12	28	Ø18	M28×1	38	Ø38	Ø28.7	88	56	49
Y2m-14,19,24	28	Ø18	M28×1	38	Ø38	Ø28.7	88	56	49
Y2m-32,37	28	Ø18	M28×1	38	Ø38	Ø28.7	88	56	49
Y2m-36,50,65	36	Ø26	M36×1	46	Ø46	Ø36.7	108	67	60
Y2m-81,120	51	Ø40	M50×1	60	Ø60	Ø51.2	126	77	71

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
