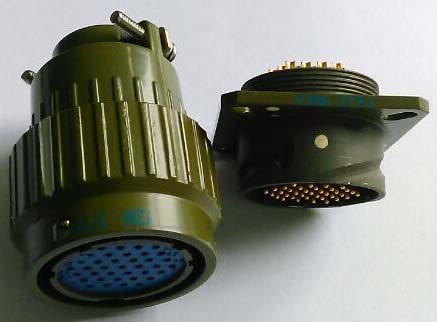

Y2m 37 Pins Metal Circular Lower Value Connector

Name: Y2m 37 Pins Metal Circular Lower Value Connector
Brand: all-electronics-online.com
SKU: 800887325
Availability: InStock
Rating: 4.8 (58 reviews)

Price:	US $ 6.7-7.4/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2M-37
Size:	28 Shell Type
Size1:	Y2m-37tk
Size2:	Y2m-37zj
Size3:	Yp28-27uq

Product Description

Y2m series circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors have the features of small volume, light weight, convenient application, high durability of plugging and unplugging, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It is the ideal product of a new generation to replace the old p series connectors.
Product Ordering
Y 2 M - 37 T k L M
1 2 3 4 5 6 7
1. Name of series: Y2 series circular connectors
2. M-Normal, Without M_Military product
3. Number of contacts: 3, 4, 5, 7, 10, 14, 19, 24, 32, 36, 37, 50, 65, 81, 120
4. T-Plug, Z-Receptacle
5. Type of contacts: J-Pin, K-Socket
6. Termination: L- With Cable shell, B-Square Flange
7. M-Receptacle sealing

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40° C~ +85° C	(92~98)% at40 + 2° C	101.33KPa~6.67Pa	10~2500Hz, 196m/s²	392m/s²	500cycles

Contact Ø	Current	Voltage	Contact resistance
Ø 1mm	5A	250V	≤ 5mΩ
Ø 1.5mm	10A	250V	≤ 3mΩ
Ø 2.5mm(only3, 4, 5)	25A	250V	≤ 1mΩ

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
