Y2vp Series Three Phase AC Motor Variable Frequency Motor
| Price: |
US $ 500-80000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Y2VP |
| Output Power: |
250-900kw |
| AC Voltage: |
380V/660V |
| Efficiency: |
E1 |
| Frame Size: |
355~450 |
| Protection Degree: |
IP55 |
| Insulation Class: |
F |
| Cooling Method: |
IC416 |
| Constant Torque: |
25~50Hz |
| Constant Power: |
4p:50~75Hz/6~8p:50~100Hz |
| Duty: |
S1 |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
China Electric |
| Number Of Poles: |
4-8 |
Product Description

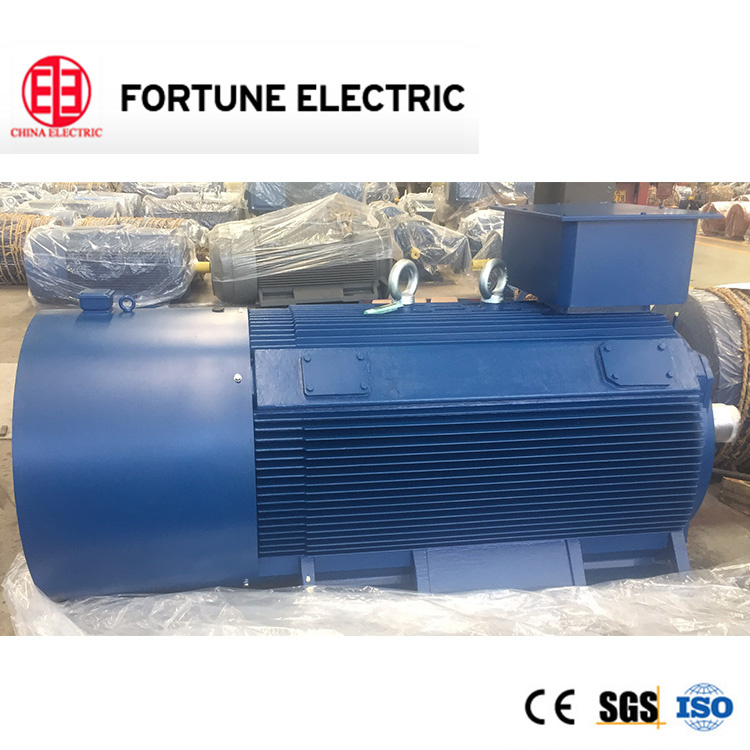

Y2VP Series three phase AC motor variable frequency motor
Product Description
Structural characteristics:
The Y2VP series motors with high strength cast iron structure, have the characteristics of high reliability, wide speed range, high precision. The Y2VP series motors have independent cooling fan to ensure good
cooling effect under different speed.
Summary
Rate power: 250~900kW
Rate voltage: 380V/660V
Frame size: 355~450
Protection degree: IP55
Insulation class: F
Cooling method: IC416
Frequency range:constant torque: 25~50Hz
Constant power: 4p:50~75Hz / 6~8p: 50~100Hz
Y2VP Low voltage high power series
Technical Data:
Model |
Power
(KW) | Rated Current(A) | Nominal Torque (N.m) | Frequency range of contant torque | Frequency range of contant power |
Voltage(380V) |
Voltage(680V) |
| Y2VP3551-4 | 355 | 636 | | 2260 |
25~50 |
50~75 |
| Y2VP3552-4 | 400 | 717 | | 2547 |
| Y2VP3553-4 | 450 | 807 | | 2865 |
| Y2VP400M1-4 | 355 | 636 | | 2260 |
| Y2VP400M2-4 | 400 | 717 | | 2547 |
| Y2VP400M3-4 | 450 | 807 | | 2865 |
| Y2VP400L1-4 | 500 | 896 | | 3183 |
| Y2VP400L2-4 | 560 | | 571 | 3565 |
| Y2VP4501-4 | 630 | | 642 | 4011 |
| Y2VP4502-4 | 710 | | 723 | 4520 |
| Y2VP4503-4 | 800 | | 805 | 5093 |
| Y2VP4504-4 | 900 | | 906 | 5730 |
| Y2VP3551-6 | 280 | 540 | | 2674 |
25~50 |
50~100 |
| Y2VP3552-6 | 315 | 608 | | 3008 |
| Y2VP3553-6 | 355 | 685 | | 3390 |
| Y2VP400M1-6 | 280 | 540 | | 2674 |
| Y2VP400M2-6 | 315 | 608 | | 3008 |
| Y2VP400M3-6 | 355 | 685 | | 3390 |
| Y2VP400L1-6 | 400 | 761 | | 3820 |
| Y2VP400L2-6 | 450 | 856 | | 4298 |
| Y2VP4501-6 | 500 | 949 | | 4775 |
| Y2VP4502-6 | 560 | | 605 | 5348 |
| Y2VP4503-6 | 630 | | 680 | 6017 |
| Y2VP4504-6 | 710 | | 766 | 6781 |
| Y2VP3551-8 | 250 | 499 | | 3183 |
| Y2VP3552-8 | 280 | 559 | | 3565 |
| Y2VP3553-8 | 315 | 628 | | 4011 |
| Y2VP400M1-8 | 250 | 499 | | 3183 |
| Y2VP400M2-8 | 280 | 559 | | 3565 |
| Y2VP400L1-8 | 315 | 428 | | 4011 |
| Y2VP400L2-8 | 355 | 705 | | 4520 |
| Y2VP400L3-8 | 400 | 795 | | 5093 |
| Y2VP4501-8 | 400 | 795 | | 5093 |
| Y2VP4502-8 | 450 | 869 | | 5730 |
| Y2VP4503-8 | 500 | 963 | | 6367 |
| Y2VP4504-8 | 560 | | 621 | 7131 |
Y2VP Series three phase AC motor variable frequency motor
Our service :
1. Inquiry response within 24 hour.
2. Ensure every quotation is practical &customized according to your requirement.
3. Provide the design suggestions and layout plan for the clients workshop.
4. Provide the technical specification of the auxiliary facilities.
5. Provide professional proposal for the whole project.
6. Engeneers are available to serve the machines overseas.
7. Our factory always welcome to your visit. We can take you to visit our local customers.
8. Quality assurance: 18months except consumable parts.
We devote to good performance, strong packing, mature service to satisfy our clients.
We are professional Manufacturer for Casting meatl machine .
We have our own factory in Shanghai China .
Welcome to visit our company and factory ,we will pick you up at airport .
Any question about Y2VP Series three phase AC motor variable frequency motor
Please send Email here to me through Made-in-China .
I will answer you at once after receiving your email !
