Y3 Series High Torque Three Phase Induction Motor

Name: Y3 Series High Torque Three Phase Induction Motor
Brand: all-electronics-online.com
SKU: 746891775
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 55.51/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y3-112S-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	380V or on Request
Frequency:	50Hz or 60Hz
Duty:	S1
Cooling Method:	IC411
Insulation Class:	F
Protection Class:	IP55
Number Of Stator:	Three-Phase
Operating Speed:	Constant Speed
Application:	Universal
Casing Protection:	Closed Type
Rotor Structure:	Winding Type
Starting Mode:	Direct on-line Starting
Brand:	Kailida
Species:	Y3 Three Phase

Product Description

1.Motor Features:

Y3 Series three phase electrical motors, lately developed with new technique and new materials, are renewal and upgrading products of Y &Y2 series. Y3 series motors utilize cold rolled silicon steel, which is popular in the international motor field, are defined as totally enclosed, fan cooled, squirrel conge type and have good features such as novel design, beautiful model, high efficiency (which reaches EFF2 in Europe), low noise, large torque, excellent staring performance, compact structure, easy serving and etc.

Y3 series motors can be widely used as driving equipments of various machineries, such as machine tools, blowers, pumps, reducers, compressors, transporters, agricultural and fool processing and packing.

2.Specification

Y3 series AC motor technical parameter

1, Frame Size: 63-355 MM;

2, Rated Output: 0.12—315 KW or 0.15—465 HP;

3, Rated Voltage: 380/660 V or to be your request;

4, Rated Frequency: 50 Hz,60 Hz,50 Hz / 60 Hz;

5, Poles: 2 / 4 / 6 / 8 / 10;

6, Speed: 590 —2980 r/min

7, Ambient Temperature: -15°C—40°C

8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;

9, Mounting: B3; B35; B34; B14; B5; V1;

10, Current: 1.5—465 A (AC);

11, Duty: continuous (S1);

12, Insulation Class: B / F;

13, Protection Class: IP54 / IP55;

14, Cooling Method: ICO 141 Standards;

15, Altitude: No more than 1,000 meters above sea level;

16, Packing: 1pc in a Strong carton several cartons on a Pallet.

Kailida motors advantage:

Prompt Quotation.

Competitive Price

Guaranteed Quality

Timely Delivery.

100% Tested.

Sincere and Professional Service.

Outstanding Finishing Surface.

Strictly and Perfect Management is guaranteed for Production.

Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.

Have Rich Experience and Strong ability to Develop New Products.

Have Ability to Design the Products Based on Your Original Samples.

Our promise:

Prompt Reply to Your Inquiry within 24 Hs during Working Days.

Long Life Time Products

Products One Year Guarantee from the Date of Sales.

Professional Service in Handling Your Goods in Daily Communications

Deliver Time about 15-20 days for Normal Models.

Deliver Time about 30 days for New Models upon Receiving the New Samples.

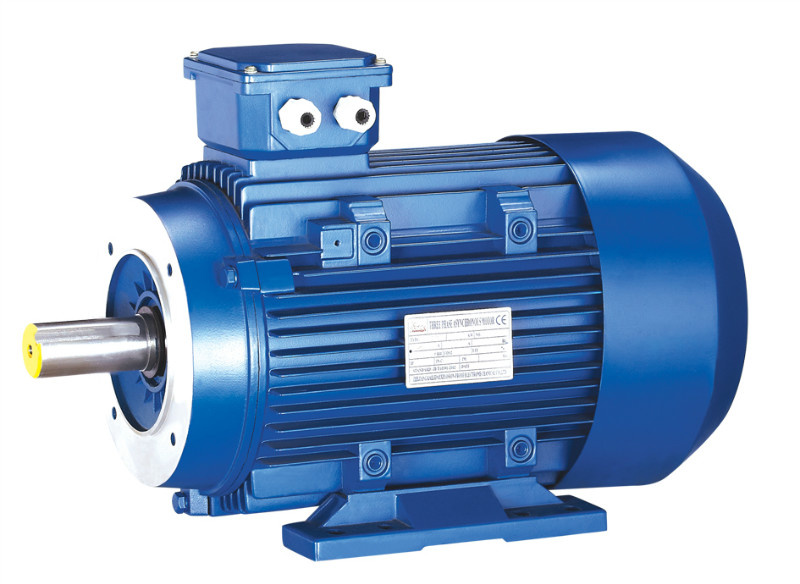

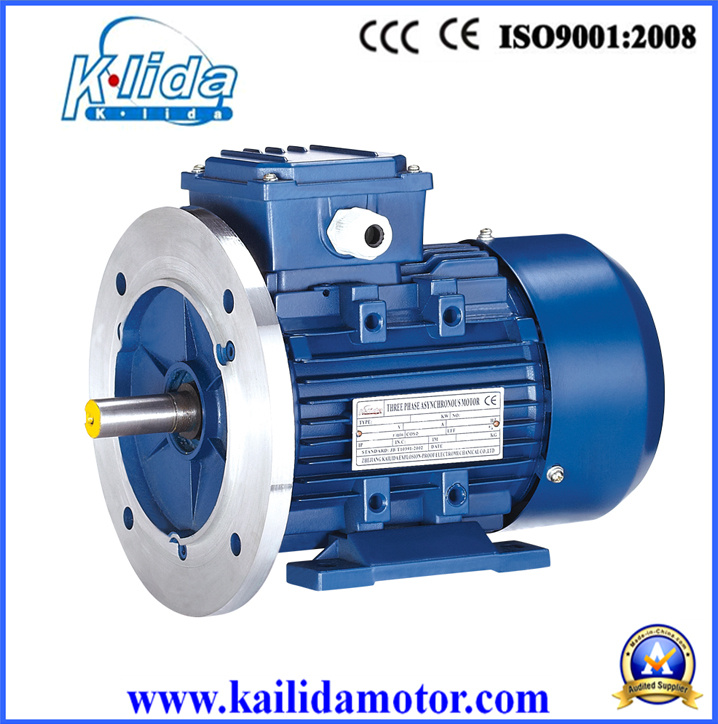

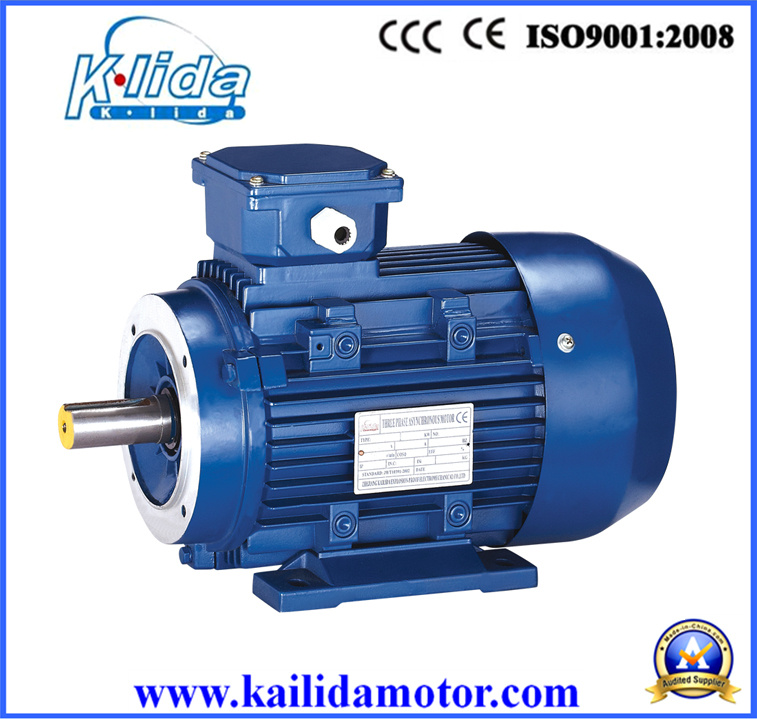

3.Motor Pictures

Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.

Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.

We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
