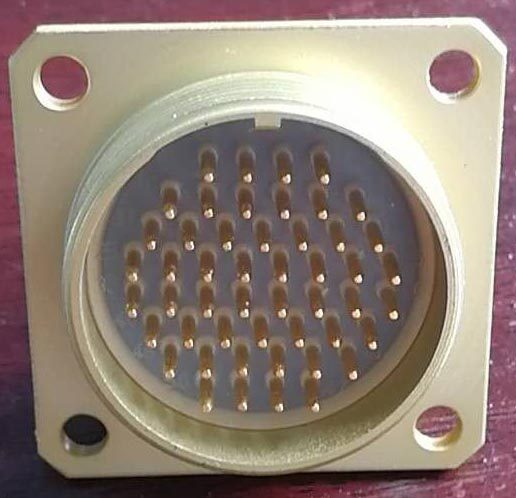

Y30-50 Pins Thread Coupling Circular Connector

Name: Y30-50 Pins Thread Coupling Circular Connector
Brand: all-electronics-online.com
SKU: 831029275
Availability: InStock
Rating: 4.4 (132 reviews)

Price:	US $ 50-64.9/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y30-50
Quality:	Military

Product Description

Y30-50 pins circular connectors have the features of small size, light weight, convenient application with threaded-coupling connection. It can be interchanged with Russian type PC-50TB, They are widely used for the electrical connection between electrical equipments and instruments.For military application.

Product Ordering
Y30 _ 50 Z
1 2 3
1. Name: Y30 series military connectors
2. Number of contacts: 50
3. T-plug with sockets;
TJ-Plug with pins; Z-receptacle with pins;
ZK-receptacle with sockets.

Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40°C~ +105°C	(92~98)%, at40+2°C	101.33KPa~6.67Pa	10~2000Hz, 196m/s²	392m/s²	500 cycles

Current	Voltage	Contact resistance	Contact Ø
3A	200V	≤8mΩ	Ø1mm

Environment	Voltage proof	Insulation resistance
Normal	1000V	≥1000MΩ
High temperature	700V	≥500MΩ
Moisture	500V	≥50MΩ
Low pressure	200V	-

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
