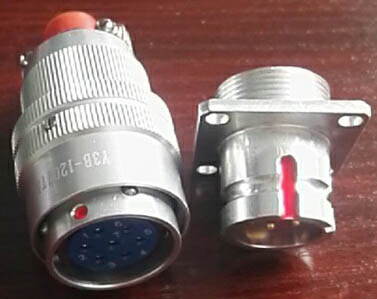

Y3b Series Push Pull Circular Connector

Name: Y3b Series Push Pull Circular Connector
Brand: all-electronics-online.com
SKU: 823406755
Availability: InStock
Rating: 4.7 (100 reviews)

Price:	US $ 27.8-35/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y3B-1207
Size:	Y3
Size1:	Y3a
Size2:	Y3b

Product Description

Y3 series circular connectors have the features of lower contact resistance, straight push locking and releasing, strong seal etc. The type of termination is flange and cable. The receptacle is ordinary seal and glass intered. They are widely used for the electrical connection between electrical equipment.

Product Ordering

               Y3B - 1207 Z J B M
                 1        2     3   4 5    6
     1. Name of series:Y3 series circular sealing connectors
   2. Number of contacts: 1003,1204,1207,1601,1604,1612,2004,2012,2019,2804,2824
     3.T-Plug,Z-Receptacle
     4.Type of contacts: J-Pin,K-Socket
   5.Termination:L-Cable,B-Flange
   6. Receptacle sealing:M-Ordinary sealing,HR-Glass sealing

Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-40°C~+85°C	(95~98)% at40+2°C	101.33KPa~6.67Pa	10~2000Hz, 147m/s²	686m/s²	300 cycles

Contact Ø	Current		Voltage		Contact resistance
Ø0.8mm	3A		110V		≤15mΩ
Ø1mm	5A		110V		≤10mΩ
Environment		Voltage proof		Insulation resistance
Normal		500V		≥500MΩ
High temperature		500V		≥100MΩ
Moisture		500V		≥20MΩ

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
