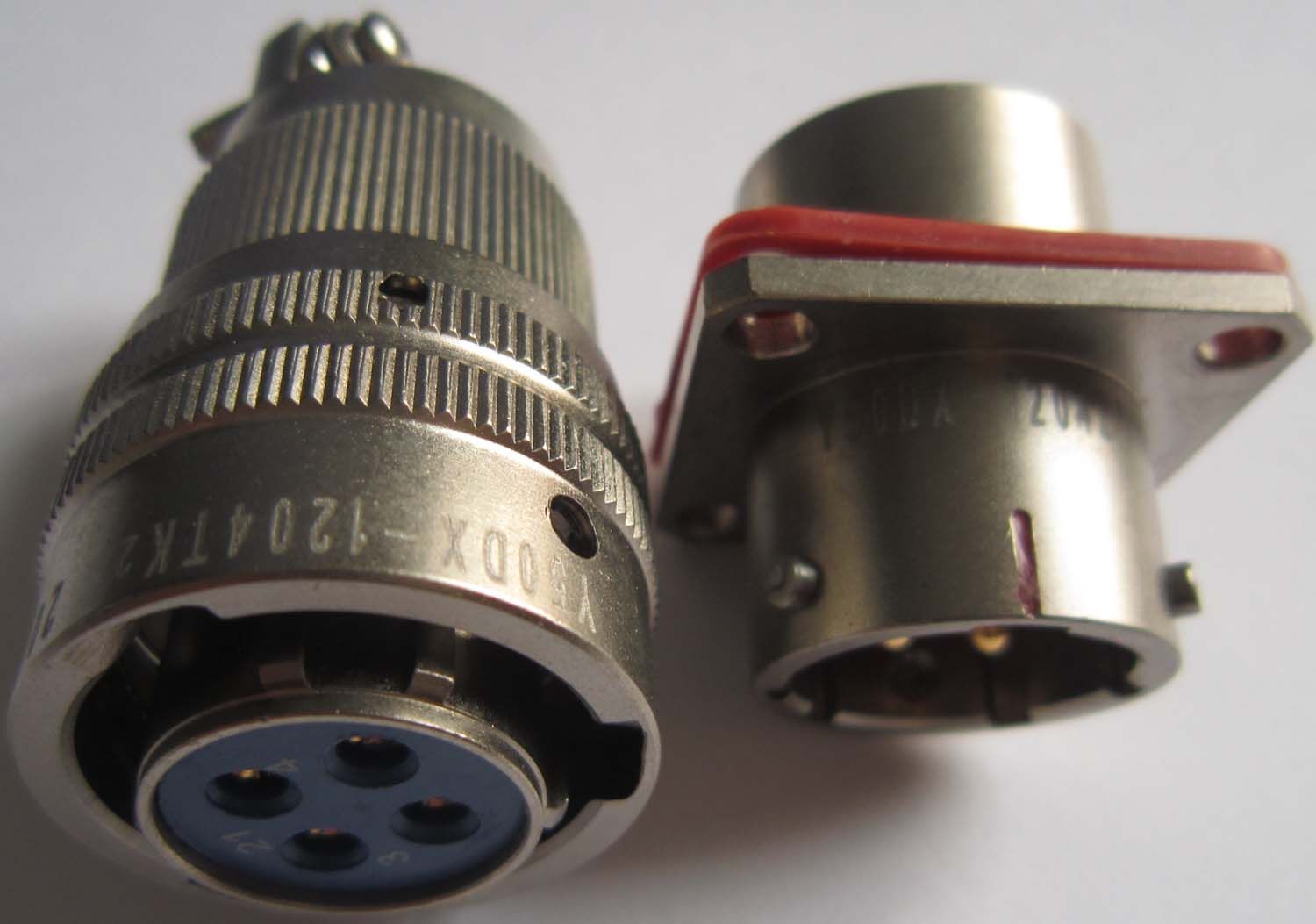

Y50dx Type Bayonet Coupling Power Circular Connector

Y50dx Type Bayonet Coupling Power Circular Connector
Price: US $ 19.9-22/Set
Min Order: 5/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: Y50DX-1204
Size: Y50dx
Shell Size: 12
Contacts: 4X2.5

Product Description

Y50DX series circular power connectors are inner pin locked type for electric system, military or industry quality, featuring quick connection and separation, small volume, light weight, good sealing and anti-tensile performance. The type of terminations include soldered and crimped, shielded and nonshielded housing, straight and bent cable outlet ends, ordinary, high vacuum and high pressure sealing. It's specification meet the requirements of GJB101A, GJB598A, MIL-C-26482G standard. They are widely used for energy and signal connections in strategic and tactical systems and field operations.

Product ordering
Y50 D X-12 04 Z J 10
1 2 3 4 5 6 7 8
1. Product name: Y50 series circular connectors
2. Type: E: British system
3. Structure: X: Ordinary rubber sealing
4. Shell:  12, 14, 16, 18, 20, 22, 24,32
5. Contacts: 3-61
6. Type: T: Plug, Z: Receptacle: ZS: Thru bulkhead receptacle
7. Contacts type: J: Pin, K: Socket, S: Panel
8. Receptacle: 10: Square flange mounting, 10-2: With cable, 11: Circular flange, 14¬ : Screw connection
Plug: 1: Grounded pressure, 2: Cable clipper, 4: Anti-tensile shell, 5: Angled, 6: Water proof cable shell

Technical characteristics
Mould: Tested as per provisions in 4.16 of GJB598A; Saline fog: Tested as per provisions in 4.17 of GJB598A; Rainproof: Tested as per provisions in 4.15 of GJB598A.
TemperatureRelative humidityAtmosphereVibrationImpactShockEndurance
-55°C~
+125°C
(92~98% )at40±2C 101.33KPa~
4.39KPa
10~2000Hz,
196m/s²
980.7 m/s²392m/s² 500cycles

Contact diameter CurrentVoltage Contact resistance
Ø2.5mm25A250V≤1.5mΩ
Ø3mm 36A    250V≤1 mΩ
Ø3.5mm50A250V≤1 mΩ
Φ4mm60A250V≤1 mΩ
Φ5mm75A250V≤1 mΩ
Φ6mm100A250V≤1 mΩ
Φ7mm110A250V≤1 mΩ
Φ9mm150A250V≤1 mΩ

EnvironmentVoltage proofInsulation resistance
Normal1500V≥3000MΩ
High temperature1000V≥500MΩ
Moisture500V≥20MΩ
