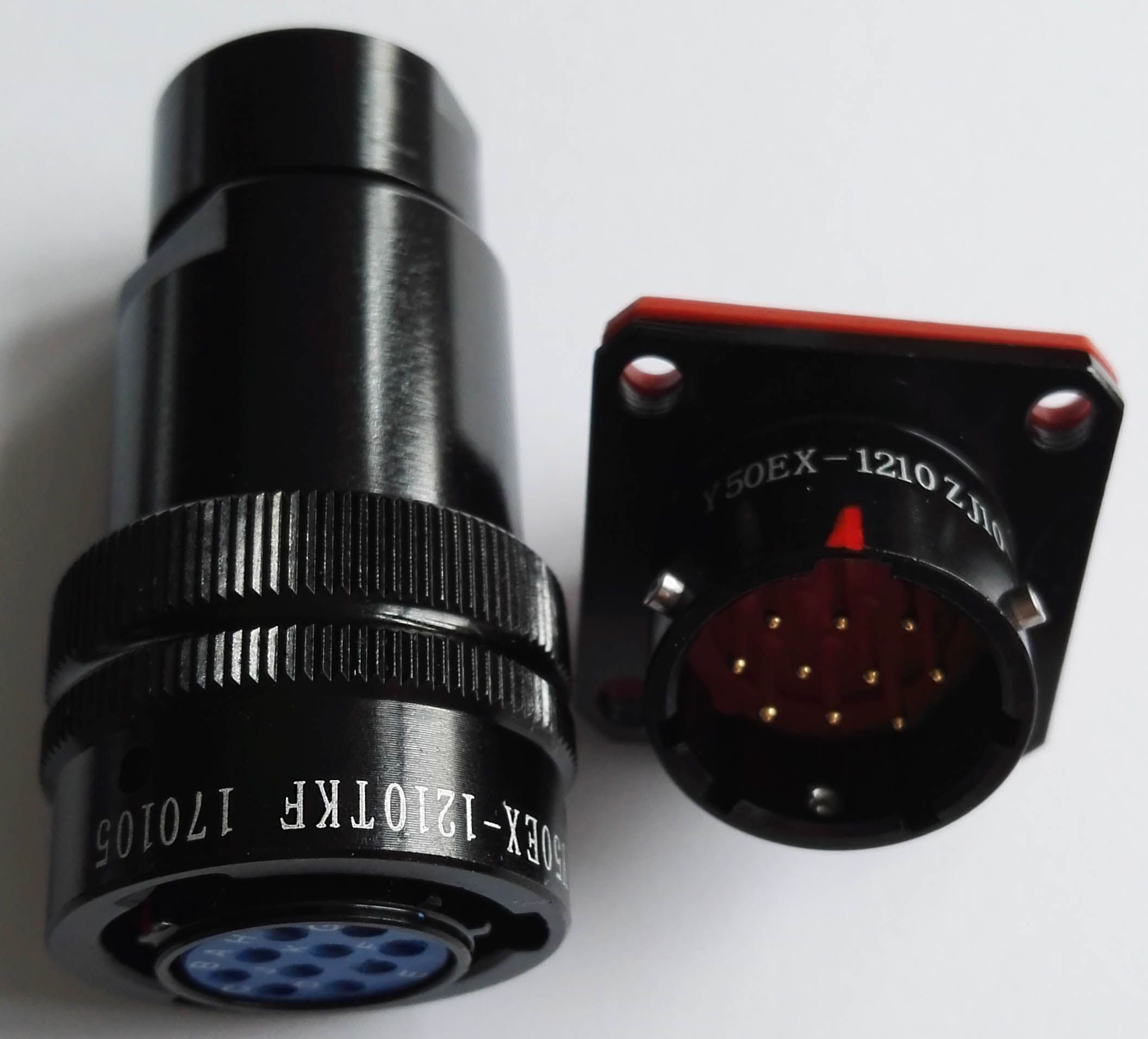

Y50ex-1210 Type Circular Bayonet Connector

Prod Model:	Y50EX-1210
Value:	Cheaper Cost
Size:	Ms3112e12-10p
Size1:	Ms3116f12-10s
Standard:	Mil-C-26482
Size2:	Ms3116A12-10p
Size3:	Ms3112A12-10s

Product Description

Y50EX series circular connectors are inner pin locked type for British system, military quality, featuring quick connection and separation, small volume, light weight, good sealing and anti-tensile performance. The type of terminations include soldered and crimped, shielded and nonshielded housing, straight and bent cable outlet ends, ordinary, high vacuum and high pressure sealing. It's specification meet the requirements of GJB101A, GJB598A, MIL-C-26482G standard. They are widely used for energy and signal connections in strategic and tactical systems and field operations.
Product ordering
Y50 E X-12 10 Z J 10
1 2 3 4 5 6 7 8

1. Product name: Y50 series circular connectors
2. Type: E: British system
3. Structure: X: Ordinary rubber sealing
4. Shell: 08, 10, 12, 14, 16, 18, 20, 22, 24
5. Contacts: 3-61
6. Type: T: Plug, Z: Receptacle: ZS: Thru bulkhead receptacle
7. Contacts type: J: Pin, K: Socket, S: Thru Panel(Thru wall)
8. Receptacle: 10: Square flange mounting, 10-2: With cable, 11: Circular flange, 14¬ : Screw connection
Plug: 1: Grounded pressure, 2: Cable clipper, 4: Anti-tensile shell, 5: Angled, 6: Water proof cable shell

Technical characteristics
Mould: Tested as per provisions in 4.16 of GJB598A; Saline fog: Tested as per provisions in 4.17 of GJB598A; Rainproof: Tested as per provisions in 4.15 of GJB598A.

Temperature	Relative humidity	Atmosphere	Vibration	Impact	Shock	Endurance
-55°C~ +125°C	(92~98% )at40±2C	101.33KPa~ 4.39KPa	10~2000Hz, 196m/s²	980.7 m/s²	392m/s²	500cycles



Contact diameter	Current	Voltage	Contact resistance
Ø0.8mm	3A	250V	≤6mΩ
Ø1mm	5A	250V	≤5mΩ
Ø1.6mm	10A	250V	≤3mΩ
Ø2.3mm	20A	250V	≤1.5mΩ
Ø3.6mm	50A	250V	≤1mΩ



Environment	Voltage proof	Insulation resistance
Normal	1500V	≥3000MΩ
High temperature	1000V	≥500MΩ
Moisture	500V	≥20MΩ
