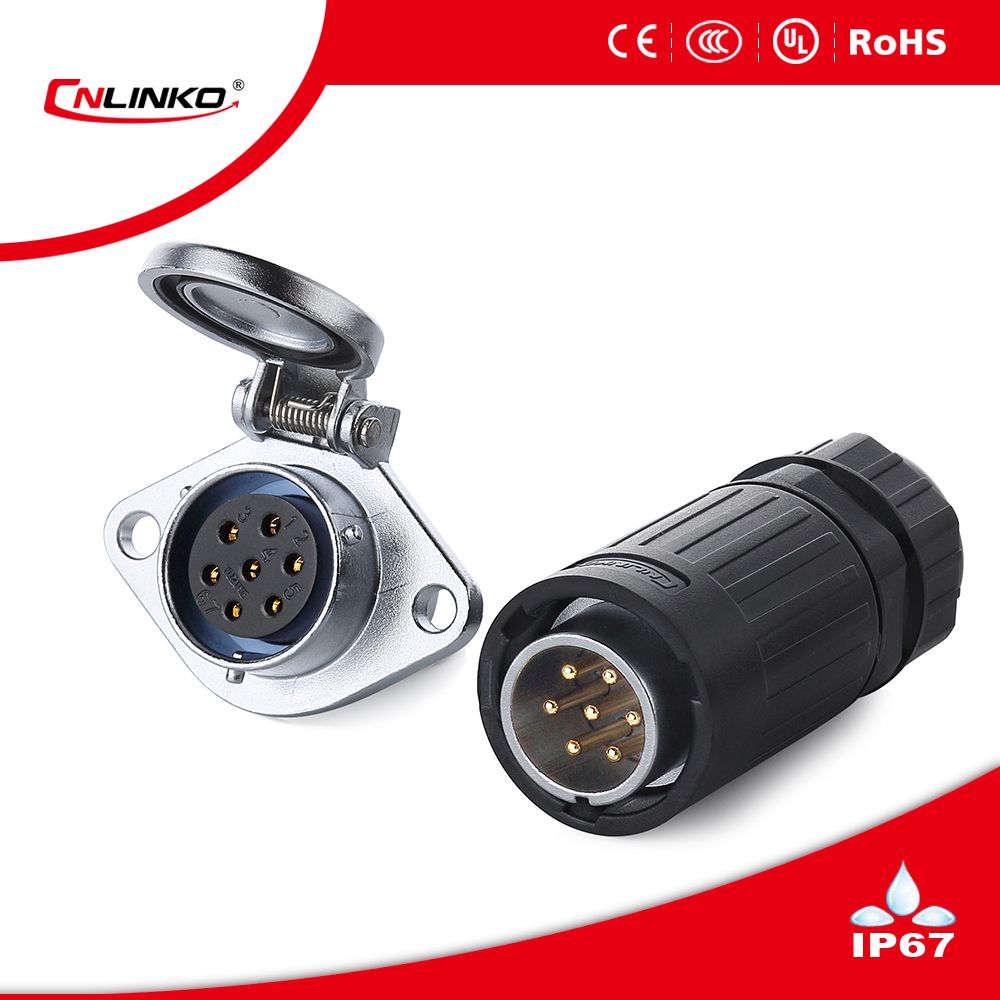

Ya-20 7pin Waterproof Power Connector for LED Display

Prod Model:	YA-20-C07PE-03-001, YA-20-J07SX-01-001
Contact Diameter × Number:	Φ2.0×7
Rated Current:	12A
Operating Voltage (AC.V.RMS):	500V
Contact Resistance:	<2.5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP65
Assembly Wire:	Solder
Waterproof Circle:	Silica Gel
Connecting Mode:	1/4 Bayonet Connect
Housing,The Insulating Parts:	High Performance Engineering Plastics
Application:	LED Display, DMX Lighting
Gender:	Male and Female

Product Description

YA-20 serials connector is with unique bayonet locking type design, rotary locking, which is easy to operate and widely used in LED display screen, Audio, commerce, entertainment, stage equipment, DMX lighting, Industrial equipment. It is including plug and socket with soldering for cable to ensure easy and reliable fully connected.

1. Multi-pins design for varies industrial request. (2, 3, 4, 5, 7, 9, 12 pin)
2. Socket with zinc alloy materials,which is against high frequency noise and electromagnetic interference.
3. Plug with PBT shell and gold-plated contact.
4. High performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
5. Stable electrical performance,anti-pressure, against high temperature,anti-explosion and anti-corrosion.
6. Waterproof level: IP65/IP67
7. Rated current:20A/12A/5A rms
8. 1/4 bayonet connect.
9. Certification: CE, CCC, UL, ISO9001, ROHS

Cable specification:	1.0mm²~1.5mm²/18~16 AWG
Diameter range:	Φ7mm~Φ9mm
Contact diameter × number:	Φ2.0×7
Rated Current:	12A
Operating voltage (AC.V.rms):	500V
Contact resistance:	<2.5mΩ
Temperature rise:	12A contact temperature below 30ºC, 15 Acontact temperature below 40ºC, 18A contact temperature below 50ºC.



Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65	Durability:	>500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	1/4 bayonet connect
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0
