Ya-20 Metal Housing Waterproof Connectors/7pin Connector

Name: Ya-20 Metal Housing Waterproof Connectors/7pin Connector
Brand: all-electronics-online.com
SKU: 788595745
Availability: InStock
Rating: 4.3 (102 reviews)

Price:	US $ 6/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YA20 metal
Cable Specification:	14-12AWG
Diameter Range:	8mm-12mm
Contact Diameter*Number:	2.7*2
Operating Voltage:	500V
Protection Level:	IP65/IP67
Durability:	500 Times
Connecting Mode:	Plug/Unplug
Assembly Wire:	Solder
Copper Needles:	Copper Alloy(Gold-Plated 4u)
Flammability Rating:	UL94-V0
Gender:	Male
Application:	UHF

Product Description

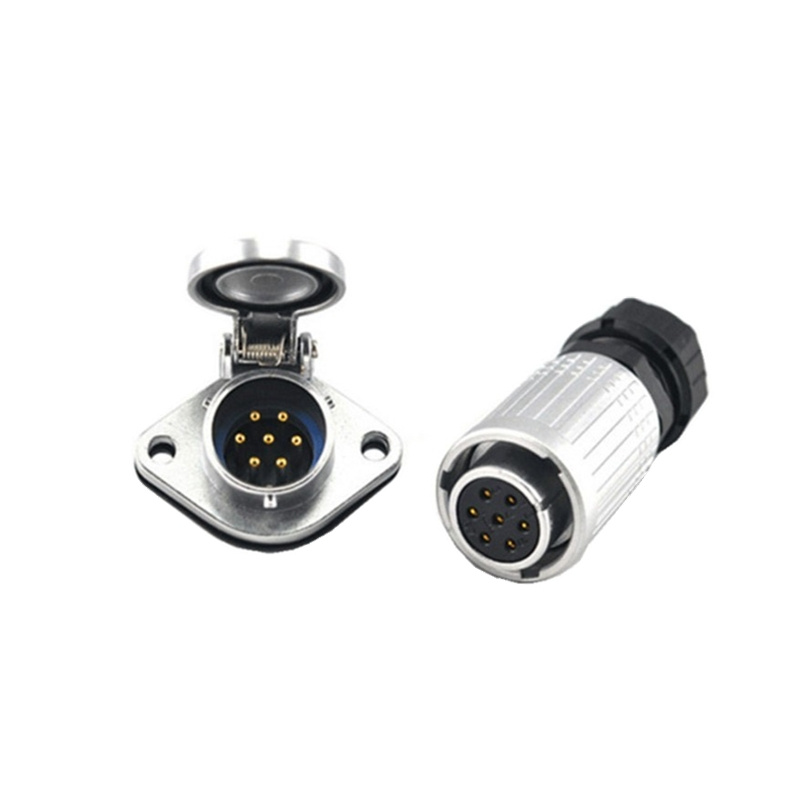

YA20 metal housing waterproof connectors/7pin connector

Product Features:

YA20 7pin metal connector
Specifications:
Connecting mode:	Screw connect
Protection level:	IP65/IP67
Cable specification:	1.0mm² ~ 1.5mm² /18-16AWG
Diameter range:	Φ7mm ~Φ9mm
Contact diameter×Qty:	Φ2.0×7
Current rating(A):	12A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Material:
Shell&insulated parts:	High-performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance, impact resistance, stretching resistance
- 1/4 bayonet connect; socket with cover
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

It is widely used in
·New energy
·LED
·Industrial control product
·Automotive
·Security product
·Power Supply
·Electric Vehicle
·Solar Energy
·IPC
·Various Mold
It is high performance and competitive price.
Welcome OEM/ODM.

Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton, or use customized packing with MOQ1000 pcs/model boxes
2. Lead time: 7-10 working days after received deposit for USB Convert Serial Cable Connector
3. DHL/UPS/FedEx/EMS/TNT(door to door) or use customer partner

Our Services
1. Supply OEM and ODM service for USB Convert Serial Cable Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available for USB Convert Serial Cable Connector
5. Supply the best service to you with the contact details below:

TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312490297

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
