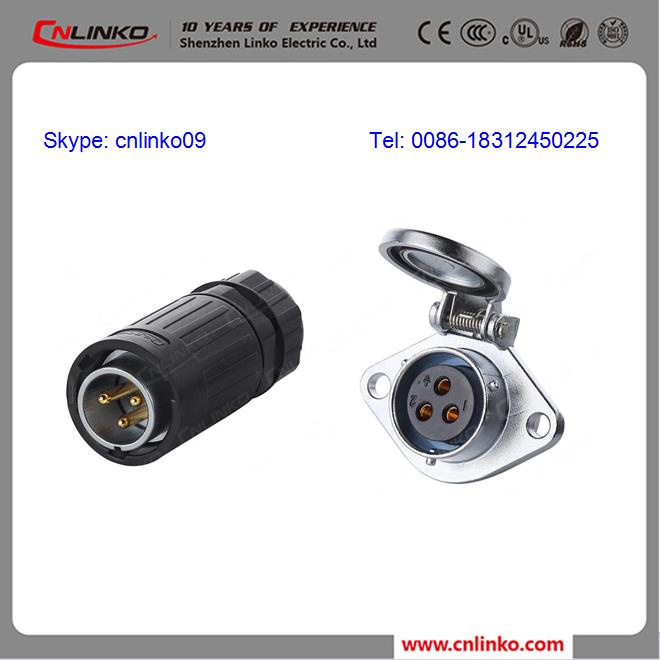

Ya20 3pin Waterproof Connector/Cable Connector

Name: Ya20 3pin Waterproof Connector/Cable Connector
Brand: all-electronics-online.com
SKU: 776587285
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 5.5/Set
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Set
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YA-20-C03PE-01-001 & YA-20-J03SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	2.5mm-4mm2/14-12AWG
Diameter Range:	Od8-12mm
Rated Current:	20A
Operating Voltage:	500V
Withstanding Voltage:	2500V

Product Description

YA20 3pin waterproof connector/cable connector

Product Description

1.LED display

2.Lighting equipment ,

3.AUDIO,Live stage action,DMX lighting.

4.industrial control test and measurement equipment

5.AV systems,broadcast television and communications industry and other fields.

YA series electrical connectors IP65/IP67

1.multi-pins(2-12 PINS) for varies industrial demands

2.Zinc alloy material against high frequency noise and electromagnetic interference

3.gold-plated contact, high performance of corrosion resistance and

4.electrical conductivity effectively deal with temperature rise.

5.PBT shell performance stable, compression, anti-explosion and anti-deformation

6.1/4 bayonet connector.

7.protection level:IP65/IP67

YA20 3pin power connector
Specifications:
Connecting mode:	plug & unplug
Protection level:	IP65/IP68
Cable specification:	2.5mm² ~ 4 mm² /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7*3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with Metal cover

Packaging & Shipping

Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at: +86-18312450225
