| Prod Model: |
BT-680 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Transmitter |
| Function: |
Signal Transmitting Device |
| Condition: |
New |
| Input Frequency: |
470-862MHz(Customized) |
| Receiving Range: |
UHF |
| Gain: |
6-12dB |
| Frequency Range: |
470 ~ 1400MHz(Can Select) |
| Size: |
Element Can Be Selected |
| Color: |
Can Be Selected |
| Polarization: |
V/H |
| Usage: |
TV Antenna |
| Operating Wavelength: |
Short Wave |
| Material: |
Al |
| Directionality: |
Directional Antenna |
| VSWR: |
<1.5 |
| Usage Occasion: |
TV Antenna |
Product Description

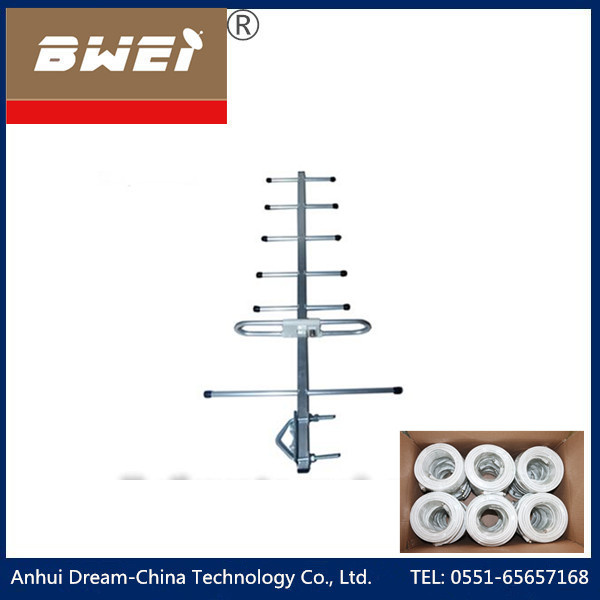

Yagi Antenna for DVB-T TV Signal Receiving
Main Features:
The yagi antenna use selected aluminum alloy,more effective to prevent antenna from Corrosion
of acid rain,caustic soda,salt spray in outdoor use.
Strong directional,high gain,signal stability,strong anti-interference ability ,long distance receiving
and so on ,suitable for user outdoor use for a long time.
Specification:
Frequency Range: | 470 ~ 1400MHz(can select) |
Gain: | 7-16dBi(can select) |
Front to back ratio: | ≥13dB |
VSWR: | ≤1.5 |
Input impedance: | 75Ω |
Polarization: | V/H |
Max power: | 50W |
Lighting production: | Direct grounding |
Connector type: | F male of british standard or as per customer's request |
Antenna length: | 0.46m |
Cable length: | 0.4m or as per customer's request |
Diameter of installation pole: | 40~50mm |
