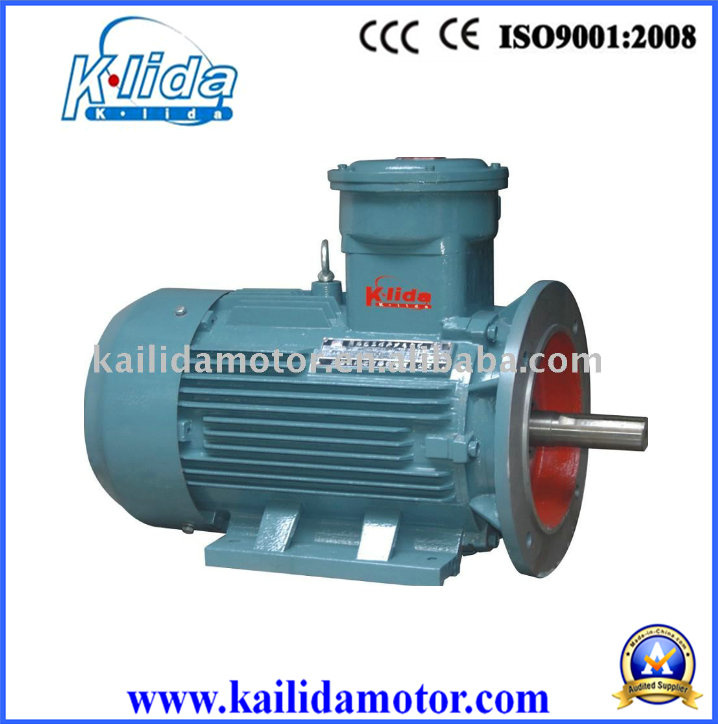

Yb2 100HP Explosion Proof AC Motor with Atex Certificate

Prod Model:	YB2-315S-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	100HP
Speed:	990rpm
Protect Feature:	Totally Enclosed
Function:	Driving
Structure:	Asynchronous Motor
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Explosion-Proof Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Explosion-Proof Type
Starting Mode:	y-δ Starting

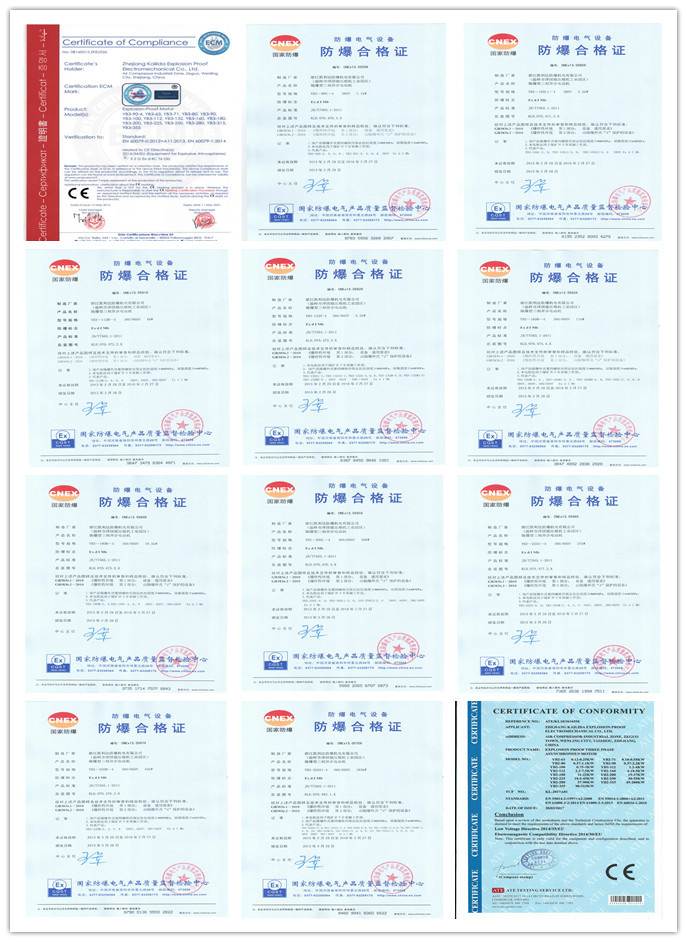

Certification:	Atex
Brand:	K.Lida

Product Description

Technical Parameter

1, Frame Size: 63-355 MM;
2, Rated Output: 0.12-315 KW or 0.10-420 HP;
3, Rated Voltage: 220/380V, 380/660 V or to be your request;
4, Rated Frequency: 50 Hz, 60 Hz, 50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10;
6, Speed: 590 - 2980 r/min
7, Ambient Temperature: -15° C- 40° C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 0.43- 556.2 A (AC);
11, Duty: Continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1, 000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet.


Kailida motors advantage:

Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.

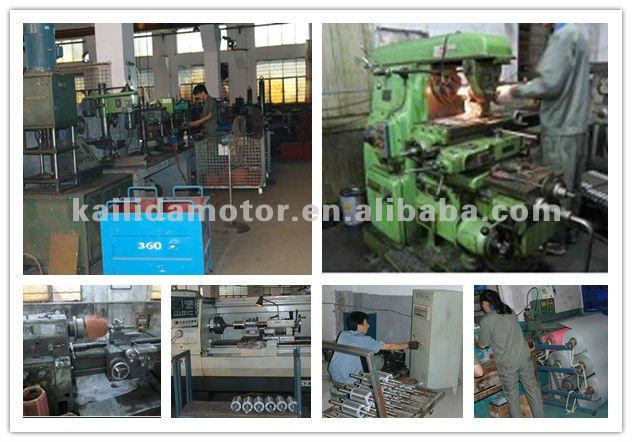

How can we do for a motor:
Stamping of lamination
Rotor die-casting
Winding and inserting both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Motor assembly
Painting both wet paint and powder coating
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing



Welcome your sincere inquiry about ELECTRIC MOTORS, We look forward you to visiting our factory. We remain the best service all the time. Thank you very much.
