Yb3 Series Explosion-Proof Three Phase Asynchronous Motor

Name: Yb3 Series Explosion-Proof Three Phase Asynchronous Motor
Brand: all-electronics-online.com
SKU: 791043705
Availability: InStock
Rating: 5 (124 reviews)

Price:	US $ 50-4500/Piece
Min Order:	1/Piece
Pay Type:	L/C,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YB3-315L2-2
Rated Power:	0.55-315kw
Frame Size:	80-355
Protection Degree:	IP55
Efficiency Class:	GB18613-2012 Grade 3 (Ie2)
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Explosion-Proof Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Explosion-Proof Type
Starting Mode:	Direct on-line Starting
Certification:	Ce
Brand:	Ly

Product Description

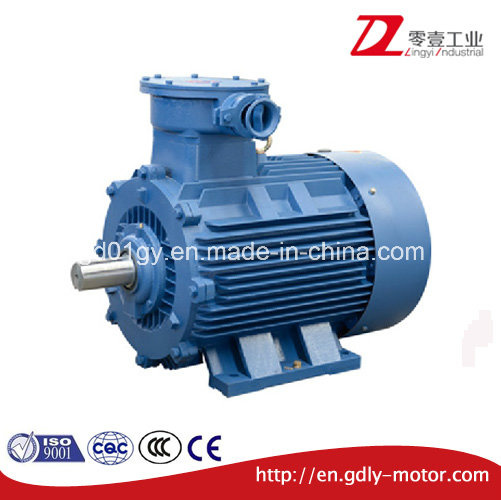

Flameproof Three-phase Asynchronous Motor

Explosion Proof Asynchronous Electric Motor Summary

Rated power	0.55-315kW
Frame size	80-355
Protection degree	IP55
Insulation class	F
Cooling method	IC411
Duty	S1
Efficiency class	GB18613-2012 grade 3 (IE2)
Explosion-proof class	ExdIIBT4Gb, ExdIGb

Descriptions

1. Three-phase AC motor fully match standard of international electrician's committee (IEC),
has international compatibility.

2. Widely used in most countries worldwide.

3. With high locked-rotor torque dependable circulation, beautiful shape, low lad noise and long lifespan.

Structural characteristics

1. The YB3 series electrical motors with high-strength cast iron structure, conform to the requirements of GB3836.1-2010.(Electrical apparatus for explosive gas atmospheres
Part 1: general requirements)

2. High-efficiency, beautiful shape, low-noise and small vibration.

Working conditions

ltitude not exceeding 1,000m above sea level
Ambient temperature subject to seasonal variations but not exceeding 40°C and not less than -15°C.

Application

Can be applied to petrochemical, metallurgical, coal, power station and more devices in explosive gas environment, such as fan, water pump, compressor and other industrial equipment.

Services

OEM accepted: customized design.
Good service: treat clients as friend.
Good quality: with strict quality control system, good reputation in market.
Packing: export standard: wooden case, plywood case, carton box for sea/air freight.
Fast/cheap delivery: big discount from forwarder (long contract).

Our Office Block

Company Staff

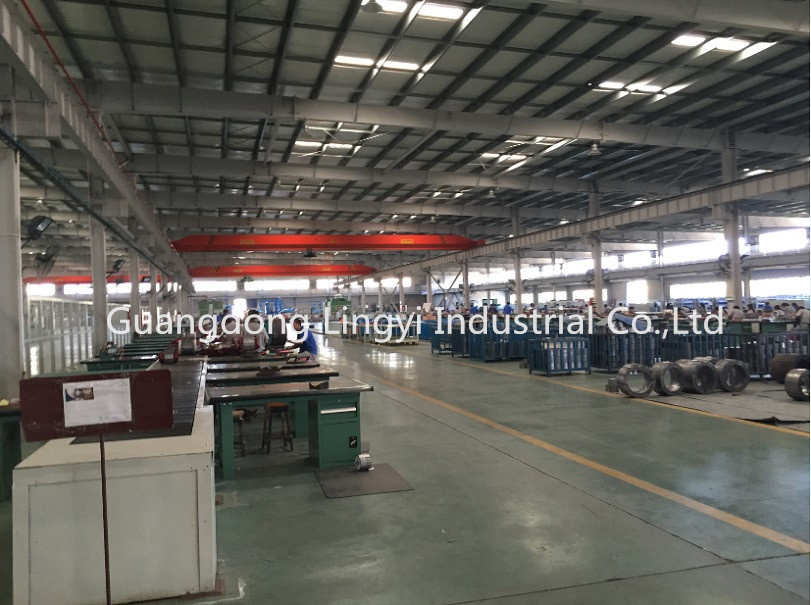

Factory

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
