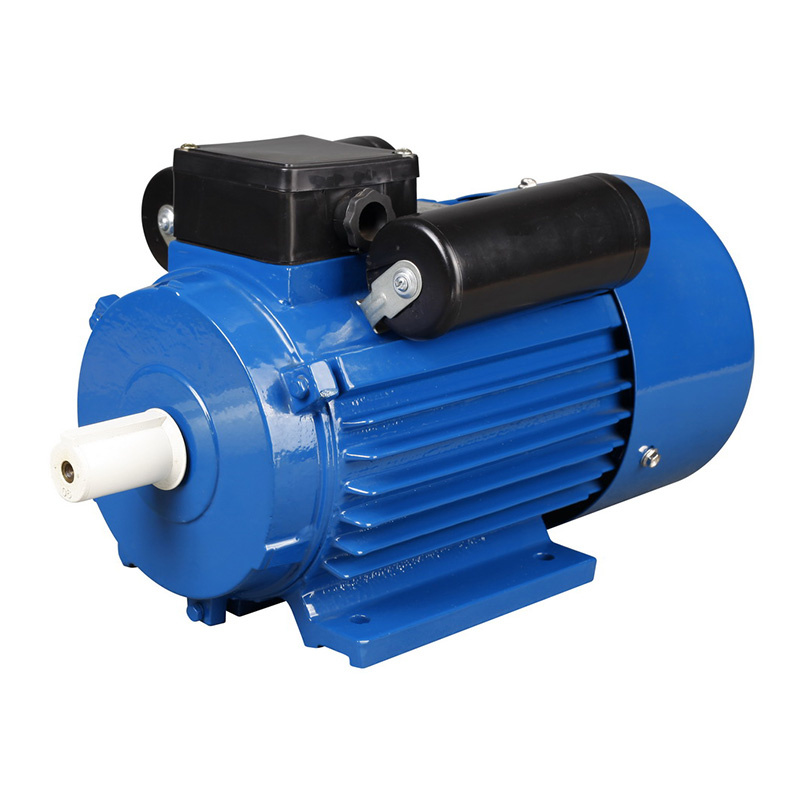

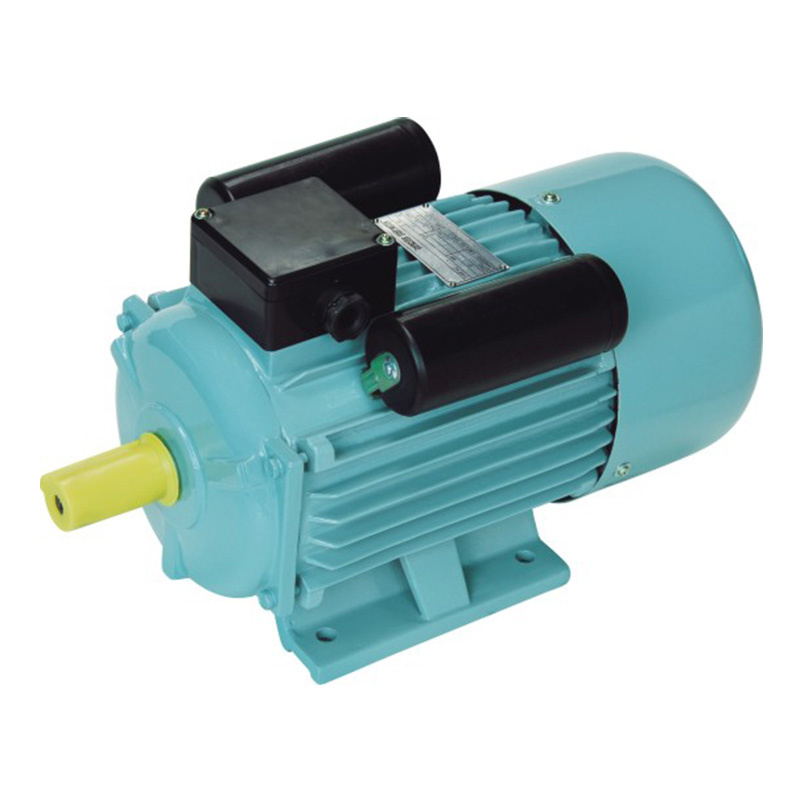

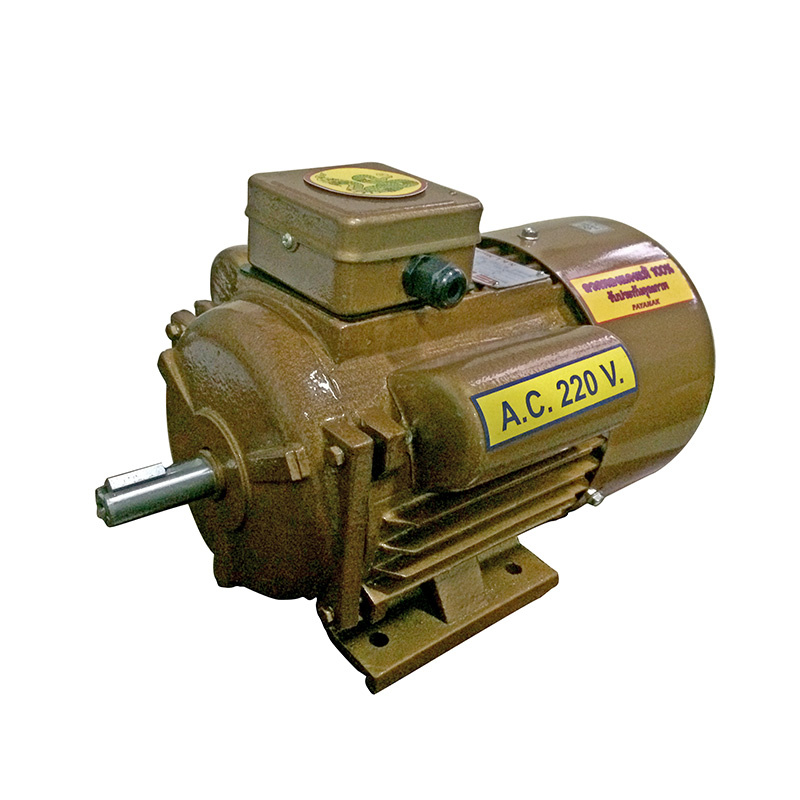

Yc/Ycl Heavy Duty Series Single-Phase Capacitor Start Asynchronous Motor
| Price: |
US $ 57/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YC/YCL |
| Rated Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP44, IP54, IP55 |
| Cooling Method: |
IC0141 |
| Duty: |
S1(Continuous) |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Single-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Variable Frequency Starting |
| Brand: |
Tongbo |
| Number Of Poles: |
2, 4, 6, 8 |
Product Description
Introduction:TBYL series three-phase induction motors, developed with new techniques, are renewal and upgrading products of Y series.TBYL series motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel design, beautiful modelling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy service, etc. The motors areAdopted with F class insulation and designed with assessing method for insulation system according to international practice, it enhances greatly safety and reliability of motors.TBYL series motors can be widely used as driving equipment of various machineries, same as, machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.Operating conditions:Ambient temperature:-15
ºC<
θ<40ºC
Altitude: not exceed 1000mRated voltage:110V,115V,120V,220V,230V,240VRated frequency: 50Hz or 60HzProtection class:IP44,IP54Insulation class: B,FCooling method: IC0141Duty:S1(continuous)Installation size and overall dimension:| Frame NO. | | Mounting Dimensions(mm) | | | | | | | | | | | | | | Frame Dimensions (mm) | | | | | |
| A | B | c | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | AE | HD | L |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 140 | - | 180 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 120 | 110 | 200 | 310 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 140 | 120 | 240 | 355 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 140 | 120 | 240 | 385 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 220 | 145 | 130 | 260 | 415 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 245 | 250 | 160 | 140 | 300 | 440 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 262 | 210 | 150 | 350 | 470 |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 262 | 210 | 150 | 350 | 470 |
Technical date| Model | Rated Output | Speed(r.p.m) | Current(A) | Eff.(%) | Powerfactor(cos) | lst/ln | Tst/Tn | |
| kW | HP |
| YC711-2 | 0.18 | 1/4 | 2800 | 1.9 | 63.0 | 0.7 | 6.5 | 3.0 | 1.8 |
| YC712-2 | 0.25 | 1/3 | 2800 | 2.4 | 65.0 | 0.72 | 6.5 | 3.0 | 1.8 |
| YC80A-2 | 0.37 | 1/2 | 2840 | 3.5 | 66.0 | 0.74 | 6.5 | 3.0 | 1.8 |
| YC80B-2 | 0.55 | 3/4 | 2850 | 5.04 | 67.0 | 0.74 | 6.5 | 3.0 | 1.8 |
| YC80C-2 | 0.75 | 1 | 2850 | 6.68 | 68.0 | 0.75 | 6.5 | 3.0 | 1.8 |
| YC90S-2 | 1.10 | 15 | 2850 | 8.93 | 70.0 | 0.8 | 7.0 | 2.5 | 1.8 |
| YC90L-2 | 1.50 | 2 | 2870 | 11.4 | 73.0 | 0.82 | 7.0 | 2.5 | 1.8 |
| YC100L-2 | 2.20 | 3 | 2900 | 16,50 | 74.0 | 0.82 | 7.0 | 2.5 | 1.8 |
| YC112M1-2 | 3.00 | 4 | 2900 | 21.4 | 76.0 | 0.84 | 7.0 | 2.2 | 1.8 |
| YC112M2-2 | 3.70 | 5 | 2900 | 24.8 | 79.0 | 0.86 | 7.0 | 2.2 | 1.8 |
| YC711-4 | 0.12 | 1/6 | 1450 | 1.9 | 48.0 | 0.58 | 6.0 | 3.0 | 1.8 |
| YC712-4 | 0.18 | 1/4 | 1450 | 270 | 50.0 | 0.6 | 6.0 | 3.0 | 1.8 |
| YC80A-4 | 0.25 | 1/3 | 1450 | 3.52 | 52.0 | 0.62 | 6.0 | 3.0 | 1.8 |
| YC80B4 | 0.37 | 1/2 | 1450 | 4.69 | 56.0 | 0.64 | 6.0 | 3.0 | 1.8 |
| YC80C-4 | 0.55 | 3/4 | 1450 | 6 | 60.0 | 0.65 | 6.0 | 3.0 | 1.8 |
| YC90S4 | 0.75 | 1 | 1450 | 7,50 | 63.0 | 0.72 | 6.5 | 2.5 | 1.8 |
| YC90L-4 | 1.1 | 1.5 | 1450 | 10.4 | 67.0 | 0.72 | 6.5 | 2.5 | 1.8 |
| YC100L-4 | 1.5 | 2 | 1450 | 13 | 72.0 | 0.73 | 6.5 | 2.5 | 1.8 |
| YC112M-4 | 2.2 | 3 | 1450 | 18.5 | 73.0 | 0.74 | 6.5 | 2.5 | 1.8 |
| YCL132SA-4 | 3 | 4 | 1450 | 22.4 | 76.0 | 0.8 | 6.5 | 2.2 | 1.8 |
| YCL132SB4 | 3.7 | 5 | 1450 | 26 | 79.0 | 0.82 | 6.5 | 2.2 | 1.8 |
| YCL132M1-4 | 5.5 | 7.5 | 1450 | 32.5 | 85 | 0.9 | 6.5 | 2 | 1.8 |
| YCL132M2-4 | 7.5 | 10 | 1450 | 40 | 85 | 0.9 | 6.5 | 2 | 1.8 |
FUAN TONGBO ELECTRICAL MACHINERY CO. Ltd. was founded on July 1st, 2009 in FU'AN city, "the city of electric machinery", as an export oriented manufacturer of Electric Motors, AC Generators and Generator Sets. We specialize in R&D, production, sales and customer service of said items and pride ourselves as professionals in related area.
Our own brand "TONG BO" consists of different models of motors listed as below:
1. Three phase asynchronous motor - Y series, Y2 series, AEEF series etc.
2. Single phase asynchronous motor --YC series, YL series, JY series
3. Aluminum Casing three phase asynchronous motor --MS series
4. Aluminum Casing single phase asynchronous motor--MC series, MY series, ML series
"TONGBO" Brand AC generator models are listed as below:
1. Single phase ST series with brush
2. Three phase STC series with brush
3. Copy Stamford TBS brushless series
We also have generator sets like CUMMINGS series generator set, YUCHAI series generator set, WEICHAI series generator sets etc.
Throughout design, manufacturing process, material selection, production, equipment testing, quality control, we make every endeavor to ensure our production is in strict accordance with ISO9001 Quality Management System in order to yield high quality products.
Our products travel widely from South-east Asia to as far as Middle-east, Africa also US and European countries. TONGBO has won a high admiration and is widely trusted at home and abroad.
Our goal is to build "TONGBO" into a world-renowned brand. In order to achieve that, we promise to run an honest business by putting quality and customer satisfaction as our top priorities. With "Honesty, Team-spirit, Responsibility, Hard-work and Gratitude "as essence of our corporate culture, We shall continue to provide our valued customers with high quality products and professionalism to the best of our abilities.
