Ych5 Bar and Fuse Type Switch Disconnector

Name: Ych5 Bar and Fuse Type Switch Disconnector
Brand: all-electronics-online.com
SKU: 698967405
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 0.25/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCH5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Switch
Arc-Extinguishing Medium:	Vacuum
Function:	Ovp(Overvoltage Protection)
Type:	Temperature Fuse
Usaga:	Plug
Breaking Capacity:	High Voltage Circuit Breakers

Product Description

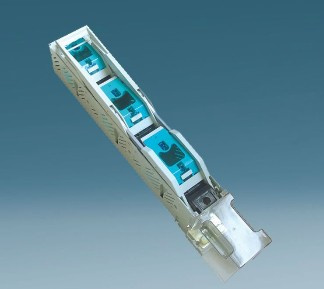

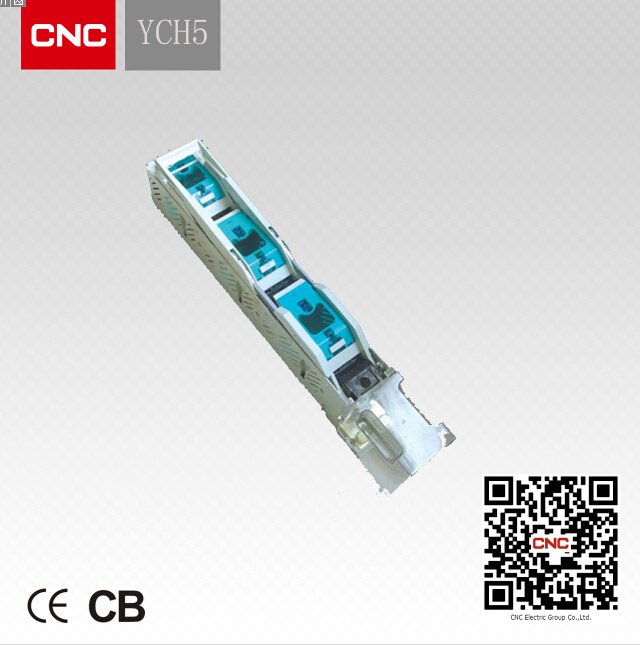

YCH5 bar and fuse type switch disconnector
1: CCC, CE, ISO, IEC
2: AC 160A~630A
3: OEM
YCH5 bar and fuse type switch disconnector
1. Model: YCH5 series
2. Standard: IEC60947-3
3. Function: Protection against overcurrent
3. Rated voltage: 660V
4. Rated current: 160, 250, 400, 630A
6. Rated frequency: 50Hz
General:
YCH5 series bar and fuse type switch disconnector is applicable in the circuit of rated voltage AC 660V and below, rated current AC16 0A-630A, rated frequency of 50/60Hz.

Rated thermal current	160A	250A	400A	630A
Rated insulation voltage	8000V
380V AC20	160A	250A	400A	630A
380V AC21	160A	250A	400A	630A
380V AC22	160A	250A	400A	630A
660V AC20	160A	250A	400A	630A
660V AC21	100A	200A	315A	425A
660V AC22	100A	160A	315A	315A
Match fuse	NT00	NT1	NT2	NT3
380V rated current of fuse (breaking capacity)	20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160(≥ 100kA)	80, 100, 125, 160, 200, 224, 250(≥ 100kA)	125, 160, 200, 224, 250, 300, 315, 355, 400(≥ 100kA)	315, 355, 400, 425, 500, 630(≥ 100kA)
660V rated current of fuse (breaking capacity)	20, 25, 32, 35, 40, 50, 63, 80, 100 (≥ 50kA)	80, 100, 125, 160, 200 (≥ 50kA)	125, 160, 200, 224, 250, 300, 315 (≥ 50kA)	315, 355, 400, 425 (≥ 50kA)

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
