YCL Series IP54 Single Phase AC Induction Motor

YCL Series IP54 Single Phase AC Induction Motor
Price: US $ 15-350/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: YCL SERIES
Insulation Class: Class B or Class F
Capacitor: Start and Running
Application: Power Tools
Operating Speed: Constant Speed
Number Of Stator: Single-Phase
Rotor Structure: Squirrel-Cage
Casing Protection: Closed Type
Starting Mode: Auto-induction Voltage-reduced Starting
Species: Yc
Number Of Poles: 2/4
Certification: Ce
Brand: Dongfeng or OEM

Product Description

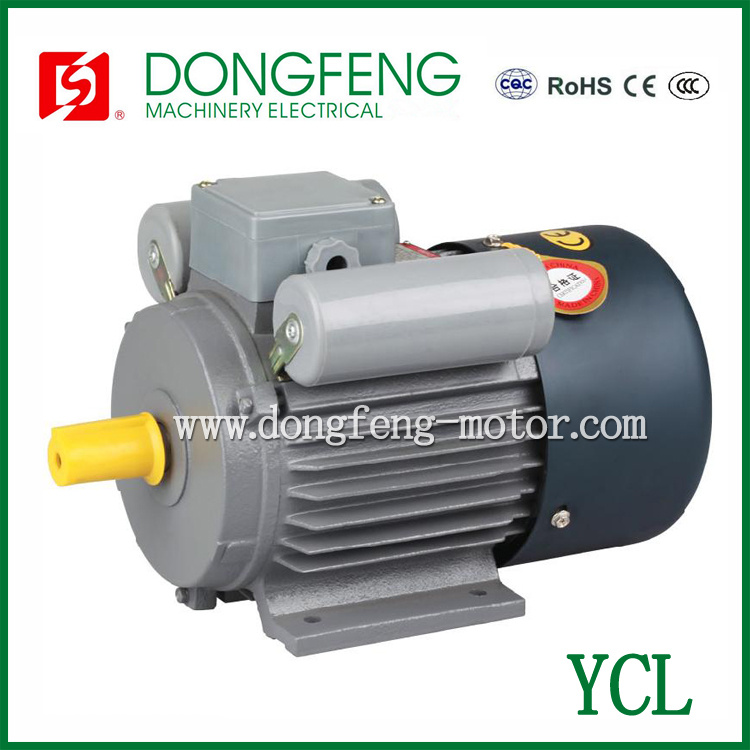

YCL SINGLE PHASE AC ELECTRIC MOTOR

INTRODUCTION

YCL series motors are totally enclosed fan cooled (TEFC) heavy-duty single-phase capacitor start induction motors. It is available for driving small size machine equipment.

Features: quite operation, low vibration, low power consumption, simple construction

Applications: air-compressor, pumps, fans, agriculture equipment, farming machine, building service, manufacturing industry, small machines, etc.

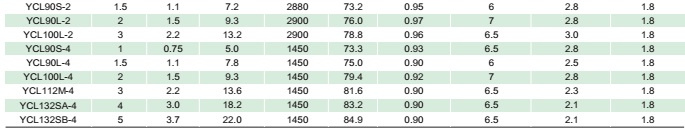

RANGE OF PERFORMANCE

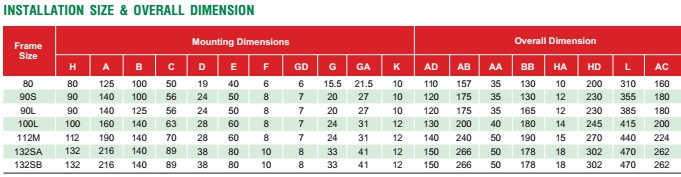

Frame Size: H80~H132
Rated Power Range: 0.37KW ~ 3.7KW

OPERATING CONDITIONS
Ambient Temperature: -15ºC≤ θ ≤ 40ºC
Above Sea Level: not exceed 1000m
Rated Voltage: 220V, 110V ~ 240V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F
Protection Class: IP44/54
Duty: S1








OEM/ODM
WE WILL MEET YOUR REQUIREMENTS!


WELCOME TO CONTACT WITH ME:
Lynn Huang





Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
