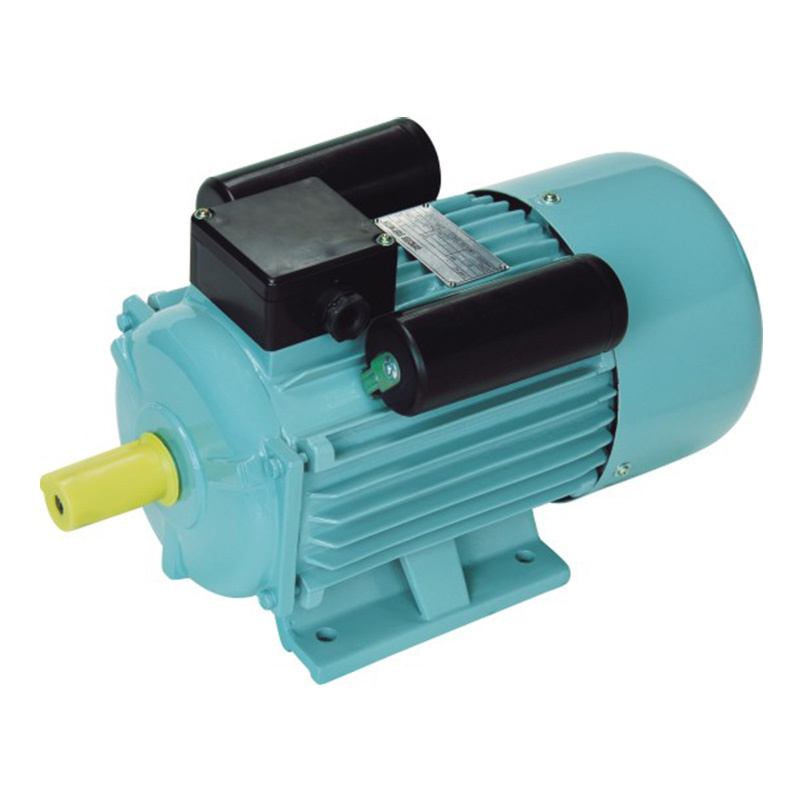

Ycl Series Single Phase Capacitor Start and Run Electric Motor
| Price: |
US $ 35-80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YCL YC Series, 0.75- 10HP |
| Rated Power: |
3/4 ~ 7.5HP |
| Frame Material: |
Cast Iron or Aluminum |
| Frame Size: |
80m~ 132L |
| Voltage: |
110, 120, 220, 230, 240V |
| Frequency: |
50 or 60Hz |
| Mounting Position: |
B3, B5, B35 |
| Protection Class: |
IP54 |
| Insulation Grade: |
F |
| Warranty: |
12 Months |
| Number Of Stator: |
Single-Phase |
| Function: |
Driving |
| Starting Mode: |
Capacitor Start & Run |
| Certification: |
Ce |
| Brand: |
Yinda or OEM |
Product Description
TEFC IP54 Double Capacitors Single Phase MotorOperating conditions:Ambient temperature:-15ºC<θ<40ºCAltitude: not exceed 1000mRated voltage:110V,115V,120V,220V,230V,240VRated frequency: 50Hz or 60HzProtection class:IP44,IP54Insulation class: B,FCooling method: IC0141Duty:S1(continuous)Installation size and overall dimension:| Frame NO. | | Mounting Dimensions(mm) | | | | | | | | | | | | | | Frame Dimensions (mm) | | | | | |
| A | B | c | D | E | F | G | H | K | M | N | P | R | S | T | AB | AC | AD | AE | HD | L |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 140 | - | 180 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 120 | 110 | 200 | 310 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 140 | 120 | 240 | 355 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 140 | 120 | 240 | 385 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 220 | 145 | 130 | 260 | 415 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 245 | 250 | 160 | 140 | 300 | 440 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 262 | 210 | 150 | 350 | 470 |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 262 | 210 | 150 | 350 | 470 |
| Model | Rated Output | Speed(r.p.m) | Current(A) | Eff.(%) | Powerfactor(cos) | lst/ln | Tst/Tn | |
| kW | HP |
| YC711-2 | 0.18 | 1/4 | 2800 | 1.9 | 63.0 | 0.7 | 6.5 | 3.0 | 1.8 |
| YC712-2 | 0.25 | 1/3 | 2800 | 2.4 | 65.0 | 0.72 | 6.5 | 3.0 | 1.8 |
| YC80A-2 | 0.37 | 1/2 | 2840 | 3.5 | 66.0 | 0.74 | 6.5 | 3.0 | 1.8 |
| YC80B-2 | 0.55 | 3/4 | 2850 | 5.04 | 67.0 | 0.74 | 6.5 | 3.0 | 1.8 |
| YC80C-2 | 0.75 | 1 | 2850 | 6.68 | 68.0 | 0.75 | 6.5 | 3.0 | 1.8 |
| YC90S-2 | 1.10 | 15 | 2850 | 8.93 | 70.0 | 0.8 | 7.0 | 2.5 | 1.8 |
| YC90L-2 | 1.50 | 2 | 2870 | 11.4 | 73.0 | 0.82 | 7.0 | 2.5 | 1.8 |
| YC100L-2 | 2.20 | 3 | 2900 | 16,50 | 74.0 | 0.82 | 7.0 | 2.5 | 1.8 |
| YC112M1-2 | 3.00 | 4 | 2900 | 21.4 | 76.0 | 0.84 | 7.0 | 2.2 | 1.8 |
| YC112M2-2 | 3.70 | 5 | 2900 | 24.8 | 79.0 | 0.86 | 7.0 | 2.2 | 1.8 |
| YC711-4 | 0.12 | 1/6 | 1450 | 1.9 | 48.0 | 0.58 | 6.0 | 3.0 | 1.8 |
| YC712-4 | 0.18 | 1/4 | 1450 | 270 | 50.0 | 0.6 | 6.0 | 3.0 | 1.8 |
| YC80A-4 | 0.25 | 1/3 | 1450 | 3.52 | 52.0 | 0.62 | 6.0 | 3.0 | 1.8 |
| YC80B4 | 0.37 | 1/2 | 1450 | 4.69 | 56.0 | 0.64 | 6.0 | 3.0 | 1.8 |
| YC80C-4 | 0.55 | 3/4 | 1450 | 6 | 60.0 | 0.65 | 6.0 | 3.0 | 1.8 |
| YC90S4 | 0.75 | 1 | 1450 | 7,50 | 63.0 | 0.72 | 6.5 | 2.5 | 1.8 |
| YC90L-4 | 1.1 | 1.5 | 1450 | 10.4 | 67.0 | 0.72 | 6.5 | 2.5 | 1.8 |
| YC100L-4 | 1.5 | 2 | 1450 | 13 | 72.0 | 0.73 | 6.5 | 2.5 | 1.8 |
| YC112M-4 | 2.2 | 3 | 1450 | 18.5 | 73.0 | 0.74 | 6.5 | 2.5 | 1.8 |
| YCL132SA-4 | 3 | 4 | 1450 | 22.4 | 76.0 | 0.8 | 6.5 | 2.2 | 1.8 |
| YCL132SB4 | 3.7 | 5 | 1450 | 26 | 79.0 | 0.82 | 6.5 | 2.2 | 1.8 |
| YCL132M1-4 | 5.5 | 7.5 | 1450 | 32.5 | 85 | 0.9 | 6.5 | 2 | 1.8 |
| YCL132M2-4 | 7.5 | 10 | 1450 | 40 | 85 | 0.9 | 6.5 | 2 | 1.8 |
| Type | Power | Horsepower | Voltage | Current | Frequency | Speed | Efficiency | Power factor | lst/le | Tst/Te | Tm/Te | Nosie |
|
| Kw | HP | V | A | Hz | r/min | % | CosΦ | Lw dB(A) |
|
| 801-2 | 0.75 | 1 | 220 | 5.94 | 50 | 2800 | 72 | 0.92 | 29 | 1.8 | 1.7 | 75 |
| 802-2 | 1.1 | 1.5 | 220 | 7.74 | 50 | 2800 | 75 | 0.92 | 40 | 1.8 | 1.7 | 75 |
| 90S-2 | 1.5 | 2 | 220 | 9.4 | 50 | 2840 | 76 | 0.95 | 55 | 1.7 | 1.7 | 78 |
| 90L-2 | 2.2 | 3 | 220 | 13.7 | 50 | 2840 | 77 | 0.95 | 80 | 1.7 | 1.7 | 78 |
| 100L-2 | 3 | 4 | 220 | 18.2 | 50 | 2840 | 79 | 0.95 | 110 | 1.7 | 1.7 | 83 |
| 112M-2 | 3.7 | 5 | 220 | 22.6 | 50 | 2840 | 81 | 0.95 | 135 | 1.8 | 1.7 | 84 |
| 132S-2 | 4 | 5.5 | 220 | 24.8 | 50 | 2880 | 82 | 0.95 | 148.5 | 1.8 | 1.7 | 84 |
| 132M-2 | 5.5 | 7.5 | 220 | 34.5 | 50 | 2880 | 82 | 0.95 | 208 | 1.7 | 1.7 | 84 |
| 801-4 | 0.55 | 0.75 | 220 | 4 | 50 | 1400 | 68 | 0.92 | 21 | 1.7 | 1.7 | 70 |
| 802-4 | 0.75 | 1 | 220 | 5.2 | 50 | 1400 | 71 | 0.92 | 32 | 1.7 | 1.7 | 70 |
| 90S-4 | 1.1 | 1.5 | 220 | 7.2 | 50 | 1400 | 73 | 0.95 | 40 | 1.7 | 1.7 | 73 |
| 90L-4 | 1.5 | 2 | 220 | 9.6 | 50 | 1400 | 75 | 0.95 | 55 | 1.7 | 1.7 | 73 |
| 100L1-4 | 2.2 | 3 | 220 | 13.9 | 50 | 1400 | 76 | 0.95 | 80 | 1.7 | 1.7 | 78 |
| 100L2-4 | 3 | 4 | 220 | 18.6 | 50 | 1400 | 77 | 0.95 | 110 | 1.7 | 1.7 | 78 |
| 112M-4 | 3.7 | 5 | 220 | 22.8 | 50 | 1430 | 78 | 0.95 | 138 | 1.7 | 1.7 | 78 |
| 132S-4 | 4 | 5.5 | 220 | 25.2 | 50 | 1440 | 79 | 0.95 | 150 | 1.7 | 1.7 | 80 |
| 132M-4 | 5.5 | 7.5 | 220 | 35 | 50 | 1440 | 79 | 0.95 | 210 | 1.7 | 1.7 | 80 |

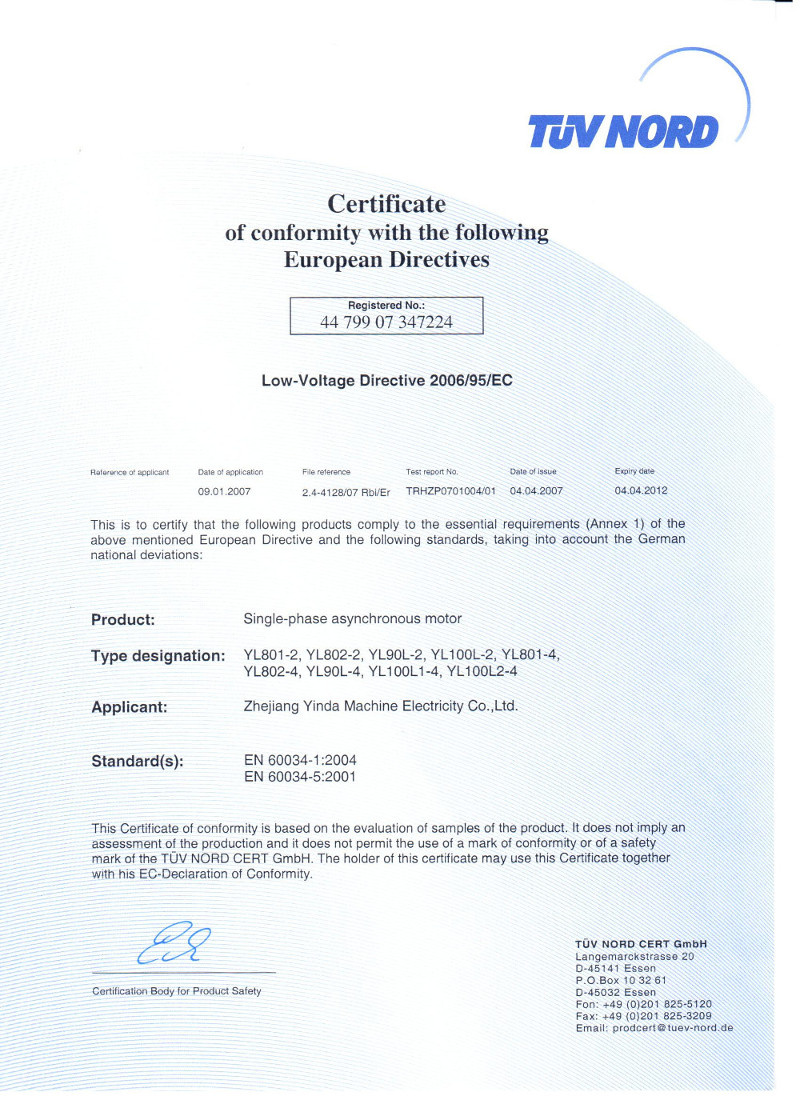

CE Certificate
Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.
Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.
Our products:
1. Electric Motors:
Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL
Three-phase Electric motor, IE3, IE2
Three-Phase double speed motor, YD series
Electromagnetic Brake AC Motor YEJ/Y2EJ series
Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series
Custom motors are available.
2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine
3. Welding Machines:
MMA inverter Welding, ZX7 series
TIG Welding
MIG Welding
BX1 series AC Arc Welding
Bx6 Series AC Arc Welding
Bx6 series stainless body welding
Bx series wooden leg welding
