Yct Series Electro-Magnetic Speed-Regulation Asynchronous Motor

Name: Yct Series Electro-Magnetic Speed-Regulation Asynchronous Motor
Brand: all-electronics-online.com
SKU: 780724225
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 157-9200/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	H112-355
Rated Power:	0.55-90kw
Rated Voltage:	220/380V;380/660V
Frequency:	50Hz, 60Hz
Protection Class:	IP23
Insulation Class:	B
Speed Range:	1:10
Speed Variation:	≤1%
Voltage Of Controller:	220V
Maximum Excitation Voltage:	≤90V
Application:	Industrial
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	y-δ Starting
Number Of Poles:	2, 4, 6, 8
Certification:	CE

Product Description

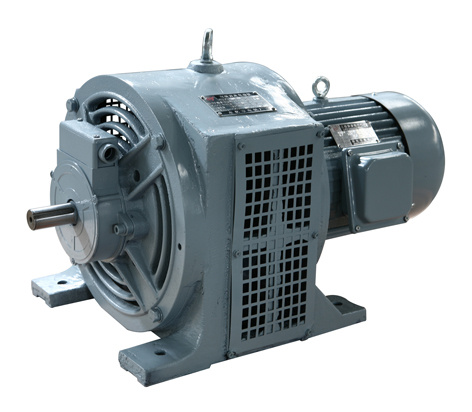

YCT series is a latest product designed conformably in whole country adopts ways of changing the excitation current size to adjust output speed. YCT series are of high efficiency, low noise, small vibration, wide range of speed-regulation, no out-of-control zone, and negative feedback of speed. Its mounting dimension and power totally conform to IEC standard and JB/T7123-93 standard.

YCT series is made up of three phase asynchronous motor, electromagnetic speed differential clutch and techno-generator. It is usually associated with JD or ZTK controller to compose a set of ac unlimited adjustment devices. YCT series can be widely used in textile, printing and dyeing, cement, paper, printing, rubber, plastics, sugar, stirring, blast, fiber, cable and other industrial sectors.

Technical Date

Frame Size Range	H112-355
Rated Power	0.55kw-90kw
Rated Voltage	220/380V;380/660V
Frequency	50Hz, 60Hz
Protection Class	IP23
Insulation Class	B
Speed Range	1:10
Speed Variation	≤1%
Voltage of Controller	220V
Maximum Excitation Voltage	≤90

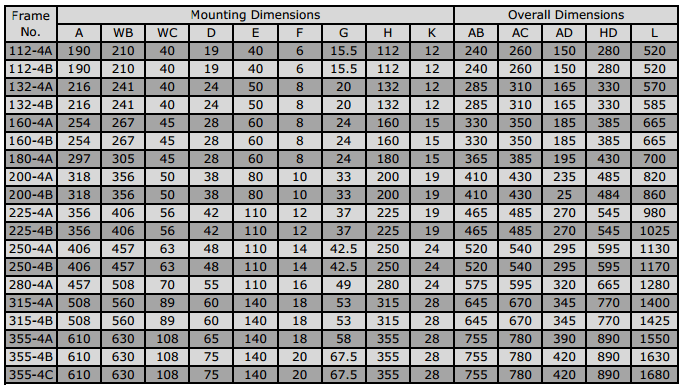

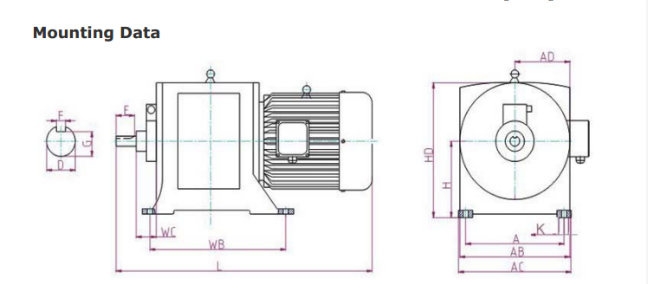

Installation Method & Dimensions

Package

Frame NO. 80--132 :Package by carton box and then packed by wooden box

Frame NO.160 and above:one wooden box per set
