Yct Series Electromagnetic Adjustable-Speed Electrical Motor

Name: Yct Series Electromagnetic Adjustable-Speed Electrical Motor
Brand: all-electronics-online.com
SKU: 814590925
Availability: InStock
Rating: 4.9 (102 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCT
Protection Rating:	IP21
AC Voltage:	110V/240/ 380V /660V
Frequency:	50Hz/60Hz
Working Type:	S1
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting

Product Description

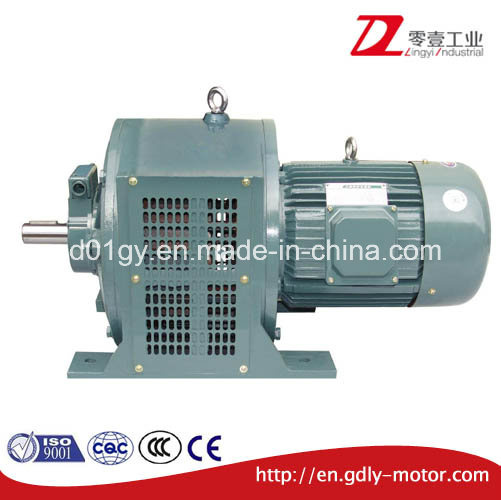

YCT series Adjustable Speed Electromagnetic Motor

Introduction
YCT series adjustable-speed electromagnetic motor composed of driving motors, electromagnetic slip coupling and controller.
YCT series motors are usually used under a constant torque load and are particularly suitable for the use under the load with a decreasing torque such as the centrifugal pump and fan.

Frame size	112~355
Rated power	0.55~90kw
Duty	S1
Insulation Class	F
Protection class	IP21
Cooling	IC411
Altitude	No more than 1,000 meters above sea level
Ambient Temperature	-15°C-40°C
Mounting	B3, B5, B35

Main applications including assembly lines, transfer equipments, plastic injecting machines, printing machines, pumps, fans, wire calendars, drawing machines etc.

Features
1. Wide adjustable speed range and stable speed adjustment;
2. Large start torque and smooth start performance;
3. Simple construction, reliable and easy for operation and maintenance;
4. Adjustable speed without out-of-control zone;.

Technical parameters

Type	Rated power	Rated Torque	Speed range	Weight
Type	KW	N.m	R/min	Kg
YCT112-4A	0.55	3.6	1230~125	53
YCT112-4B	0.75	4.9	1230~125	54
YCT132-4A	1.1	7.1	1230`125	75
YCT132-4B	1.5	9.7	1230~125	77
YCT160-4A	2.2	14.1	1250~125	115
YCT160-4B	3	19.2	1250~125	118
YCT180-4A	4	25.2	1250~125	170
YCT200-4A	5.5	36.1	1250~125	209
YCT200-4B	7.5	47.7	1250~125	217
YCT225-4A	11	69.1	1250~125	360
YCT225-4B	15	94.3	1250~125	375
YCT250-4A	18.5	110	1320~132	457
YCT250-4B	22	137	1320~132	474
YCT280-4A	30	189	1320~132	610
YCT315-4A	37	232	1320 ~132	840
YCT315-4B	45	282	1320~132	864
YCT355-4A	55	344	1340~440	/
YCT355-4B	75	469	1340~440	/
YCT355-4C	90	564	1340~600	/

FAQ

Q1: What about the shipping methods?

A1: For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT, DHL, EMS.

For heavy weight, you can choose to deliver the goods by air or by sea to save cost.

Q2: What about the payment methods?

A2: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union etc.

Q3: How much does it cost to ship to my country?

A3: It depends on seasons. Fee is different in different seasons. You can consult us at all times.

Q4: What's your delivery time?

A4: Usually we produce within 25-30days after the payment confirmed.

Q5: Can I print our logo/code/series number on your motor?

A5: Yes, of course.

Q6: Can I order some sample for our testing?

A6: Yes, but it needs some expense.

Q7: Can you customize my product in special requirment?

A7: Yes, we can offer OEM.

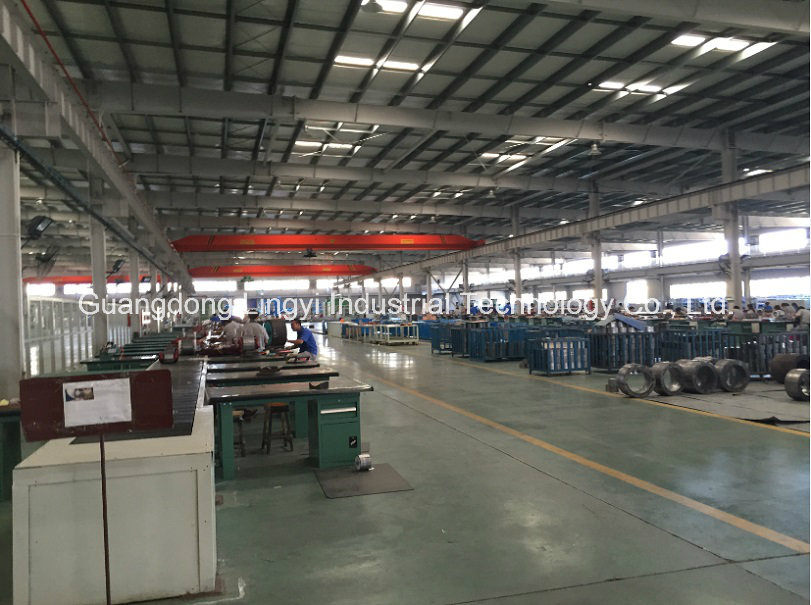

Factory

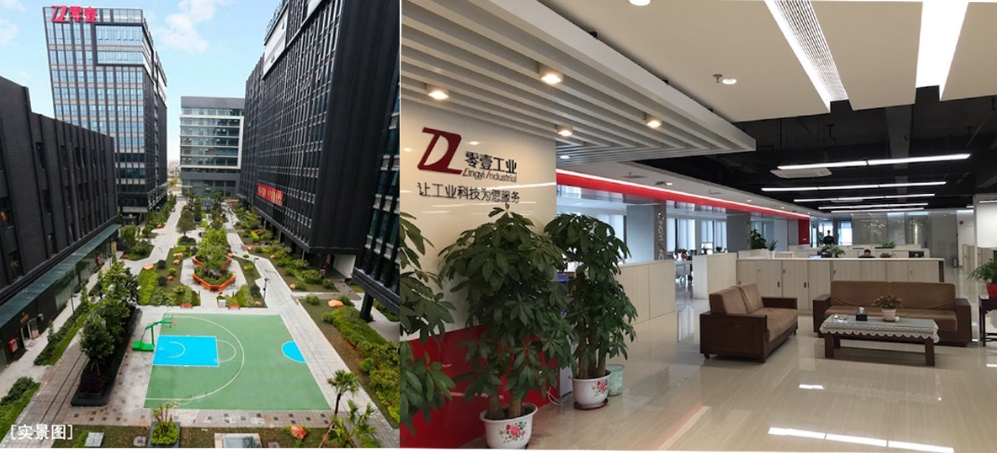

Office Block

Company Staff

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
