| Prod Model: |
YDQ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Level: |
300kv Per Unit or at Cutomized |
| Capacitance: |
at Customized |
| Continuous Working Duty: |
0.5 Hours@ Rated Voltage |
| Application: |
Test |
| Coil: |
Core-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Cooling Method: |
Gas Type |
| Brand: |
Sansion |
Product Description

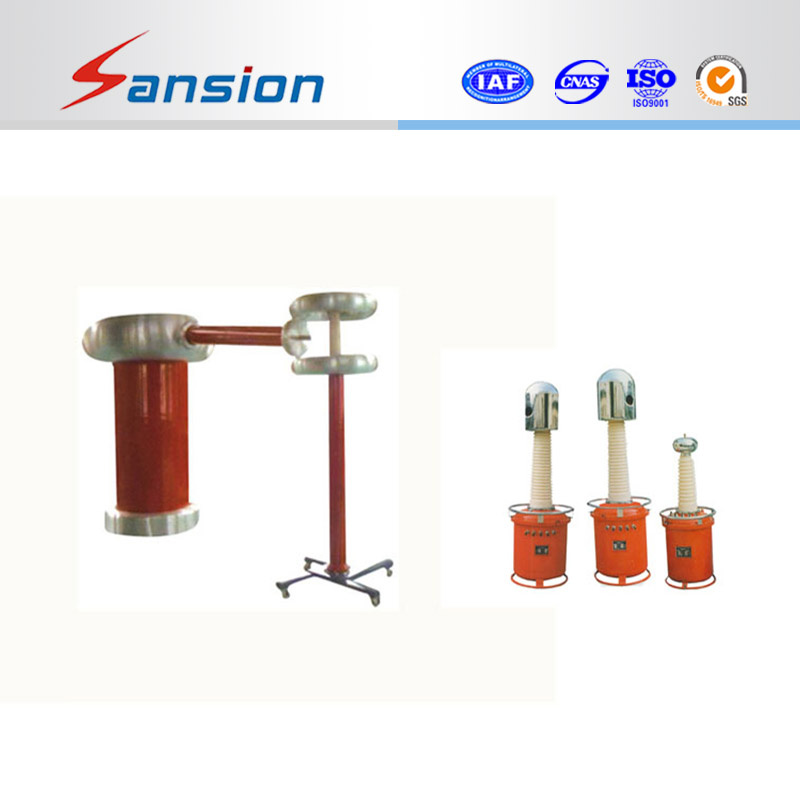

General information:The Series can wildly used to test insulation ability of various HV equipment, especially for which located in the wide field and plateau mountainous area.
Sansion gas transformers are virtually maintenance free and are manufactured in accordance with industry and international standards including ISO 9001.
Features:√ Small size, light weight. (40%-65% lighter than same level oil transformer)
√ Non-flammable, non-polluting transformer and maintenance free.
√ Unaffected by climate, long service life.
√ Insulation strength is higher than oil type transformer, no corona.
√ The voltage degree can reach to 300kV per unit.
√ Allowed continuous working 0.5 hours @ rated voltage, rated capacity, continuous working @ 2/3 rated current.
√ Over voltage protection.
Specifications:| Model | Capacity
KVA | LV Side | HV Side | Measuring Variation | 60mins Temperature RisingºC | Impedance Voltage% | No Load Current
% | Weight
kg | Oversize
LWH
mmmmmm | |
Voltage
V | Current
A | Voltage KV | Current
mA | |
| |
| 1.5/50 | 1.5 | 200 | 7.5 | 50 | 30 | 500 | 50 | 10 | <4 | 30 | 200275640 | |
| 3/50 | 3 | 200 | 15 | 50 | 60 | 500 | 50 | 10 | <4 | 35 | 240300690 | |
| 6/50 | 6 | 200 | 30 | 50 | 120 | 500 | 50 | 10 | <4 | 40 | 250355710 | |
| 10/50 | 10 | 200 | 50 | 50 | 200 | 500 | 50 | 10 | <4 | 60 | 260375750 | |
| 15/50 | 15 | 400 | 37.5 | 50 | 300 | 500 | 50 | 8 | <4 | 70 | 270420800 | |
| 20/50 | 20 | 400 | 50 | 50 | 400 | 500 | 50 | 8 | <4 | 85 | 285440820 | |
| 30/50 | 30 | 400 | 75 | 50 | 600 | 500 | 50 | 8 | <4 | 100 | 295386840 | |
| 50/50 | 50 | 400 | 125 | 50 | 1000 | 500 | 50 | 8 | <4 | 120 | 320416910 | |
| 10/100 | 10 | 200 | 50 | 100 | 100 | 1000 | 50 | 10 | <4 | 65 | 3504751300 | |
| 15/100 | 15 | 400 | 37.5 | 100 | 150 | 1000 | 50 | 8 | <4 | 85 | 5103901320 | |
| 20/100 | 20 | 400 | 50 | 100 | 200 | 1000 | 50 | 8 | <4 | 100 | 5404001340 | |
| 30/100 | 30 | 400 | 75 | 100 | 300 | 1000 | 50 | 8 | <4 | 110 | 5604101360 | |
| 50/100 | 50 | 400 | 125 | 100 | 500 | 1000 | 50 | 8 | <4 | 125 | 6004601410 | |
| 10/150 | 10 | 200 | 50 | 100 | 66.7 | 1500 | 50 | 10 | <4 | 90 | 2653801750 | |
| 15/150 | 15 | 400 | 37.5 | 150 | 100 | 1500 | 50 | 8 | <4 | 100 | 5103901800 | |
| 20/150 | 30 | 400 | 50 | 150 | 133.3 | 1500 | 50 | 8 | <4 | 110 | 5404151800 | |
| 30/150 | 30 | 400 | 75 | 150 | 200 | 1500 | 50 | 8 | <4 | 125 | 5604301800 | |
| 50/150 | 50 | 400 | 125 | 150 | 333.3 | 1500 | 50 | 8 | <4 | 140 | 6404901850 | |
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
Sansion Power Electric Co., Ltd was established in 2005, a technocrat who have rich experience of more than 10 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Main products:
HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and etc, now we have more than 60 employees including 20 technical engineers. We have obtained the ISO9001 quality system certification and all products strictly conform to the international IEC or Chinese state standards.
Sansion Power has three subsidiaries companies:
Sansion Power Electric Co., Ltd. (R&D, manufacturing, marketing)
Sansion Power Electric Engineering Co., Ltd. (Electrical installation, laboratory construction, on-site service)
Sansion Power Electric Equipment Rental Co., Ltd. (Power electrical testing products rental and service)
From the date of order placing, we usually need 3-7 working days to manufacturing. Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean. Sansion Power also can provide OEM service according your customized. We are sincerely looking forward to cooperate with you from all the countries of the whole world.
