Ydt Series Three-Phase Consequent-Poles Asynchronous Motor

Name: Ydt Series Three-Phase Consequent-Poles Asynchronous Motor
Brand: all-electronics-online.com
SKU: 704379822
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YDT SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temperature:	-15~40 Degree Centigrade
Altitude:	Not Exceeding 1000m
Rated Voltage:	380V or Any Voltage Between 220-760V
Rated Frequency:	50Hz\60Hz
Protection Class:	IP54\55
Insulation Class:	B\F\H
Cooling Method:	Ico141
Duty:	S1(Continous)
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Variable Frequency Starting
Species:	Y Series Three-Phase
Number Of Poles:	2,4,6,8,10
Certification:	ISO9001, CCC, CE, CQC, ISO14001
Brand:	Wedo

Product Description

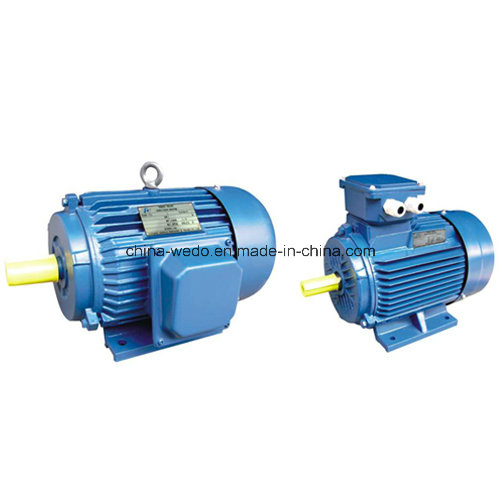

YDT SERIES THREE-PHASE CONSEQUENT-POLES ASYNCHRONOUS MOTOR

Y- ASYNCHRONOUS MOTOR
D- SPEED
T- LOAD OF FAN BOWERS OR PUMPS
250- FRAME SIZE
M- FRAME NO.(S=HORT,M=MEDIUM,L=LONG)
6/8- POLES

SERICE CONDITION:
1.       Ambient temperature: to be altered with the change of seasons but do not exceed 40ºC
2.       Altitude: to be used lower than 1000 meters above sea level.
3.       Rated frenquency:50HZ
4.       Rated voltage:380V
5.       Duty: continuous (s1)
6.       Metod of starting : can be started directly on full voltage for all sizes of motors

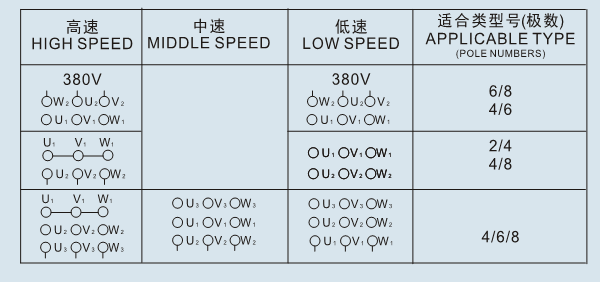

DESIGNATION FOR LEADING -OUT WIRE

Type	Output (kw)	Current (A)	Speed (r/min)	Efficiency (%)	Power Factor(COS)	Noiseleve DB(A)	Locked Torque Rated Torque	Locked Currend Rated Currend
YDT80M1-2/4	0.75/0.17	1.9/0.7	2850/1410	68.0/58.0	0.82/0.60	79	2.0/1.4	7.5/5.5
YDT80M2-2/4	0.95/0.25	2.4/0.9	2850/1410	70.0/64.0	0.81/0.65	79	2.0/1.4	7.5/5.5
YDT90S-2/4	1.40/0.30	3.5/0.9	2810/1430	71.0/70.0	0.82/0.72	83	2.0/1.4	7.5/5.5
YDT90L-2/4	1.90/0.40	4.3/1.1	2810/1430	75.0/72.0	0.86/0.73	83	2.0/1.4	7.5/5.5
YDT100L1-2/4	2.50/0.65	5.3/1.8	2890/1420	82.0/74.0	0.87/0.72	87	2.0/1.4	7.5/5.5
YDT100L2-2/4	3.10/0.80	6.4/2.2	2890/1420	82.0/76.0	0.87/0.72	87	2.0/1.4	7.5/5.5
YDT112M-2/4	4.40/1.10	9.2/2.5	2875/1440	82.0/80.0	0.88/0.74		2.0/1.4	7.5/5.5
YDT132S-2/4	5.90/1.40	11.7/3.5	2910/1450	83.0/80.0	0.91/0.74		1.9/1.3	7.5/5.5
YDT132M-2/4	8.00/2.00	15.3/4.7	2910/1450	85.0/83.0	0.91/0.77	91	1.9/1.3	7.5/5.5
YDT160M-2/4	12.50/2.80	24.1/6.6	2930/1460	86.0/85.0	0.91/0.75	91	1.9/1.3	7.5/5.5
YDT160L-2/4	16.50/3.80	31.0/8.7	2930/1460	87.0/86.0	0.91/0.76	95	1.9/1.3	7.5/5.5
YDT90S-4/6	1.10/0.32	2.9/1.1	1400/930	70.0/63.0	0.78/0.66	95	1.8/1.6	7.0/6.0
YDT90L-4/6	1.40/0.45	3.5/1.5	1400/930	72.0/68.0	0.81/0.66	75	1.8/1.6	7.0/6.0
YDT100L1-4/6	2.20/0.70	5.3/2.2	1430/945	80.0/73.0	0.79/0.66	75	1.8/1.6	7.0/6.0
YDT100L2-4/6	2.50/0.90	6.0/2.9	1430/945	81.0/74.0	0.78/0.67	78	1.8/1.6	7.0/6.0
YDT112M-4/6	3.20/1.10	7.1/3.1	1440/955	82.0/78.0	0.82/0.68	78	1.8/1.6	7.0/6.0
YDT132S-4/6	4.70/1.50	10.0/4.1	1450/970	84.0/81.0	0.83/0.68	82	1.8/1.6	7.0/6.0
YDT132M-4/6	6.70/2.20	13.8/5.7	1450/970	85.0/83.0	0.85/0.69	82	1.8/1.6	7.0/6.0
YDT160M-4/6	9.50/3.10	19.3/8.0	1455/975	87.0/83.0	0.84/0.69	86	1.8/1.6	7.5/7.0
YDT160L-4/6	12.00/4.00	24.4/10.0	1455/975	88.0/83.0	0.84/0.69	86	1.8/1.6	7.5/7.0
YDT180M-4/6	15.50/5.10	29.0/11.5	1460/980	87.0/81.0	0.84/0.72	90	1.5/1.5	7.5/7.0
YDT180L-4/6	18.50/6.20	34.3/13.9	1460/980	87.0/81.0	0.85/0.74	90	1.5/1.5	7.5/7.0
YDT200L-4/6	26.00/8.70	48.2/19.1	1465/980	88.0/83.0	0.85/0.77	92	1.5/1.5	7.5/7.0
YDT225S-4/6	33.00/11.00	60.7/24.2	1470/980	89.0/84.0	0.86/0.84	92	1.5/1.5	7.5/7.0
YDT225M-4/6	39.00/13.00	71.3/27.3	1470/980	90.0/85.0	0.86/0.85		1.5/1.5	7.5/7.0
YDT250M-4/6	47.00/16.00	84.2/32.3	1475/985	90.0/85.0	0.89/0.87		1.5/1.5	7.5/7.0
YDT280S-4/6	55.00/18.50	99.6/37.3	1480/985	90.0/85.0	0.88/0.86	94	1.5/1.5	7.5/7.0
YDT280M1-4/6	70.00/25.00	125.0/48.4	1480/985	91.0/87.0	0.88/0.87	94	1.5/1.5	7.5/7.0
YDT280M2-4/6	84.00/28.00	150.6/54.8	1480/985	91.0/87.0	0.88/0.87	98	1.5/1.5	7.5/7.0
YDT315S-4/6	95.00/32.00	177.4/65.3	1485/985	91.0/89.0	0.86/0.79	98	1.5/1.5	7.5/7.0
YDT315M-4/6	115.00/38.00	217.5/77.9	1485/985	92.0/90.0	0.86/0.78	100	1.5/1.5	7.5/7.0
YDT315L1-4/6	135.00/45.00	260.0/90.5	1485/985	92.0/90.0	0.86/0.80	100	1.5/1.5	7.5/7.0
YDT315L2-4/6	160.00/55.00	294.0/113.4	1485/985	93.0/91.0	0.86/0.80		1.5/1.5	7.5/7.0
YDT90S-4/8	1.00/0.22	2.5/1.0	1400/670	70.0/55.0	0.82/0.62		1.9/1.5	7.0/5.0
YDT90L-4/8	1.30/0.30	3.1/1.2	1400/670	72.0/58.0	0.82/0.63	75	1.9/1.5	7.0/5.0
YDT100L1-4/8	2.00/0.55	4.7/2.1	1420/690	80.0/65.0	0.80/0.61	75	1.9/1.5	7.0/5.0
YDT100L2-4/8	2.40/0.65	5.5/2.4	1420/690	80.0/66.0	0.81/0.61	78	1.9/1.5	7.0/5.0
YDT112M-4/8	3.20/0.90	7.4/3.3	1440/700	83.0/71.0	0.78/0.59	78	1.9/1.5	7.0/5.0
YDT132S-4/8	4.50/1.10	9.7/3.7	1450/715	84.0/75.0	0.82/0.59	82	2.0/1.2	7.0/5.0
YDT132M-4/8	6.30/1.50	13.2/4.9	1450/715	85.0/78.0	0.83/0.59	82	2.0/1.2	7.0/5.0
YDT160M-4/8	8.90/2.00	18.2/5.4	1440/720	85.0/82.0	0.85/0.67	86	2.0/1.2	7.0/5.0
YDT160L-4/8	12.00/2.70	23.5/6.9	1440/720	86.0/84.0	0.86/0.67	86	2.0/1.2	7.0/5.0

Type	Output (kw)	Current (A)	Speed (r/min)	Efficiency (%)	Power Factor(COS)	Noiseleve DB(A)	Locked Torque Rated Torque	Locked Currend Rated Currend
YDT180M-4/8	16.00/4.00	31.8/10.9	1470/725	88.0/84.0	0.85/0.65	90	2.0/1.2	7.0/5.0
YDT180L-4/8	19.50/5.00	38.6/13.4	1470/725	89.0/85.0	0.85/0.66	90	2.0/1.2	7.0/5.0
YDT200L-4/8	29.00/7.50	56.8/19.6	1475/730	90.0/87.0	0.85/0.66	92	2.0/1.2	7.0/5.0
YDT225M-4/8	40.00/9.50	74.6/25.5	1475/735	91.0/88.0	0.88/0.64	94	2.0/1.3	7.0/5.0
YDT250M-4/8	52.00/14.50	97.3/37.0	1480/735	91.0/88.0	0.87/0.66	98	2.0/1.3	7.0/5.0
YDT280S-4/8	65.00/17.00	122.8/41.8	1485/735	91.0/89.0	0.87/0.68		2.0/1.3	7.0/5.0
YDT280M-4/8	75.00/18.50	137.4/43.9	1485/740	91.0/90.0	0.88/0.70		2.0/1.3	7.0/5.0
YDT315S-4/8	92.00/25.00	174.8/58.7	1485/740	91.0/90.0	0.86/0.70		2.0/1.3	7.0/5.0
YDT315M-4/8	110.00/30.00	208.3/70.1	1485/740	92.0/91.0	0.86/0.70	100	2.0/1.3	7.0/5.0
YDT315L1-4/8	135.00/36.00	253.3/84.0	1485/740	92.0/91.0	0.87/0.70		2.0/1.3	7.0/5.0
YDT315L2-4/8	155.00/41.00	288.0/94.7	1485/740	92.0/91.0	0.87/0.71		2.0/1.3	7.0/5.0
YDT90S-6/8	0.65/0.25	2.3/1.3	930/700	65.0/52.0	0.63/0.85		1.8/1.6	7.0/6.0
YDT90L-6/8	0.80/0.35	2.9/1.6	930/700	67.0/56.0	0.62/0.58	73	1.8/1.6	7.0/6.0
YDT100L1-6/8	1.30/0.55	4.1/2.3	950/700	71.0/62.0	0.66/0.58	73	1.8/1.6	7.0/6.0
YDT100L2-6/8	1.60/0.75	3.2/2.9	950/700	74.0/66.0	0.67/0.59	75	1.8/1.6	7.0/6.0
YDT112M-6/8	2.20/0.90	6.0/3.4	950/705	74.0/67.0	0.68/0.69	75	1.8/1.6	7.0/6.0
YDT132S-6/8	2.60/1.20	6.9/4.1	960/720	79.0/73.0	0.71/0.60	79	1.8/1.6	7.0/6.0
YDT132M1-6/8	3.30/1.60	8.0/5.3	960/720	80.0/76.0	0.76/0.60		1.8/1.6	7.0/6.0
YDT132M2-6/8	4.50/2.20	11.0/7.1	960/720	82.0/77.0	0.75/0.60		1.8/1.6	7.0/6.0
YDT160M-6/8	6.50/3.20	14.9/9.5	970/725	84.0/80.0	0.76/0.61	83	1.8/1.6	7.0/6.0
YDT160L-6/8	9.00/4.50	20.3/13.0	970/725	86.0/82.0	0.77/0.62	83	1.8/1.6	7.0/6.0
YDT180L-6/8	13.00/6.50	26.0/15.1	970/725	86.0/81.0	0.77/0.65	86	1.5/1.5	7.0/6.0
YDT200L1-6/8	17.00/8.50	35.5/20.6	970/730	87.0/82.0	0.80/0.66	88	1.5/1.5	7.0/6.0
YDT200L2-6/8	22.00/11.00	44.3/27.8	970/730	88.0/83.0	0.80/0.68	88	1.5/1.5	7.0/6.0
YDT225M-6/8	30.00/15.00	62.3/32.2	980/730	89.0/87.0	0.83/0.78	92	1.5/1.5	7.0/6.0
YDT250M-6/8	37.00/18.00	72.1/38.5	980/735	90.0/87.0	0.86/0.80	92	1.5/1.5	7.0/6.0
YDT280S-6/8	45.00/22.00	86.8/46.2	985/735	90.0/88.0	0.86/0.81	96	1.5/1.5	7.0/6.0
YDT280M1-6/8	55.00/28.00	104.7/57.2	985/735	91.0/89.0	0.82/0.81		1.5/1.5	7.0/6.0
YDT280M2-6/8	65.00/32.00	122.0/66.6	985/735	91.0/89.0	0.82/0.81		1.5/1.5	7.0/6.0
YDT315S-6/8	75.00/37.00	145.1/40.4	985/735	91.0/90.0	0.84/0.78	100	1.5/1.5	7.0/6.0
YDT315M-6/8	90.00/45.00	171.6/90.4	985/735	92.0/91.0	0.85/0.82		1.5/1.5	7.0/6.0
YDT315L1-6/8	110.00/55.00	209.5/115.7	985/735	92.0/91.0	0.85/0.78		1.5/1.5	7.0/6.0
YDT315L2-6/8	132.00/66.00	252.0/137.4	985/735	92.0/91.0	0.85/0.78		1.5/1.5	7.0/6.0
YDT112M-4/6/8	2.30/0.80/0.60	5.9/3.2/2.7	1455/960/7.5	79.0/65.0/61.0	0.73/0.57/0.53	82	2.0/1.7/1.3	7.5/6.5/4.0
YDT132S-4/6/8	3.10/1.10/0.80	7.1/3.9/3.1	1460/970/720	81.0/71.0/68.0	0.79/0.60/0.57		2.0/1.7/1.3	7.5/6.5/4.0
YDT132M-4/6/8	4.50/1.50/1.10	9.8/4.7/3.9	1460/970/720	83.0/74.0/72.0	0.82/0.65/0.57		2.0/1.7/1.3	7.5/6.5/4.0
YDT160M-4/6/8	7.50/2.60/1.50	16.0/7.3/4.8	1460/980/730	84.0/79.0/79.0	0.82/0.67/0.58		1.8/1.6/0.95	7.5/6.5/4.0
YDT160L-4/6/8	10.20/3.50/2.0	20.6/9.5/6.0	1460/980/730	86.0/81.0/81.0	0.85/0.68/0.60	86	1.8/1.6/0.95	7.5/6.5/4.0
YDT180M-4/6/8	13.00/4.50/2.60	24.2/10.6/7.7	1460/980/730	86.0/80.0/80.0	0.90/0.80/0.63	86	1.8/1.6/0.95	8.0/7.5/5.5
YDT180L-4/6/8	16.00/6.00/3.30	29.6/13.6/9.7	1460/980/730	87.0/81.0/81.0	0.90/0.81/0.63	90	1.8/1.6/0.95	8.0/7.5/5.5
YDT200L-4/6/8	22.00/8.00/4.50	40.6/17.8/13.2	1460/980/730	87.1/82.0/82.0	0.90/0.82/0.62	90	1.8/1.6/0.95	8.0/7.5/5.5
YDT225S-4/6/8	28.00/10.00/5.50	53.3/21.1/13.4	1470/980/740	89.0/83.0/85.0	0.88/0.85/0.70	92	1.8/1.7/1.1	8.0/7.5/5.5
YDT225M-4/6/8	34.00/12.00/7.50	63.1/24.7/17.2	1470/980/740	89.0/83.0/87.0	0.89/0.86/0.74		1.8/1.7/1.1	8.0/7.5/5.5
YDT250M-4/6/8	44.00/15.50/10.00	78.1/32.1/22.6	1475/985/740	90..0/85.0/88.0	0.92/0.85/0.75		1.8/1.7/1.1	8.0/7.5/5.5
YDT280S-4/6/8	55.00/18.00/12.00	98.5/37.0/27.3	1480/990/740	90.0/85.0/88.0	0.92/0.85/0.74		1.8/1.7/1.1	8.0/7.5/5.5
YDT280M-4/6/8	66.00/21.00/15.00	116.9/42.5/32.8	1480/990/740	91.0/86.0/89.0	0.92/0.86/0.76	94	1.8/1.7/1.1	8.0/7.5/5.5
YDT315S-4/6/8	75.00/27.00/19.00	136.0/55.3/43.8	1480/990/740	90.0/87.0/89.0	0.91/0.84/0.73		1.8/1.4/1.3	8.0/7.5/5.5
YDT315M-4/6/8	90.00/32.00/22.00	162.0/64.8/50.6	1480/990/740	91.0/88.0/90.0	0.91/0.84/0.72		1.8/1.4/1.3	8.0/7.5/5.5
YDT315L1-4/6/8	115.00/40.00/28.00	204.2/79.7/62.5	1480/990/740	91.0/88.0/90.0	0.91/0.85/0.74	100	1.8/1.4/1.3	8.0/7.5/5.5
YDT315L2-4/6/8	140.00/51.00/35.00	253.6/101.8/80.2	1480/990/740	92.0/89.0/91.0	0.90/0.84/0.72	100	1.8/1.4/1.3	8.0/7.5/5.5

FAQ

Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.

Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.

Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: How long is your warranty?
A: One year after receive B/L.

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

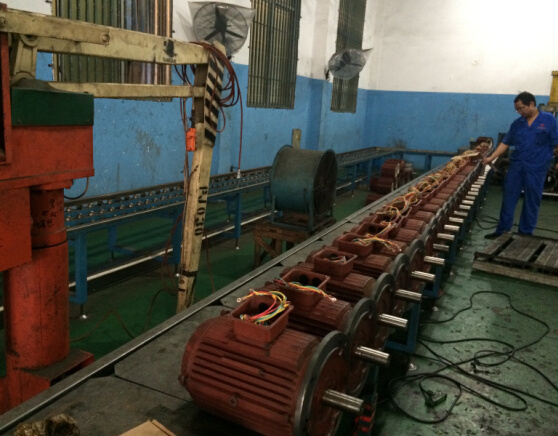

Founded in 2000, WEDO located in DAXI Town, Wenling, the country of water pumps and motors in China.

Our company is devoted to development, manufacture and sales of different types of agricultural pumps, household pumps, project construction pumps and GPD, GP Series single-phase and three-phase canned circulating electric pumps, central air-conditioning pumps, chemical canned pumps, and ship pumps...

The company owns total industrial area reaching 4000 square metres, more than 300 staff and annual revenue of 100 million RMB. With more than 2000 sales and service agencies in China,

WEDO's sales network has spread out to more than 58 countries and regions around the world as well. WEDO's trademark has also been registered patent in more than 20 countries such as Italy, Holand, Germany, Thailand, which is the best approval and award from our customers for our sincere service.

WEDO, all the time, has been trying best to be and has been the most professional and faithful manufacturer of pumps in China. If you, our friends, offer us a chance to serve you, you will find us, WEDO, your best choice.

History: 15 years professional manufacturer of water pumps and motors.

Scale: Covers a more than 40, 000 square meters working area, with more than 300 employees.

Technology: A strong team of international and professional technical engineers.

Management & QC: Technology-research and development center, test center, we test each pump and motor to guarantee the quality, including water-testing, electrical test during production and factory acceptance test when left factory.

Equipment: 6 production installation lines, 1 electrophoresis automatic production line, and 3 set inserting winding production line, 260 skilled workers are expert in assembling exported products.

Production Capacity: 300, 000 PCS/year.

Marketing network: 200 cities of over 300 wholesales, more than 2000 dealers in domestic exported to Europe and America, Southeast Asia and Africa, etc.

Certificates: ISO9001: 2000 quality system authentication and CCC, CE certification authority.
